Display Item List

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.

Normal: If any problems were not found in the past, CAN status indicates 0. In case of operating properly at the present in spite of having problem in the past, then CAN status indicates 39-1.
Malfunction: If there is a malfunction, CAN indicates 40.

After returning to normal condition, every time ignition switch is turned OFF from ON, the indication will change like 39 --> 38 --> 37... 1. And if a malfunction is detected again, CAN status indicates 40. (Though returning to the normal condition, 0 is not indicated. To reset, select and press the ERASE on the SELF-DIAGNOSIS screen.)

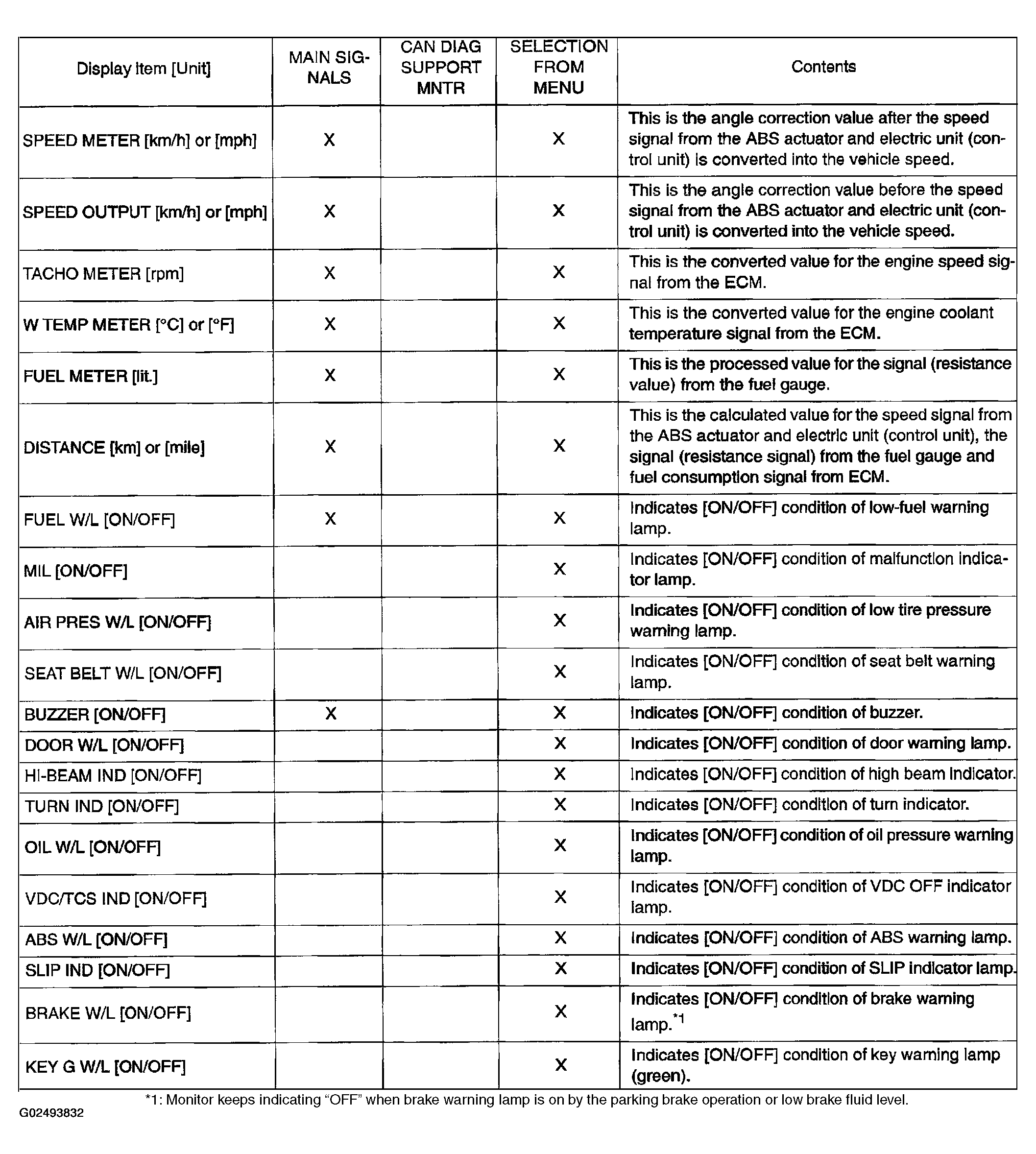

Fig 1: Describing Supported Functions For CONSULT-II (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

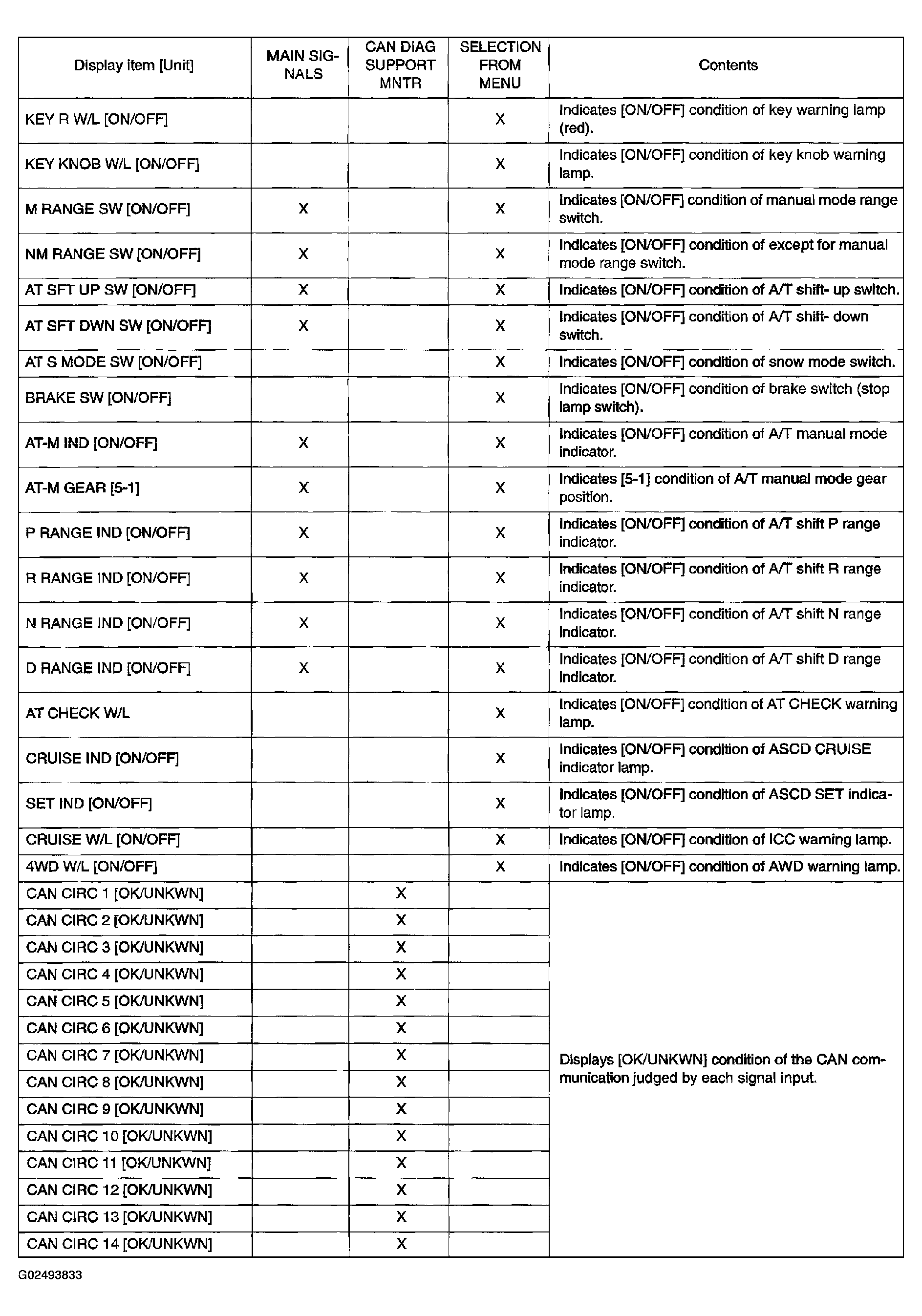

Fig 2: Describing Supported Functions For CONSULT-II (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

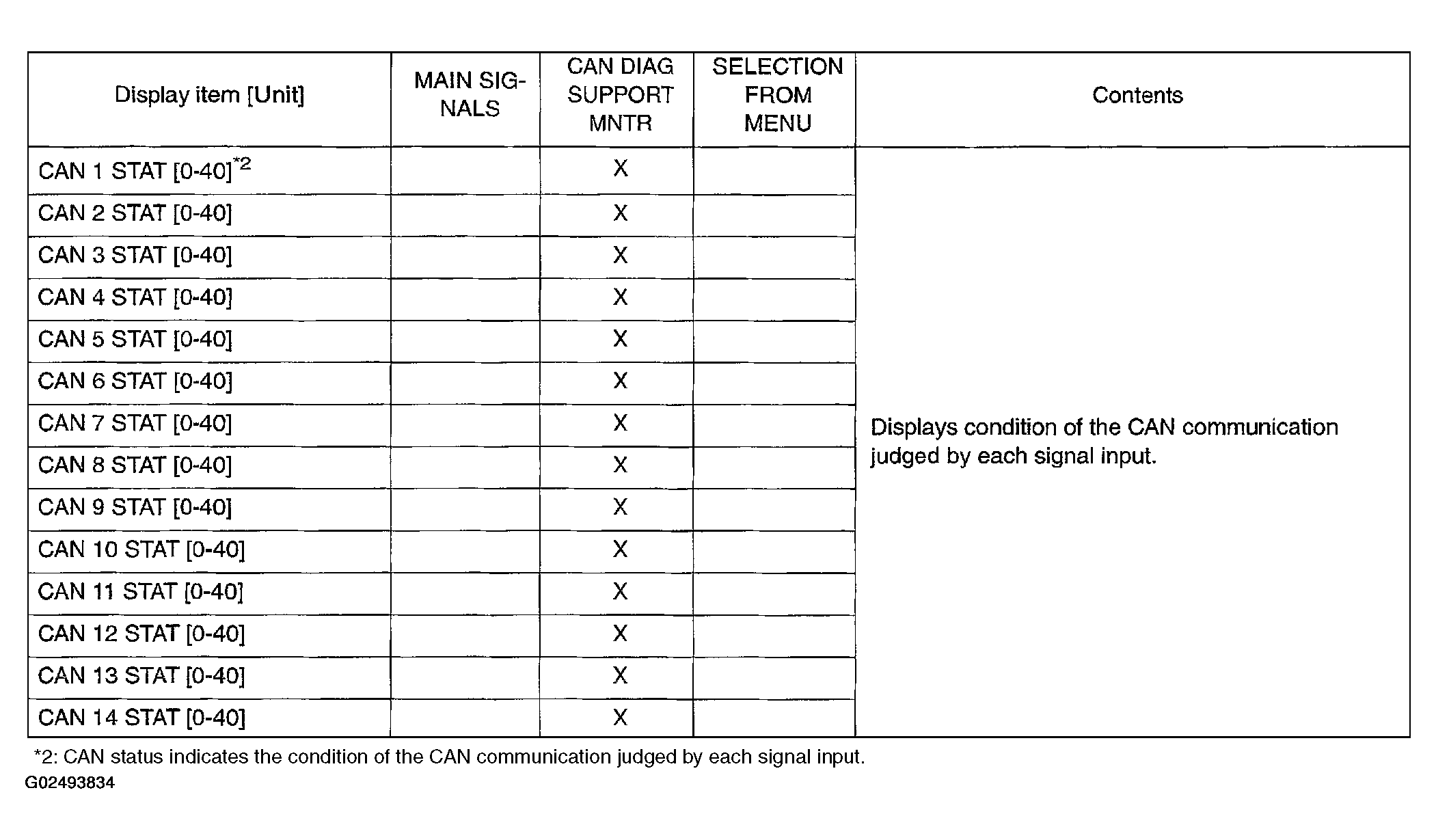

Fig 3: Describing Supported Functions For CONSULT-II (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
