ODO/Trip Meter and Illumination Control Switch Inspection

1. Remove ODO/trip meter and illumination control switch. Refer to REMOVAL AND INSTALLATION OF ODO/TRIP METER AND ILLUMINATION CONTROL SWITCH  .
2. Check continuity between ODO/trip meter and illumination control switch harness connector terminals 25, 26, 35 or 36 and 27.

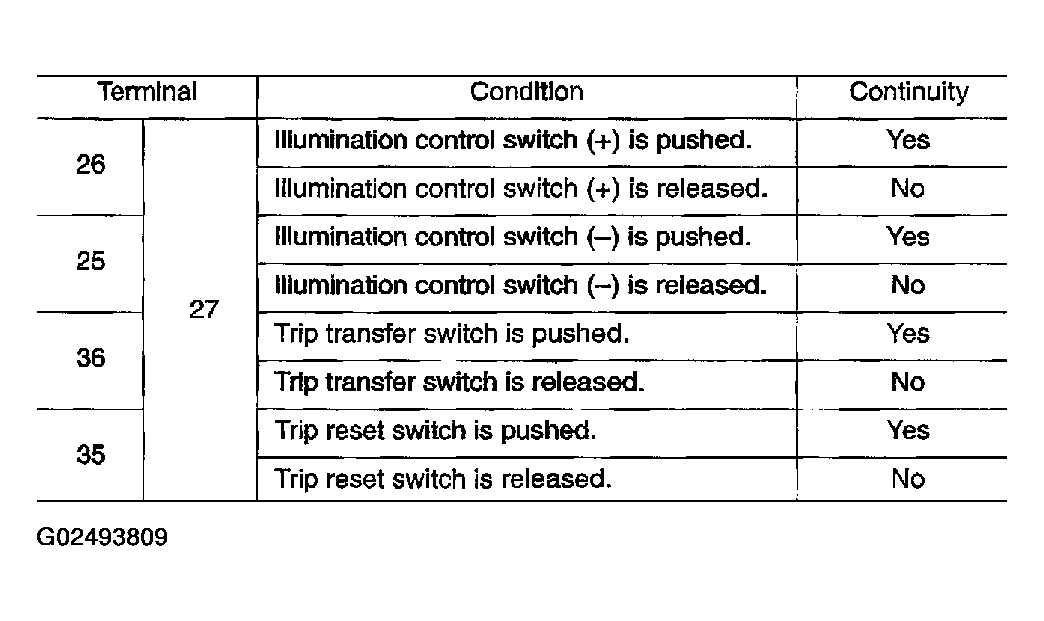

   Fig 1: Identifying Specifications For Step 2 Testing Procedures

   Courtesy of NISSAN MOTOR CO., U.S.A.

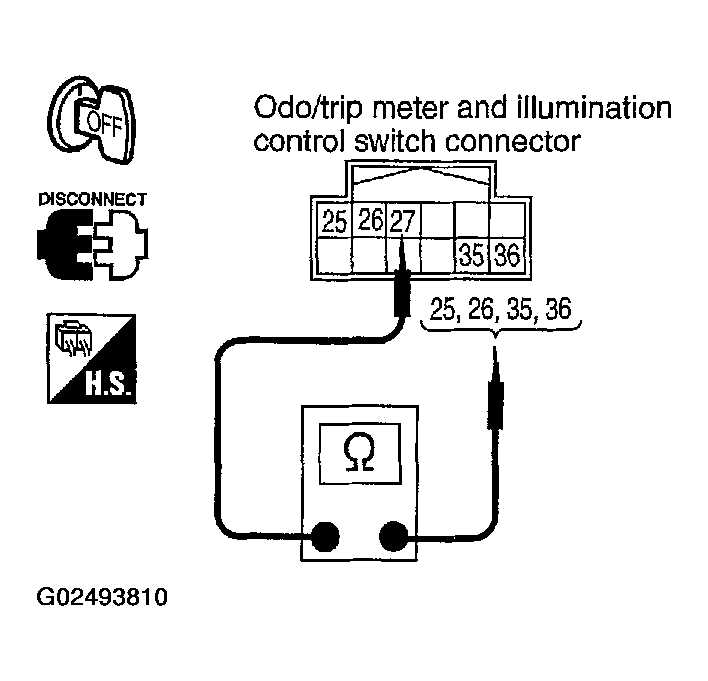

   Fig 2: Identifying Step 2 Testing Procedures

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Replace combination meter.
2. NG: Replace ODO/trip meter and illumination control switch.
