Home >> Infiniti >> 2004 >> FX35 AWD >> Repair and Diagnosis >> Electrical >> Charging Systems >> Generators & Regulators >> Overhaul >> FX45

Generators & Regulators: Overhaul: FX45

For overhaul, see Fig 1 .

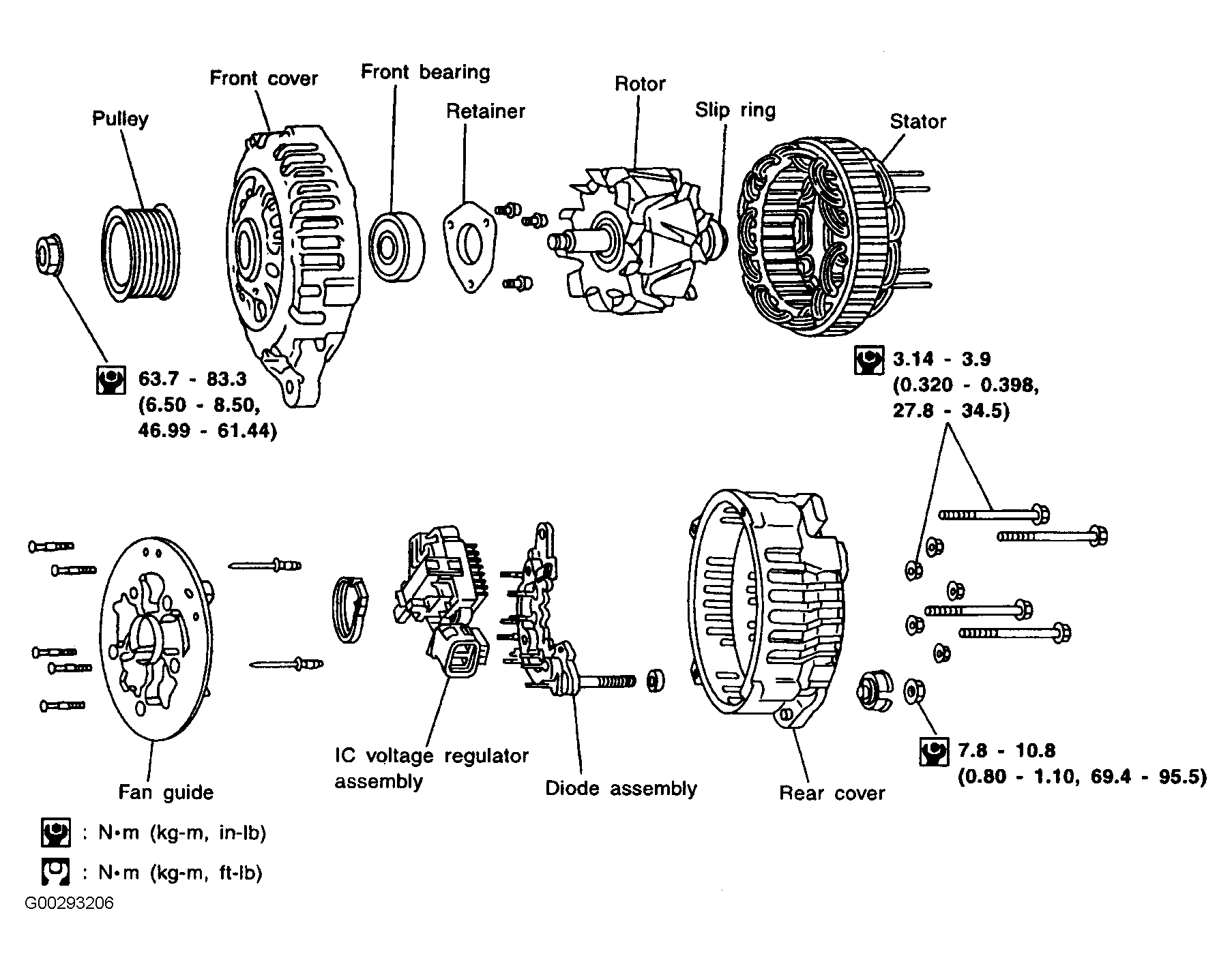

Fig 1: Exploded View Of Generator (FX45)
G00293206Courtesy of NISSAN MOTOR CO., U.S.A.
