Low Tire Pressure Warning Control Unit Connector End View (M74)

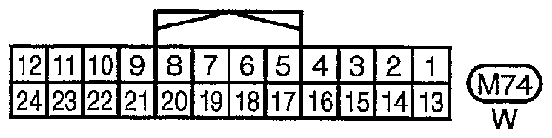

Fig 1: Low Tire Pressure Warning Control Unit Connector End View (M74)

G10819416

Courtesy of NISSAN NORTH AMERICA, INC.
