Terminal and Reference Value for Front Power Window Switch (Passenger Side) - With Front Power Window Anti-pinch System

NOTE: For System Wiring Diagrams, see FX35 SYSTEM WIRING DIAGRAMS or FX45 SYSTEM WIRING DIAGRAMS .

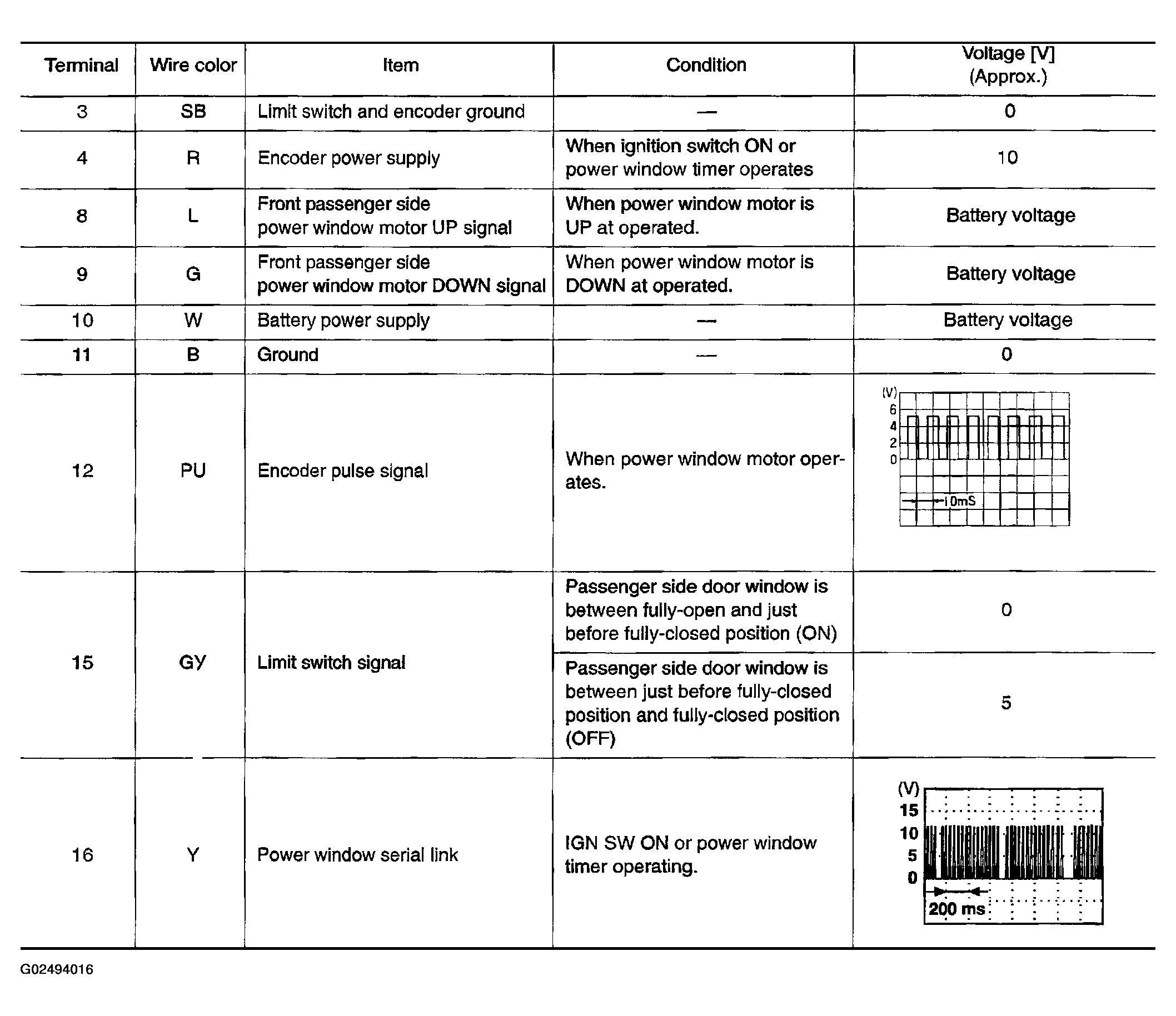

Fig 1: Passenger Side Power Window Switch Terminal Specifications (W/Front Power Window Anti-Pinch System)

Courtesy of NISSAN MOTOR CO., U.S.A.
