Trouble Diagnosis Chart By Symptom

NOTE:
  • Always check the "Work Flow" before troubleshooting. Refer to "WORK FLOW  ".
  • Always check key fob battery before replacing key fob.

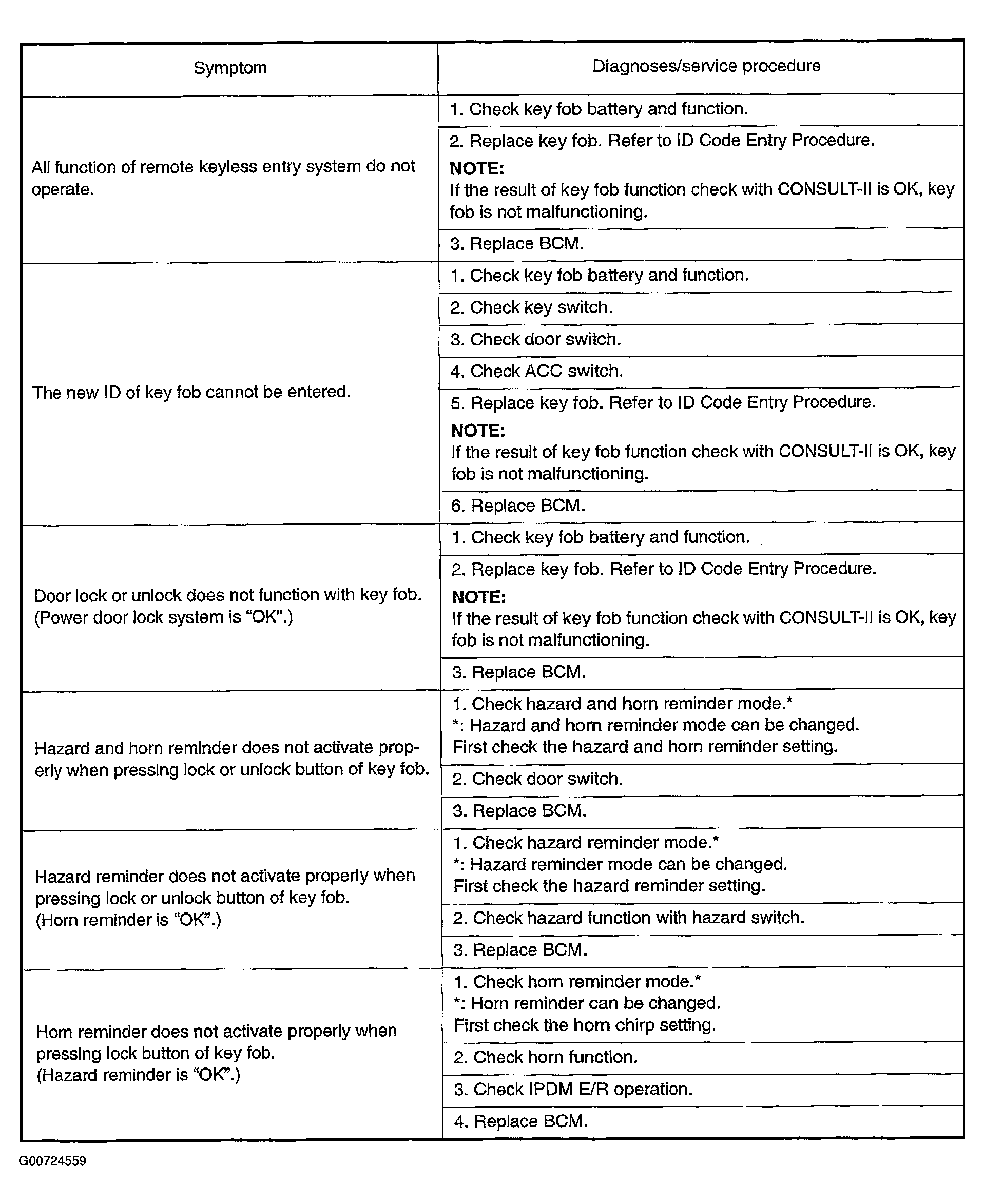

Fig 1: Trouble Diagnosis Chart (1 Of 2)
G00724559Courtesy of NISSAN MOTOR CO., U.S.A.

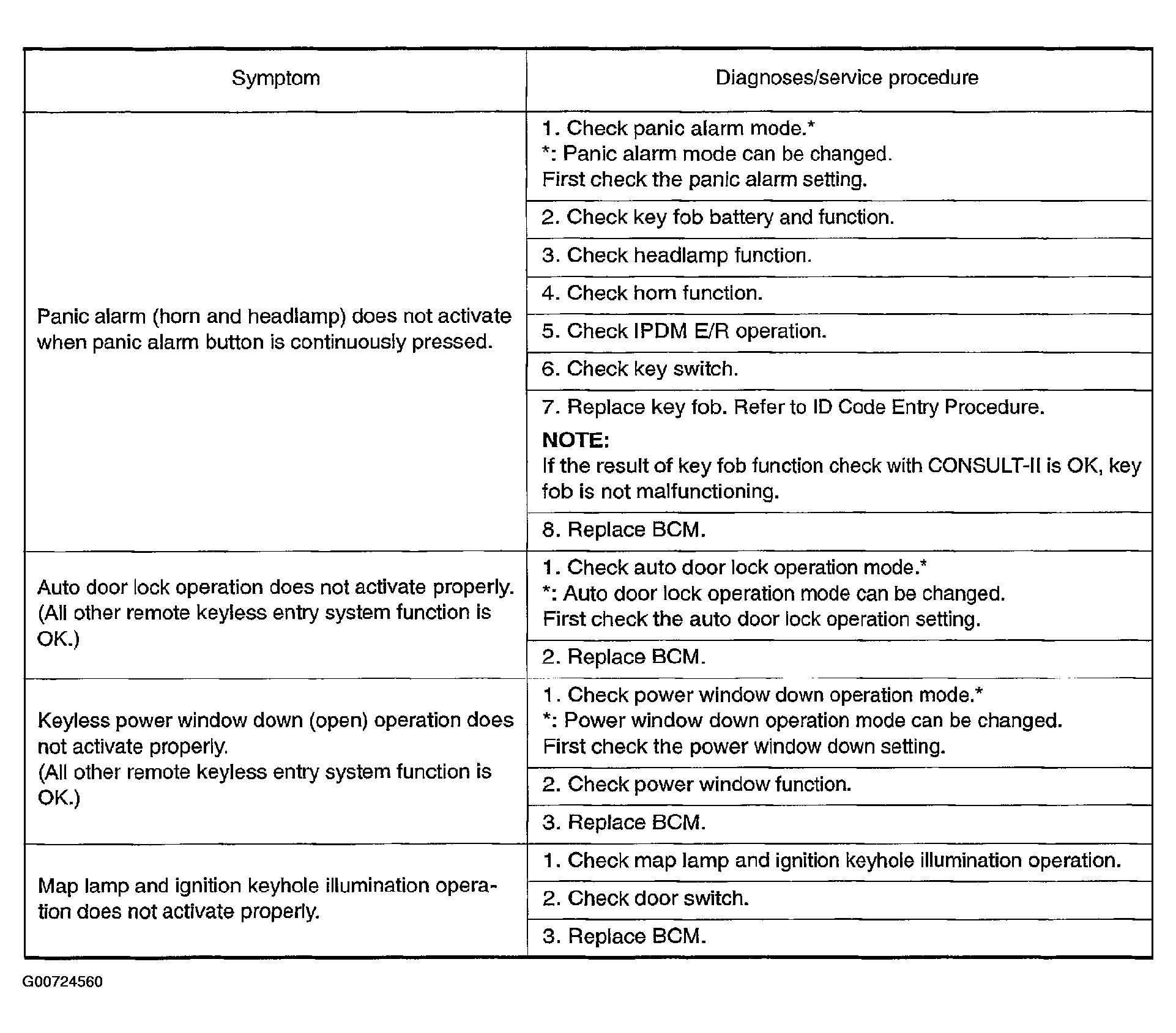

Fig 2: Trouble Diagnosis Chart (2 Of 2)
G00724560Courtesy of NISSAN MOTOR CO., U.S.A.
