Trouble Diagnosis - Specification Value
>>
Diagnostic Procedure
Diagnostic Procedure

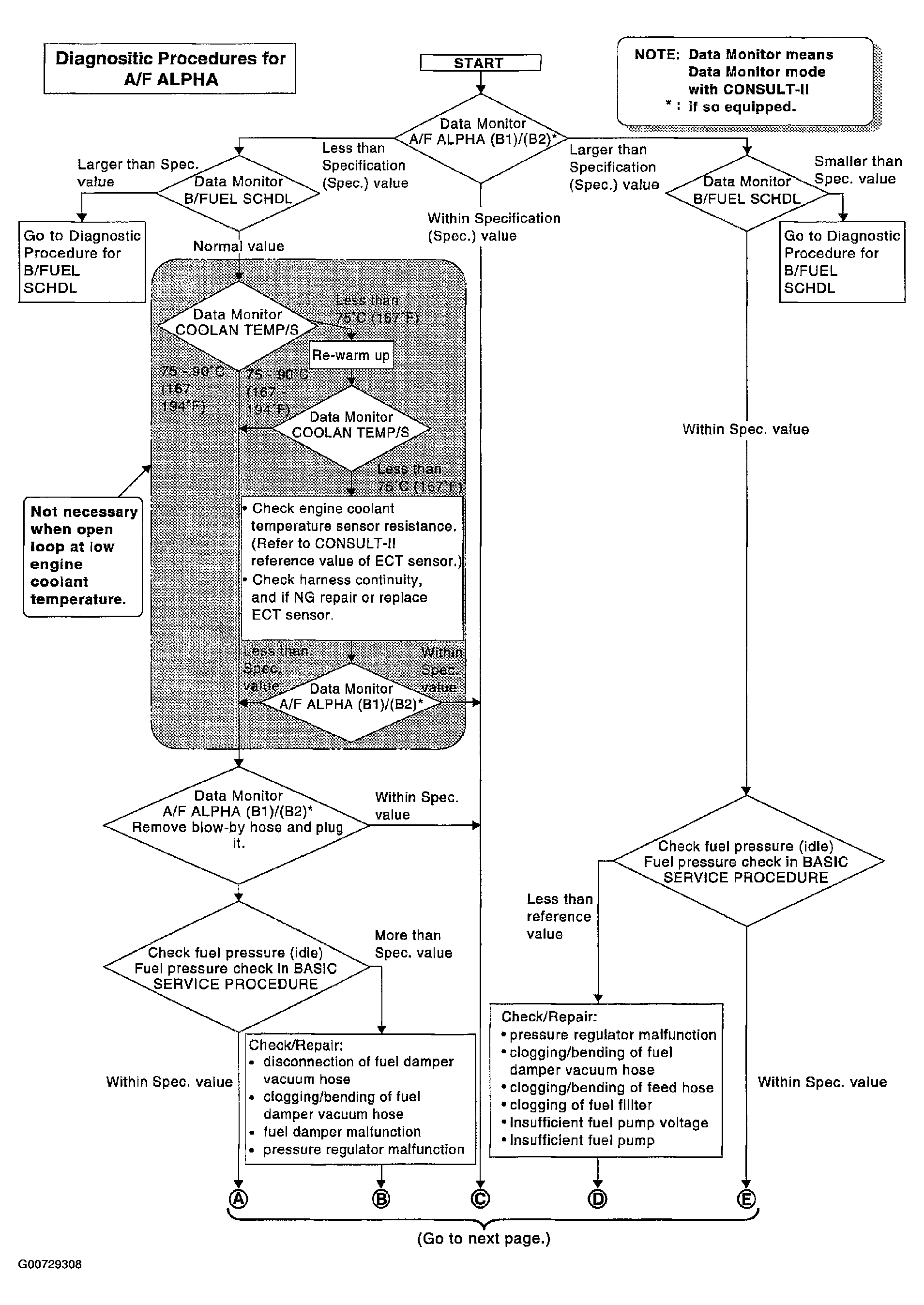

Fig 1: Identifying A/F Alpha Diagnostic Procedure Work Flow (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

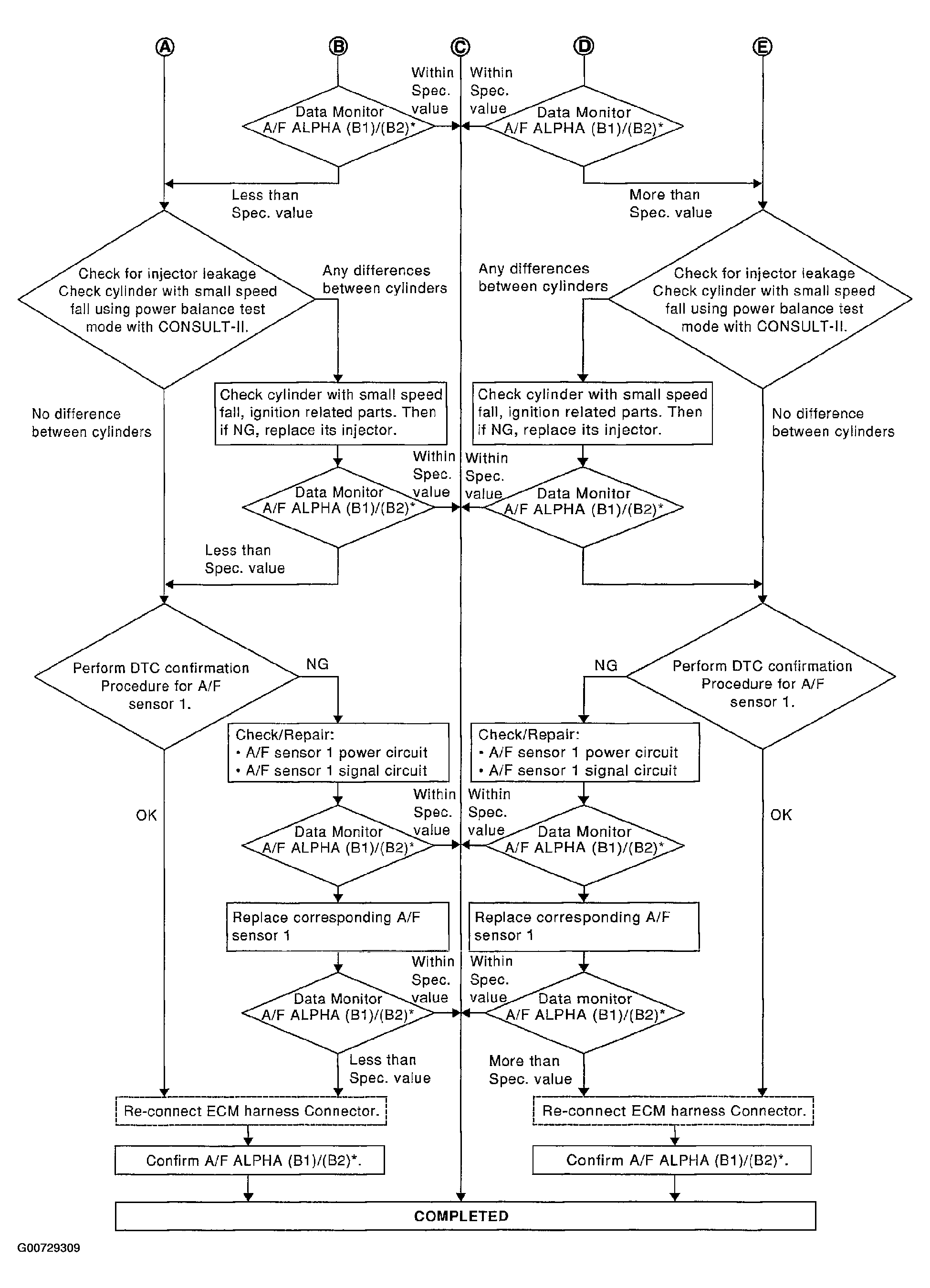

Fig 2: Identifying A/F Alpha Diagnostic Procedure Work Flow (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

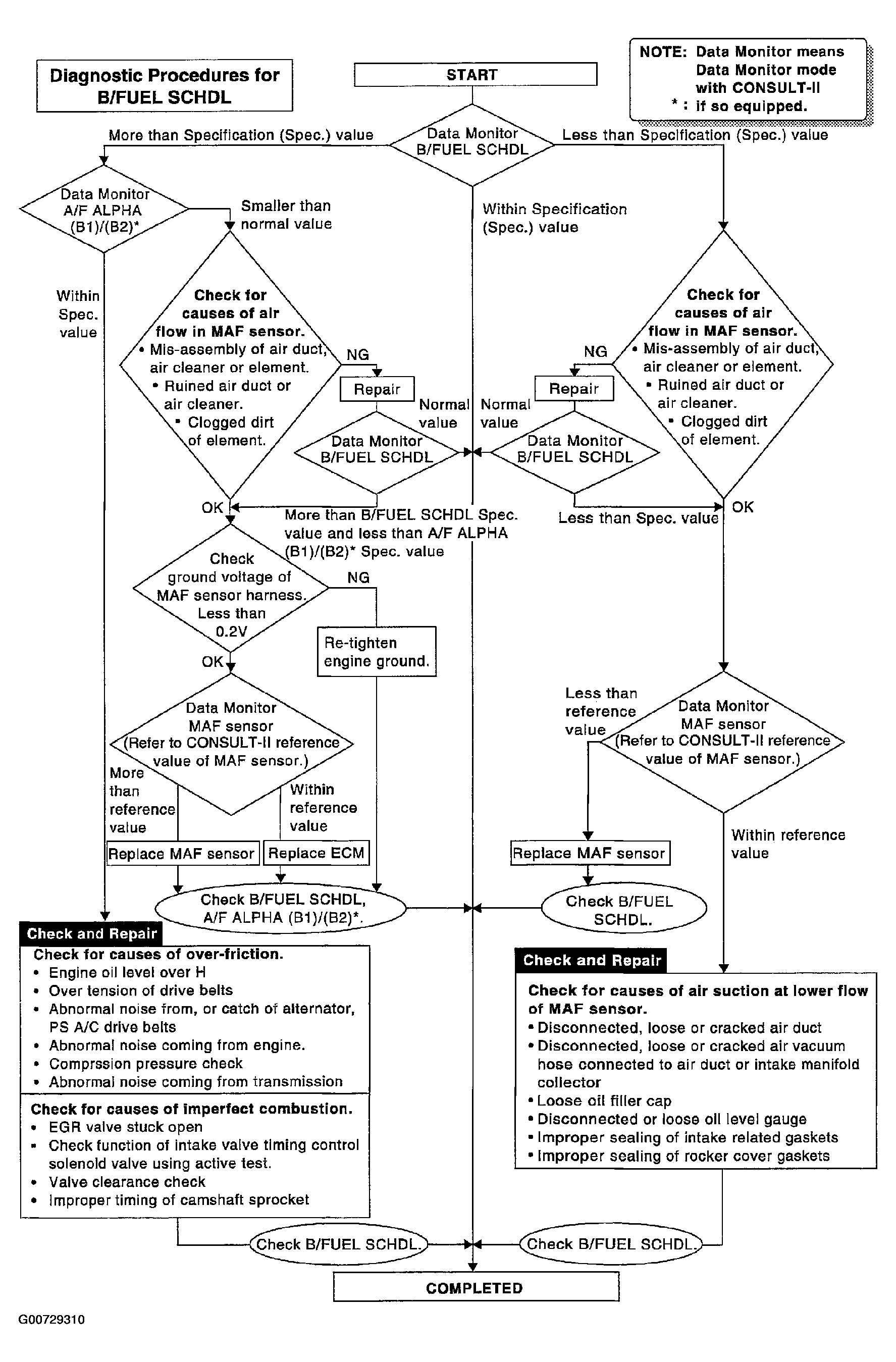

Fig 3: Identifying B/Fuel SCHDL Diagnostic Procedure Work Flow
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
