Terminals And Reference Value For Steering Lock Unit

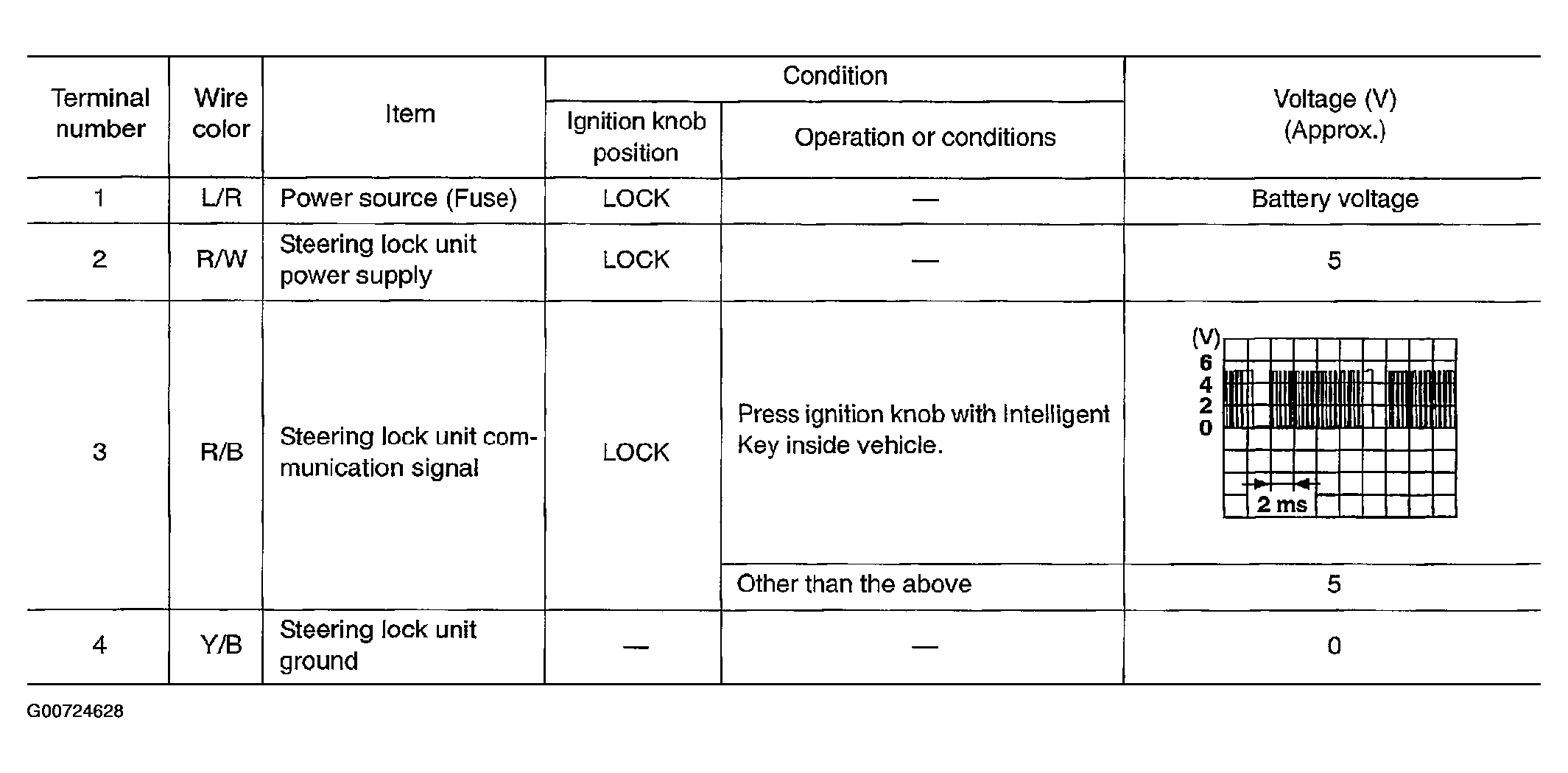

Fig 1: Terminals And Reference Value For Steering Lock Unit

G00724628

Courtesy of NISSAN MOTOR CO., U.S.A.
