Removal And Installation: Removal

  1. Remove exhaust front and rear tubes. Refer to EXHAUST SYSTEM .
  2. Remove front and rear propeller shaft. Refer to REMOVAL AND INSTALLATION .
  3. Insert plug into rear oil seal after removing propeller shaft.
    • Be careful not to damage spline, sleeve yoke and rear oil seal, when removing propeller shaft.
  4. Disconnect neutral-4LO switch, front revolution sensor, ATP switch, transfer motor and 4WD shift switch harness connectors.

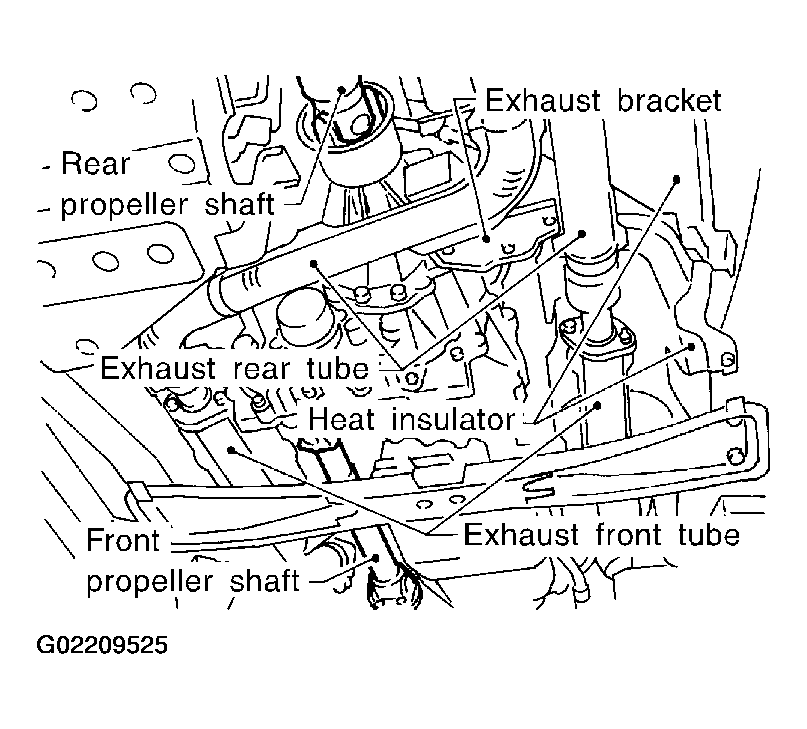

    Fig 1: Removing Exhaust Front And Rear Tubes
    G02209525Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove center console and A/T control device.
  6. Remove floor panel for transfer.
  7. Remove upper side fixing bolt for A/T and TF.
  8. Remove actuator lever from transfer outer shift lever and remove sub-oil pump from transfer.
  9. Remove remaining fixing bolt for AT and TF.

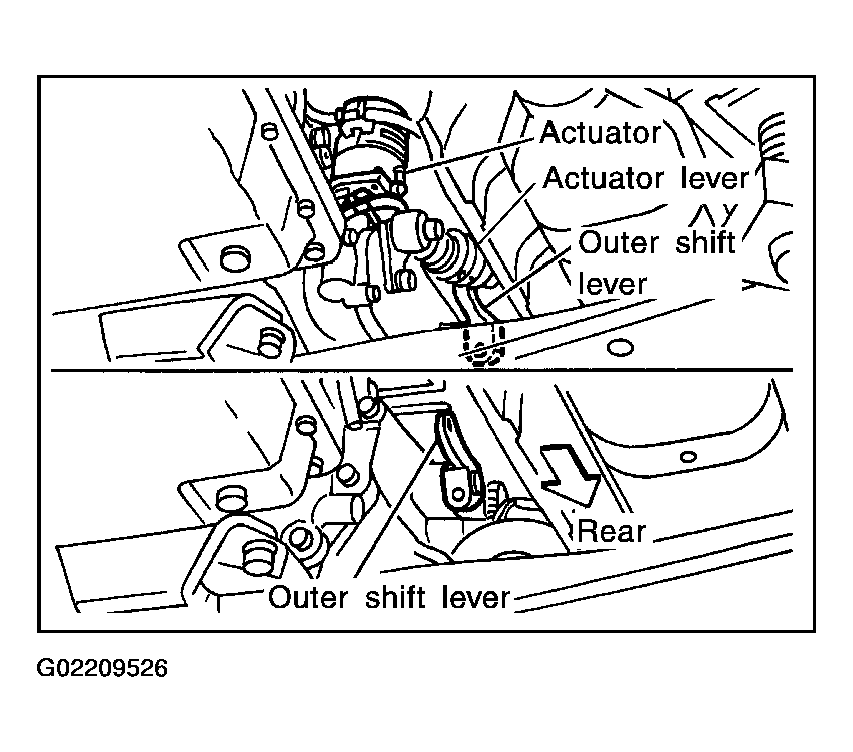

    Fig 2: Removing Actuator Lever From Transfer Outer Shift Lever
    G02209526Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove transfer from transmission.
WARNING: Support transfer while removing it.

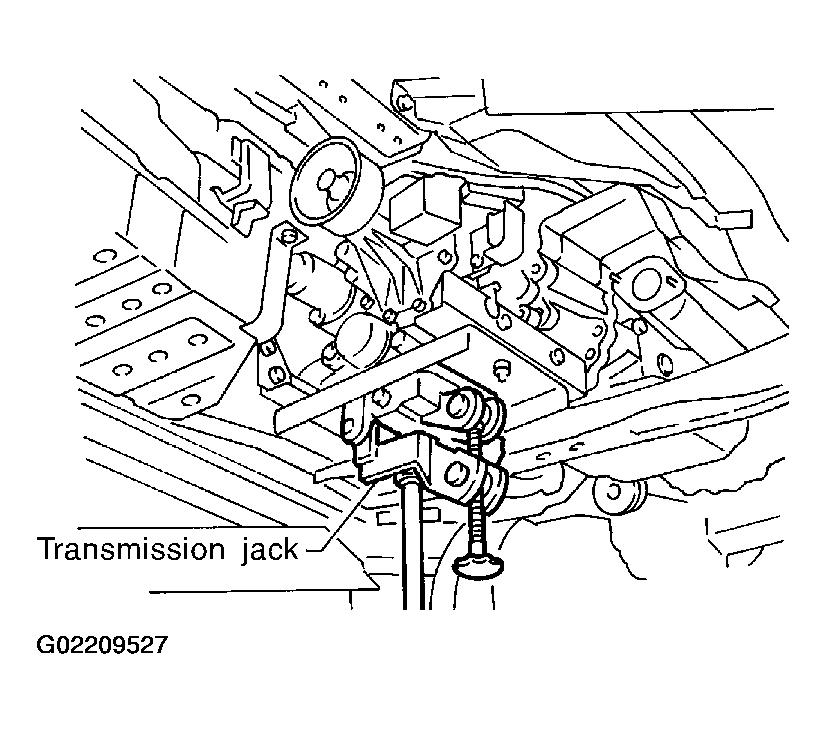

Fig 3: Supporting Transmission
G02209527Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Removing Transfer From Transmission
G02209528Courtesy of NISSAN MOTOR CO., U.S.A.
