Transfer Motor: Removal

  1. Disconnect transfer motor harness connector.
  2. Remove breather pipe from transfer motor.
  3. Remove bolts to detach transfer motor.
    • After removing transfer motor, be sure to replace O-ring with new one  .

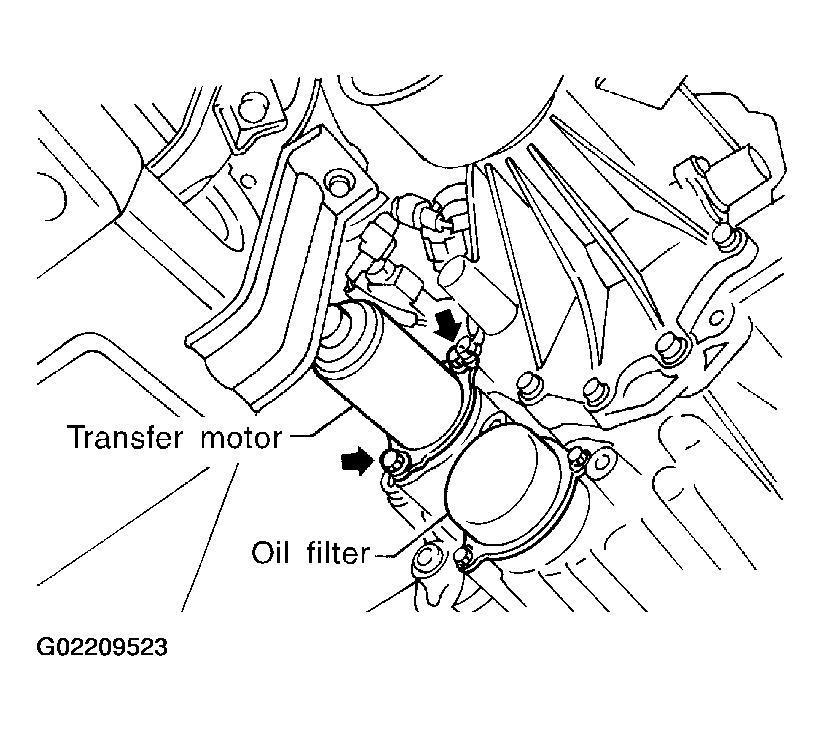

      Fig 1: Removing/Installing Transfer Motor
      G02209523Courtesy of NISSAN MOTOR CO., U.S.A.
