Home >> Infiniti >> 2003 >> QX4 RWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission Overhaul >> Repair For Component Parts >> Band Servo Piston Assembly >> Components

Band Servo Piston Assembly: Components

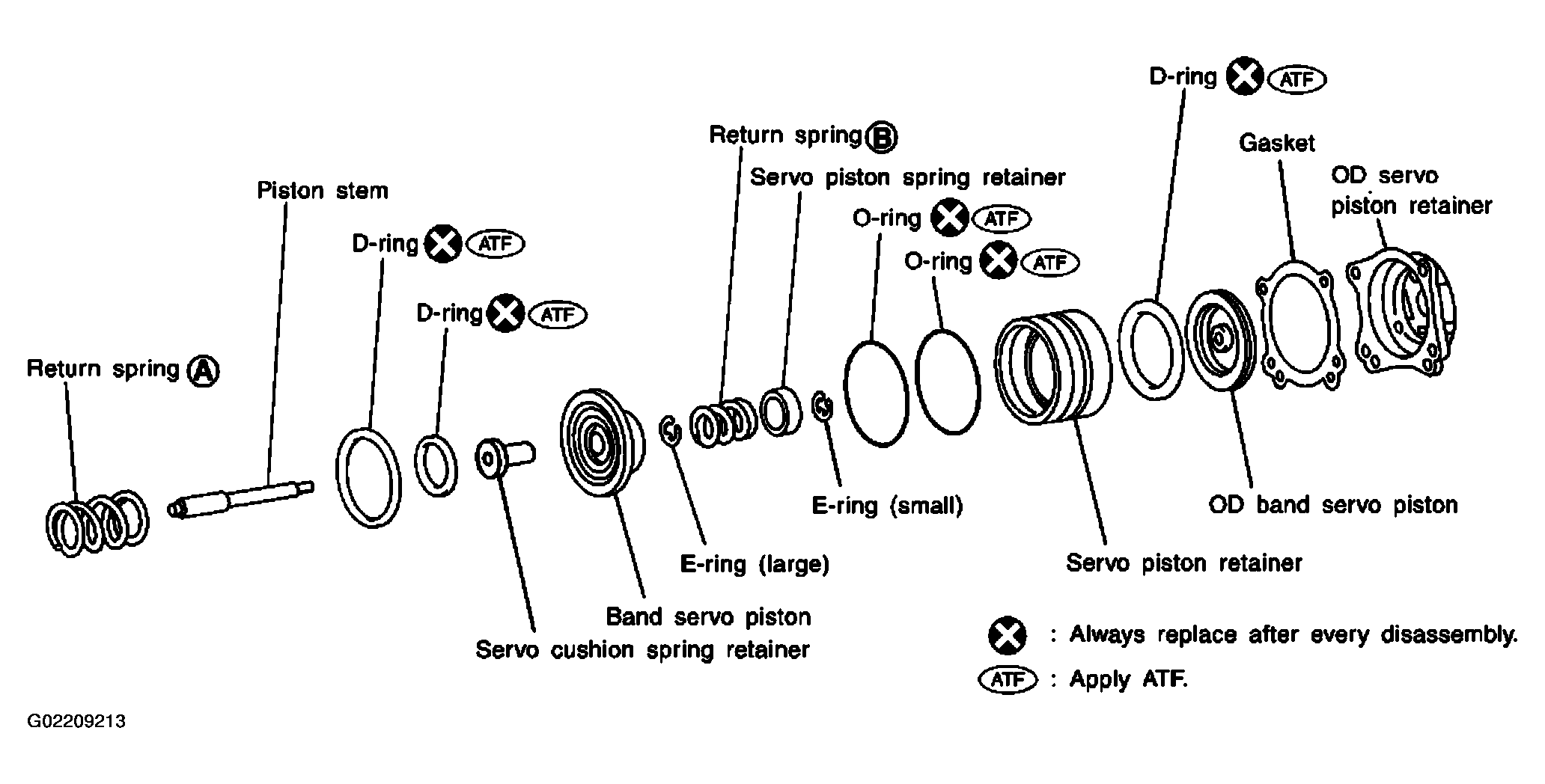

Fig 1: Identifying Band Servo Piston Assembly Components

G02209213

Courtesy of NISSAN MOTOR CO., U.S.A.
