Steering Transfer Gear: Installation

Set wheels in the straight-ahead position.
Install transfer gear assembly.

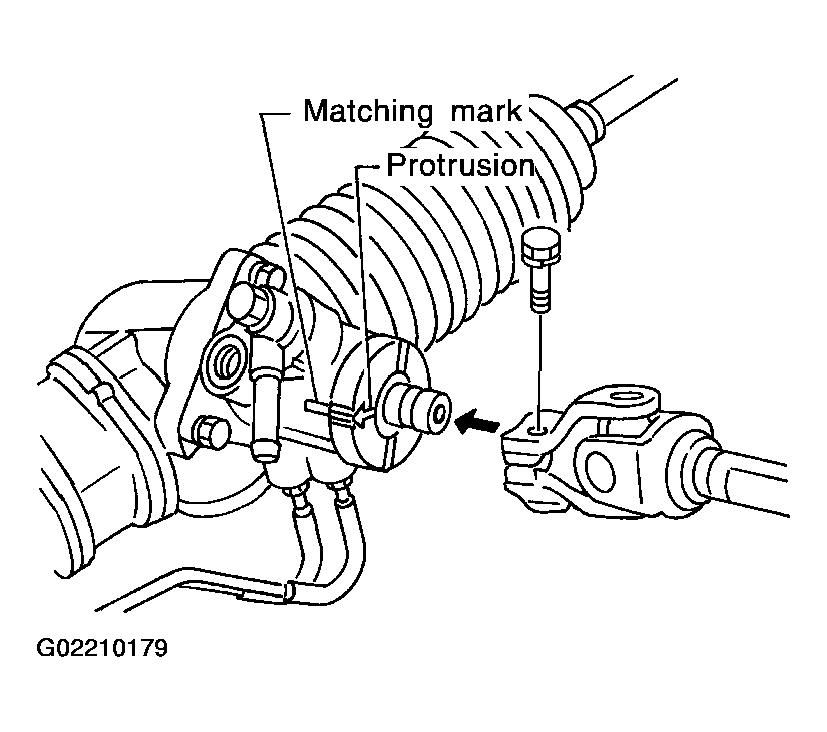

Install column lower joint while aligning groove with protrusions on the steering gear rear cover cap.
Tighten bolt while aligning groove on steering gear. Before tightening bolt, ensure it is inserted correctly.

Fig 1: Installing Column Lower Joint
Courtesy of NISSAN MOTOR CO., U.S.A.

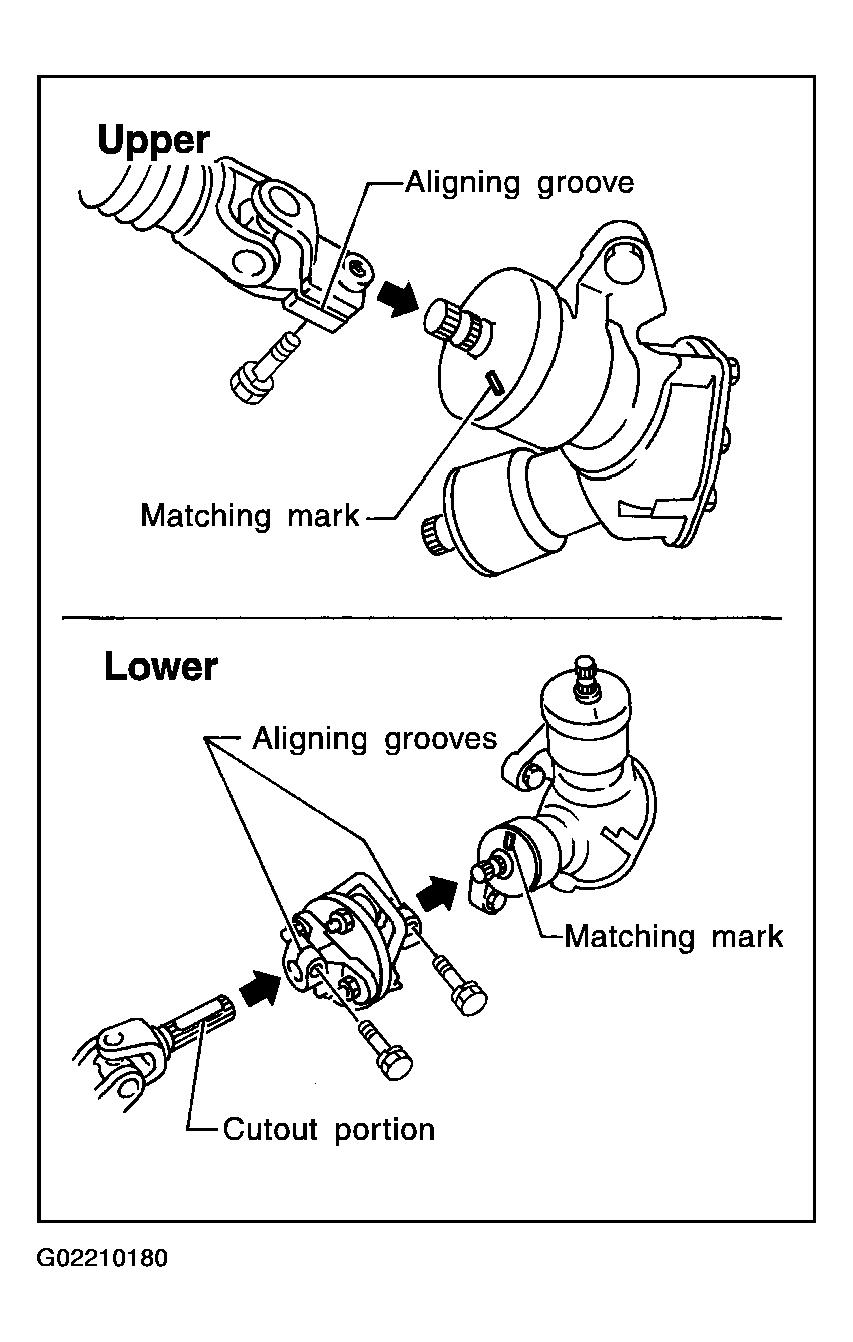

When attaching steering column upper and lower joint to transfer gear, it must be positioned as shown in figure at left.

Fig 2: Identifying Position Of Steering Column Upper And Lower Joint
Courtesy of NISSAN MOTOR CO., U.S.A.
