Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Remove cluster lid C. Refer to "CLUSTER LID C ".
Remove audio unit. Refer to "AUDIO UNIT ".
Remove the temperature control cable clamp and then remove the cable from the air mix door lever.

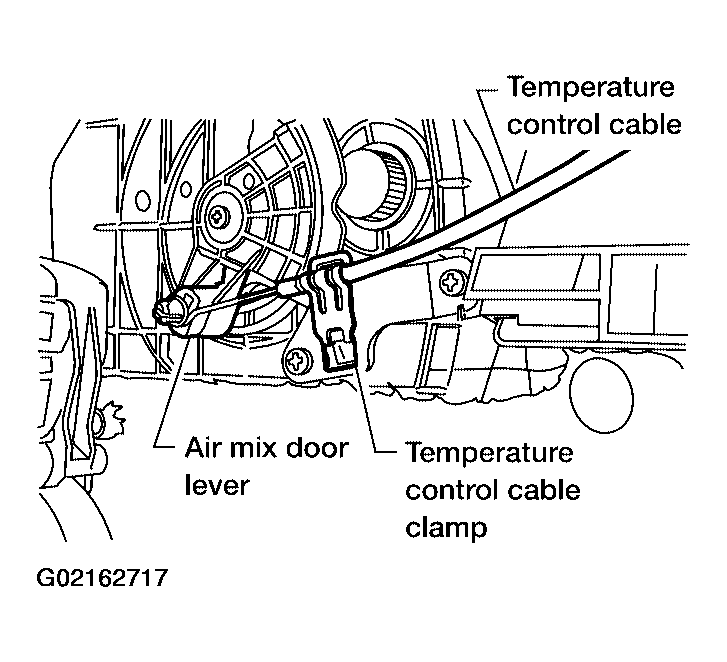

Fig 1: Removing Temperature Control Cable Clamp
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the A/C control unit screws and then remove it from the instrument panel.
Disconnect the A/C control unit connectors and then remove it.

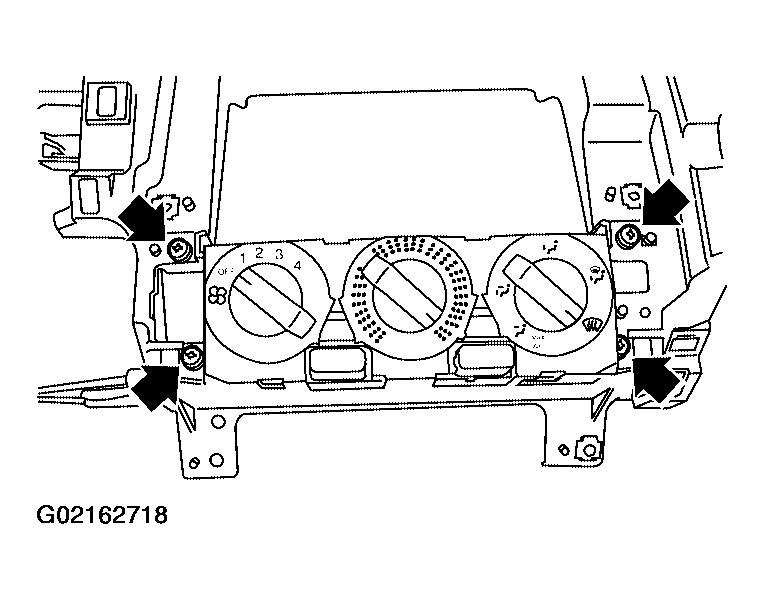

Fig 2: Removing A/C Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
