Switches And Their Control Functions

WARNING: This page is about a different car, the 2002 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

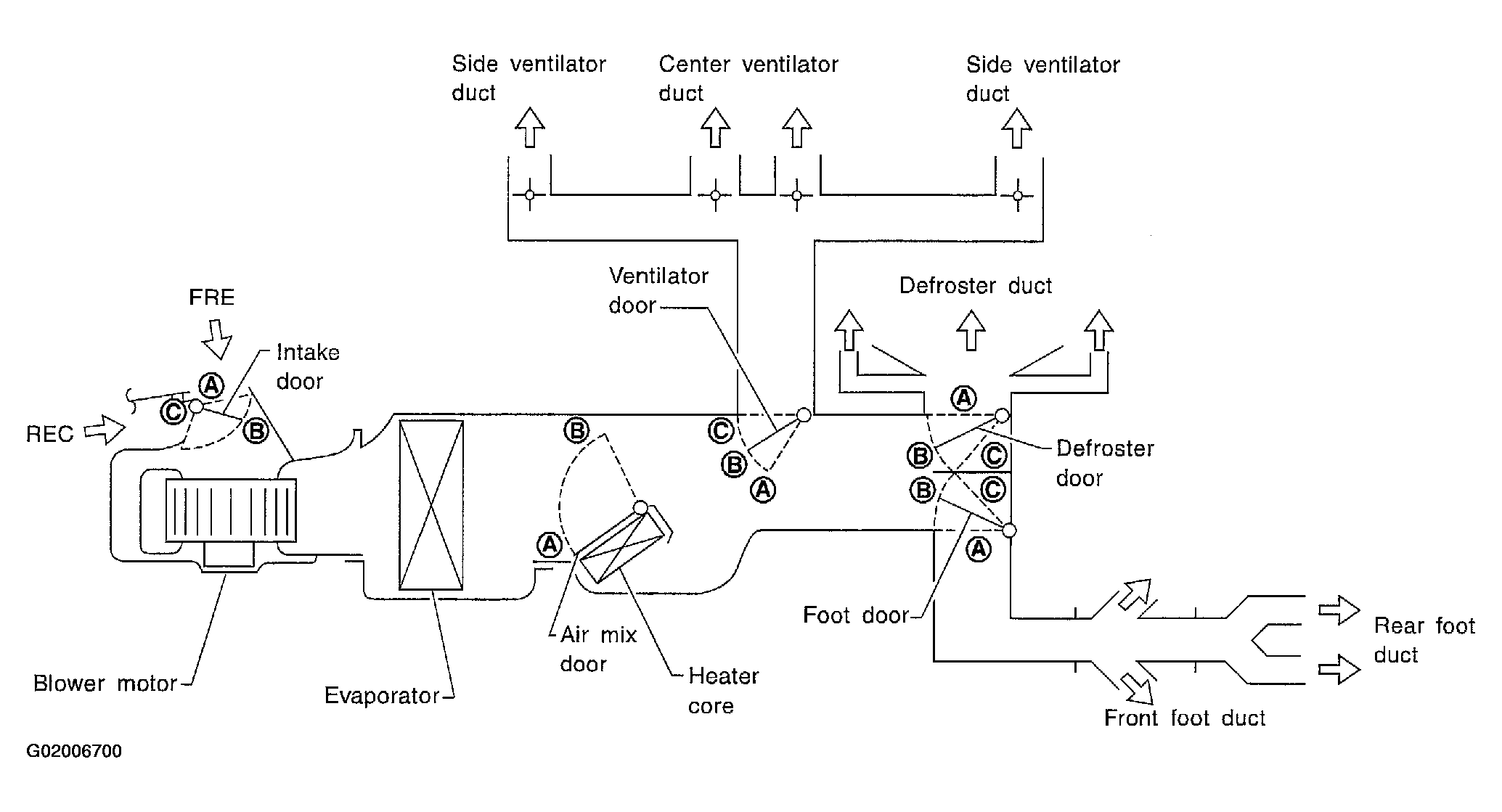

Fig 1: Identifying Switches And Their Control Functions System
G02006700Courtesy of NISSAN MOTOR CO., U.S.A.

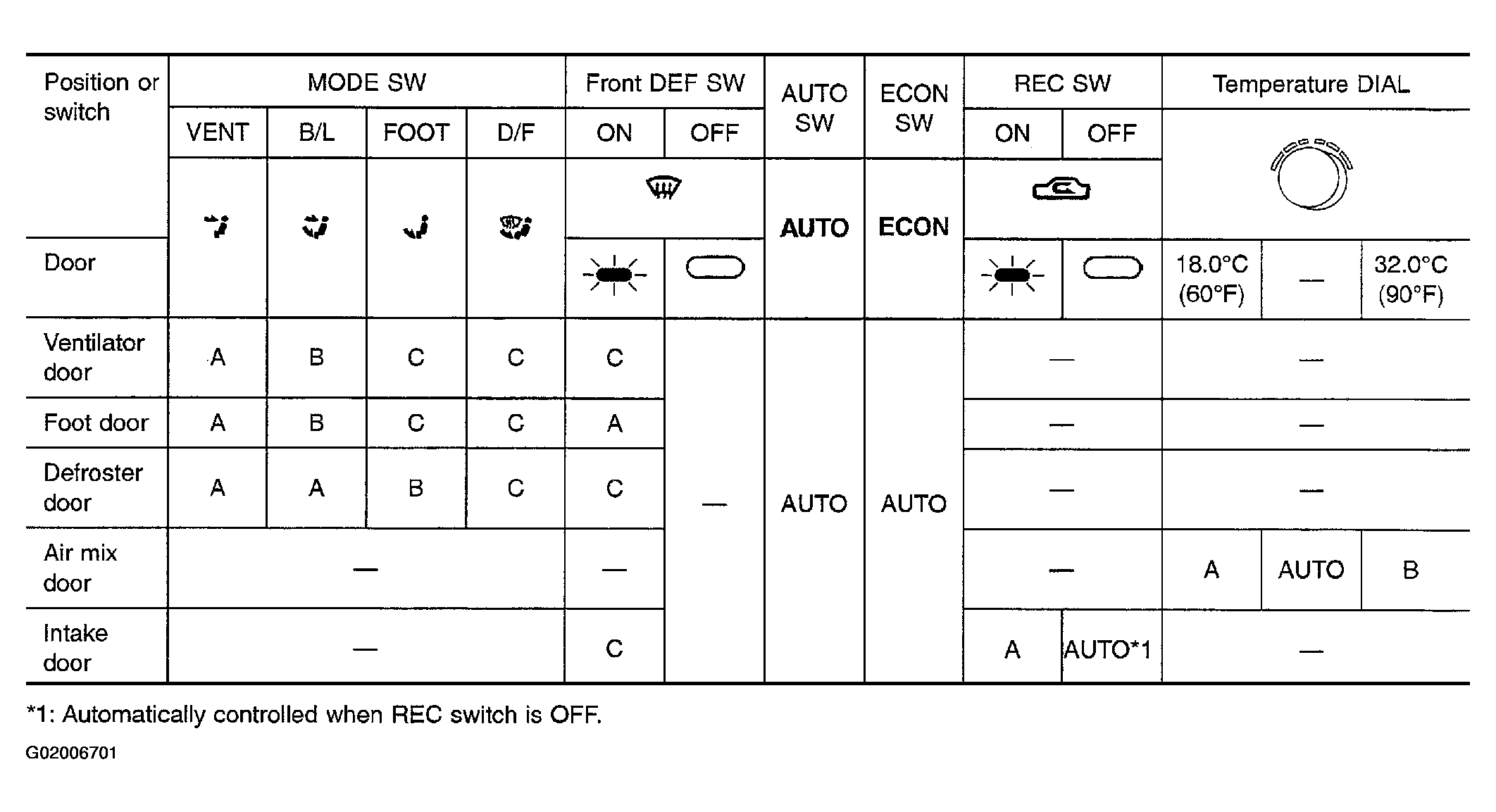

Fig 2: Switches And Their Control Functions System Table
G02006701Courtesy of NISSAN MOTOR CO., U.S.A.
