Inspection Flow

WARNING: This page is about a different car, the 2002 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

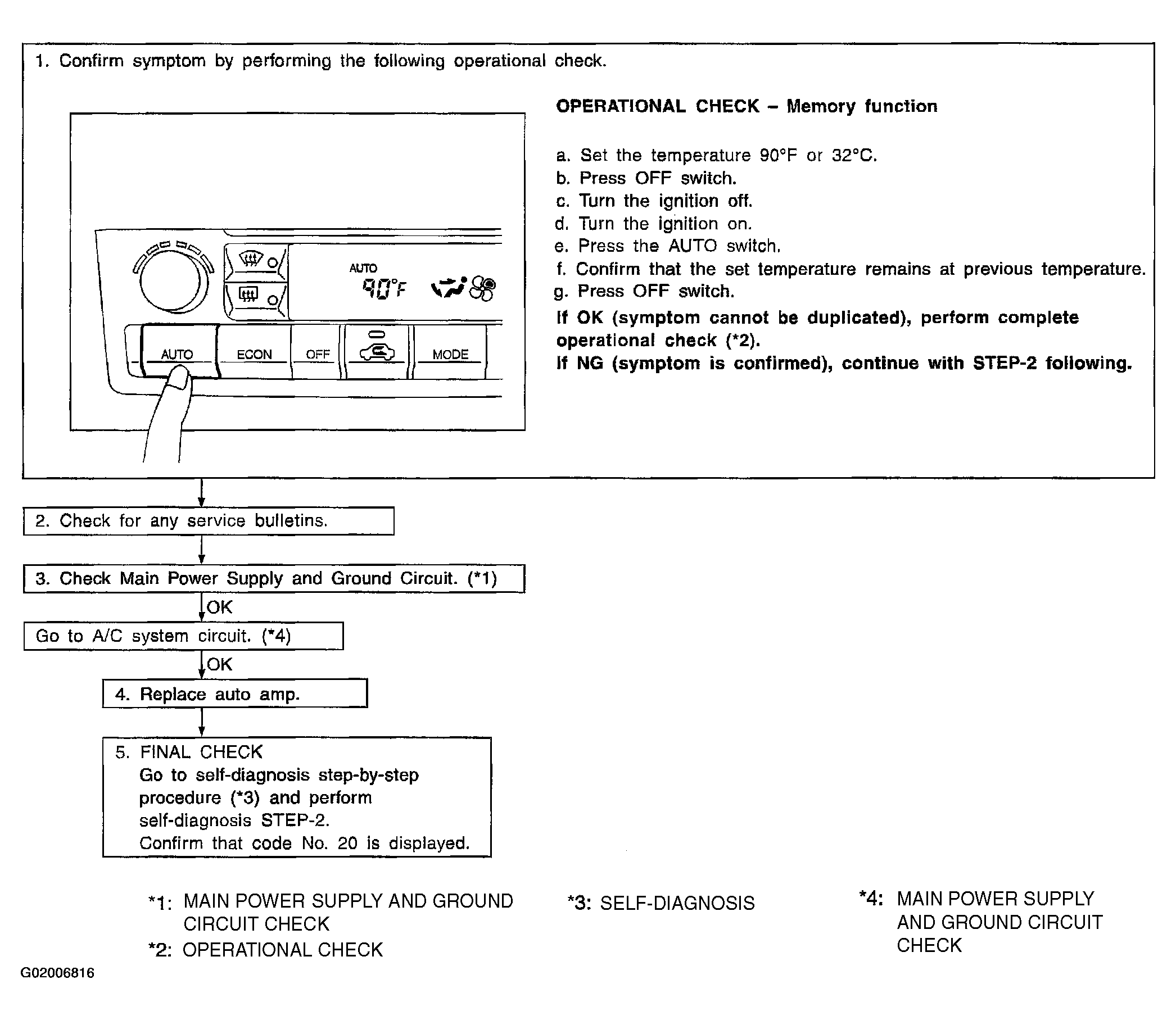

Fig 1: Memory Function Diagnosis Flow Chart
G02006816Courtesy of NISSAN MOTOR CO., U.S.A.
