Removal & Installation

NOTE: Manufacturer does not supply removal and installation procedures for QX4. See Fig 1 for removal and installation reference.

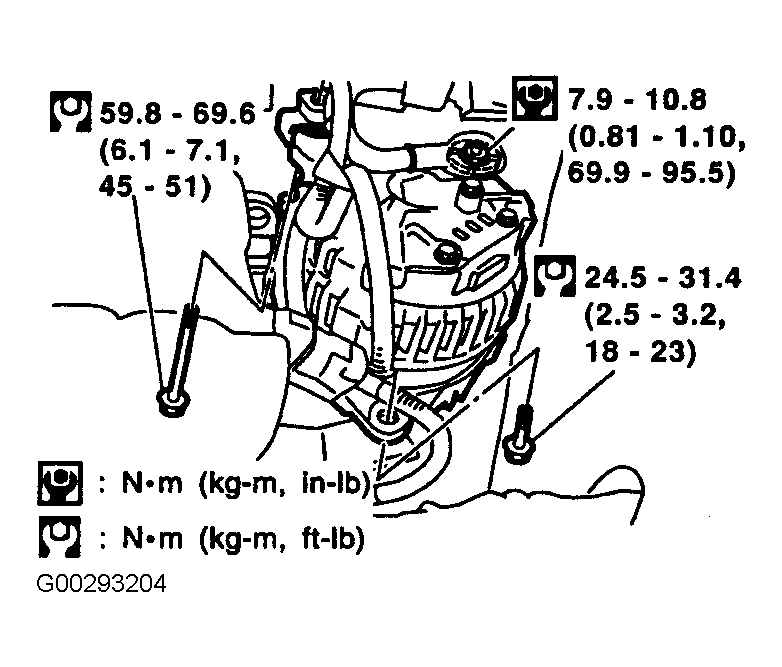

Fig 1: Removal & Installation Reference
G00293204Courtesy of NISSAN MOTOR CO., U.S.A.
