Smart Entrance Control Unit: Schematic

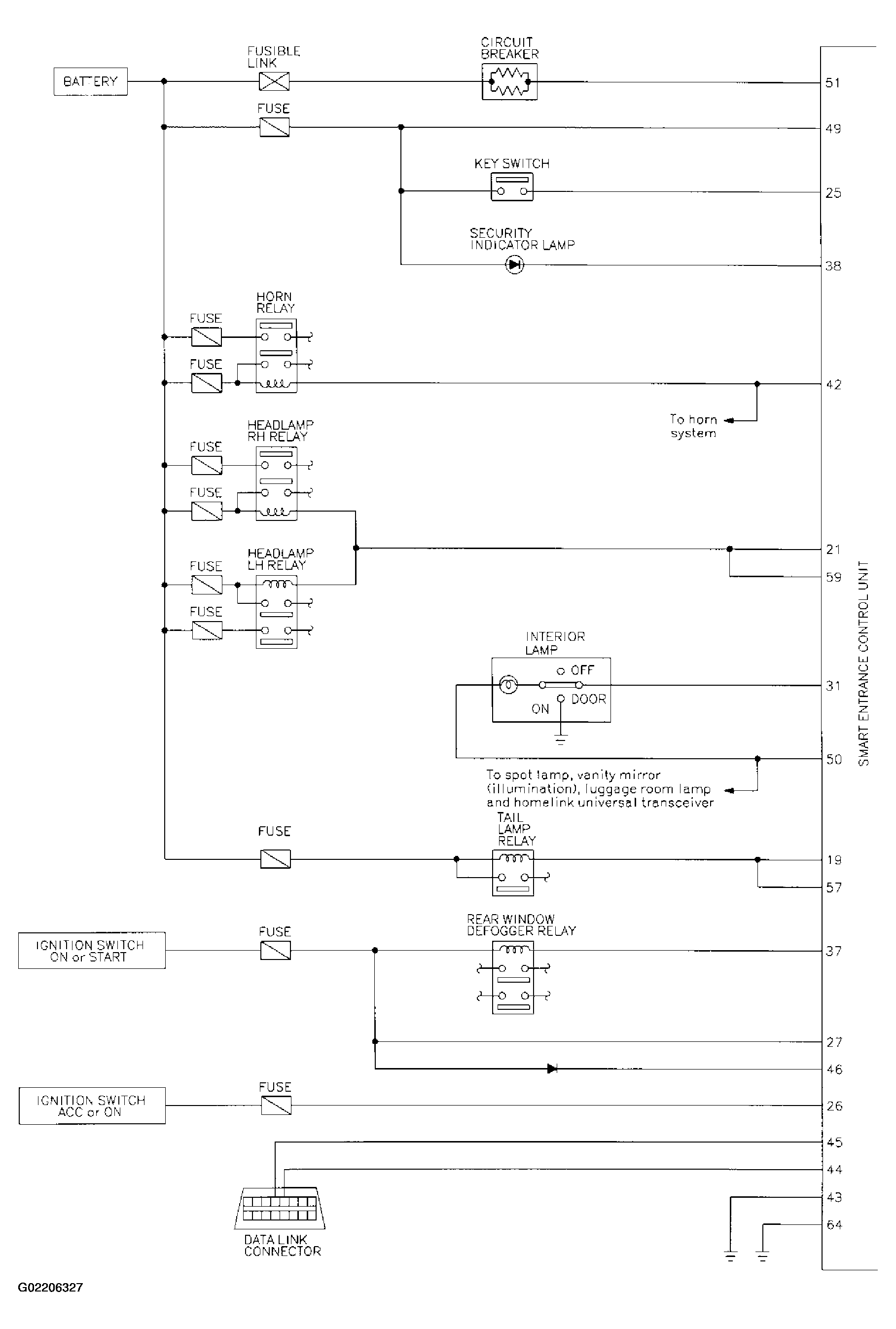

Fig 1: Schematic Diagram (1 Of 2)

G02206327

Courtesy of NISSAN MOTOR CO., U.S.A.

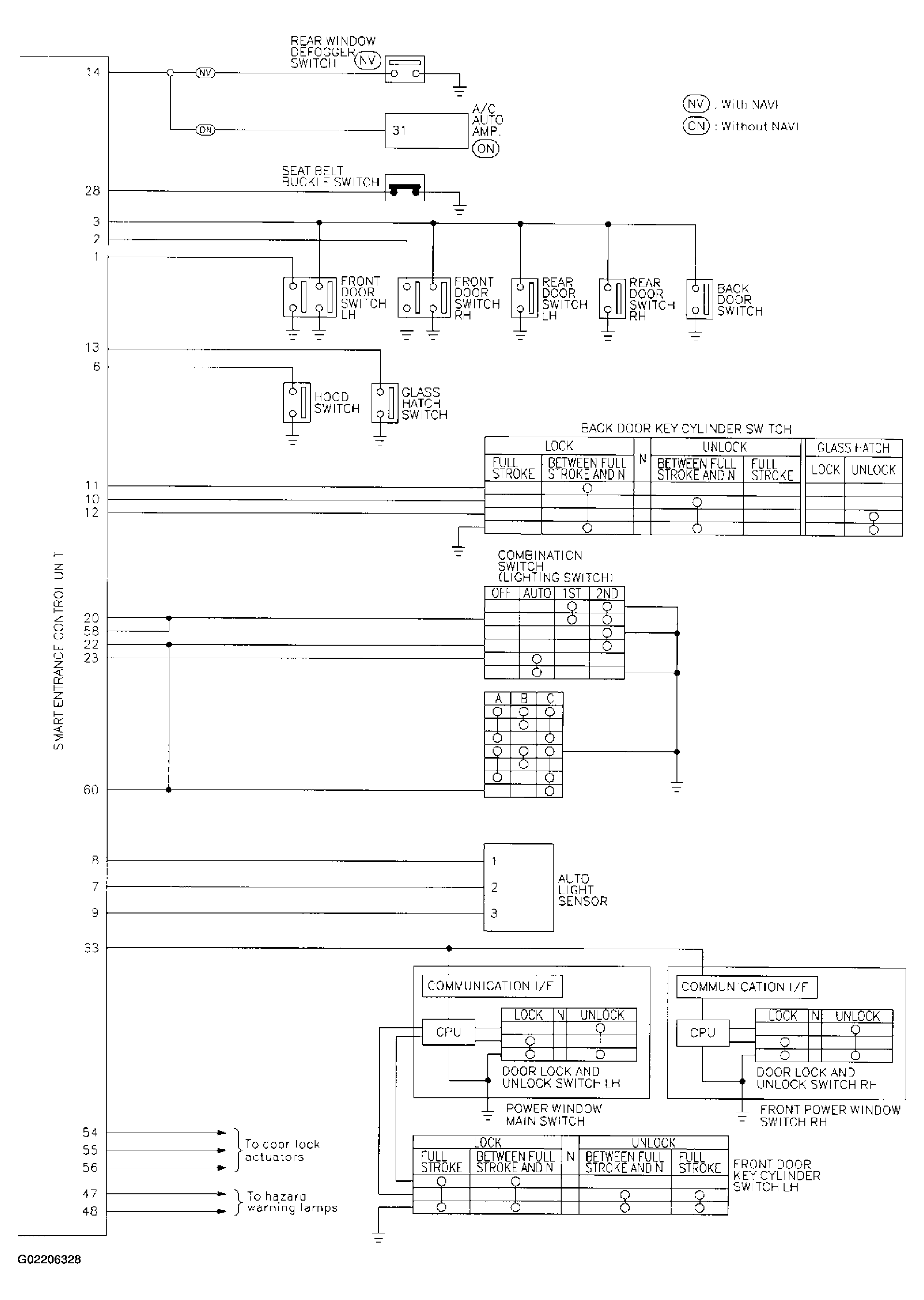

Fig 2: Schematic Diagram (2 Of 2)

G02206328

Courtesy of NISSAN MOTOR CO., U.S.A.
