Transfer Dropping Resistor
Check resistance between terminals.
Resistance: 11.2 - 12.8 ohms

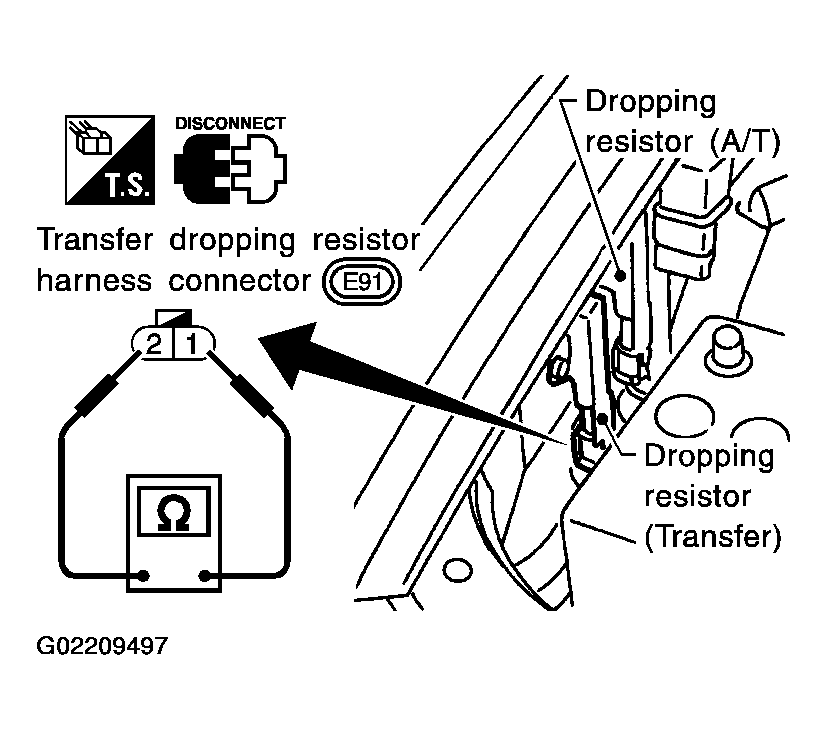

Fig 1: Checking Transfer Dropping Resistor
Courtesy of NISSAN MOTOR CO., U.S.A.
