All-Mode 4WD System
>>
Location Of Electrical Parts
Location Of Electrical Parts

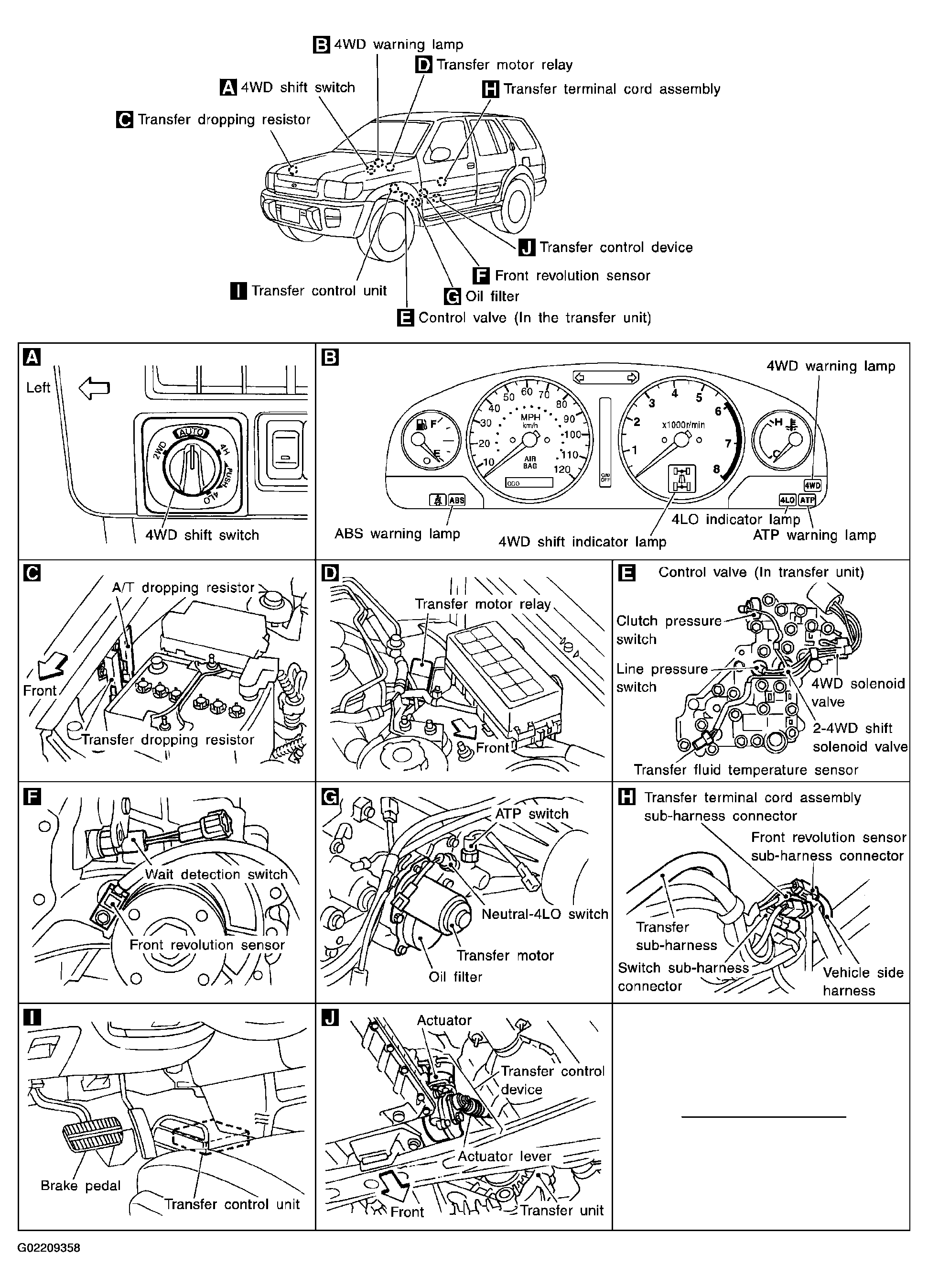

Fig 1: Identifying All-Mode 4WD System Electrical Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
