Home >> Infiniti >> 2003 >> QX4 4WD >> Repair and Diagnosis >> Steering >> Power Steering >> Steering System >> Power Steering Gear And Linkage >> Components

Power Steering Gear And Linkage: Components

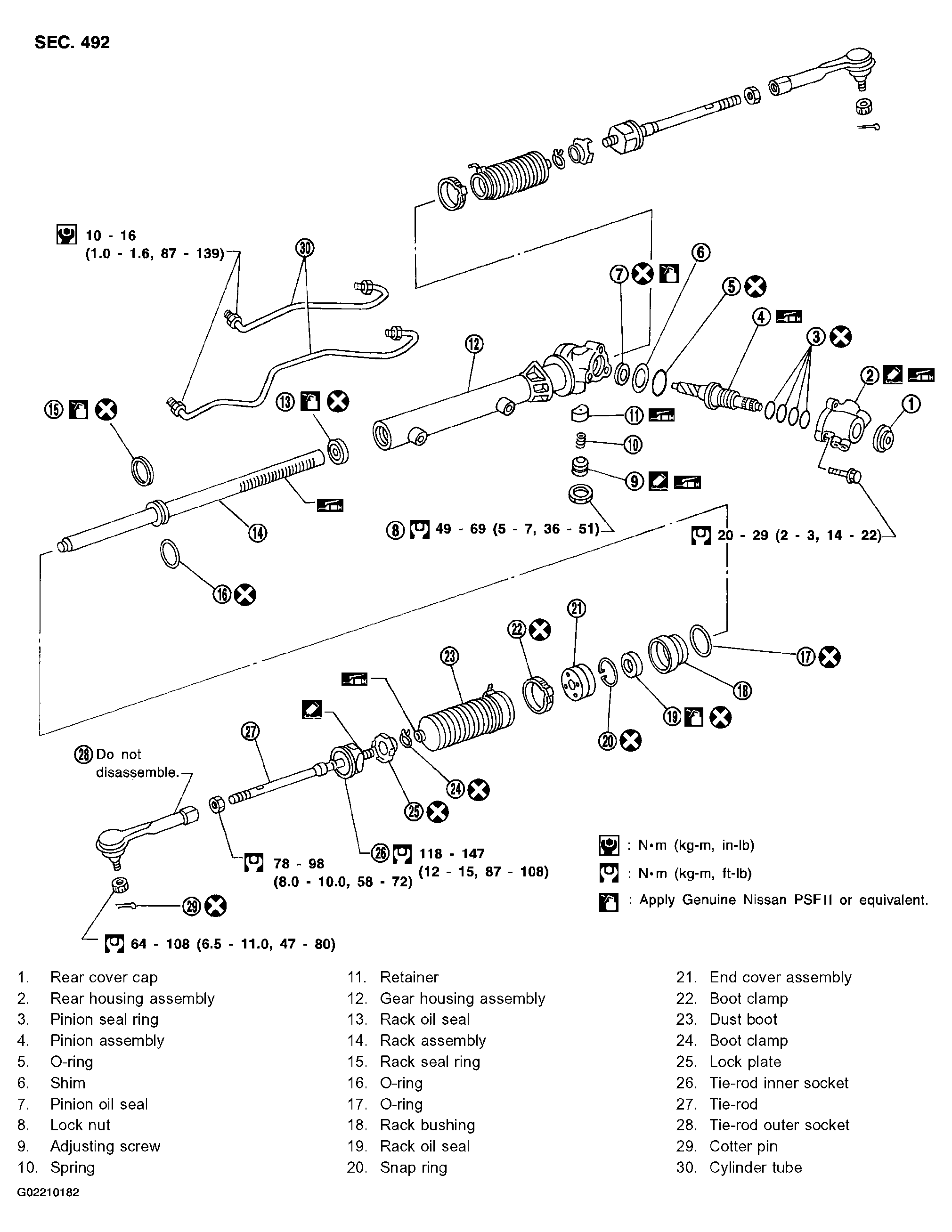

Fig 1: Exploded View And Torque Specification Of Power Steering Gear And Linkage

G02210182

Courtesy of NISSAN MOTOR CO., U.S.A.
