Differential Case

WARNING: This page is about a different car, the 2002 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

Remove side bearing inner cones.
To prevent damage to bearing, engage puller jaws in grooves.
1. Tool number:
  1. A ST33051001 (J22888-20)
  2. B ST33061000 (J8107-2)

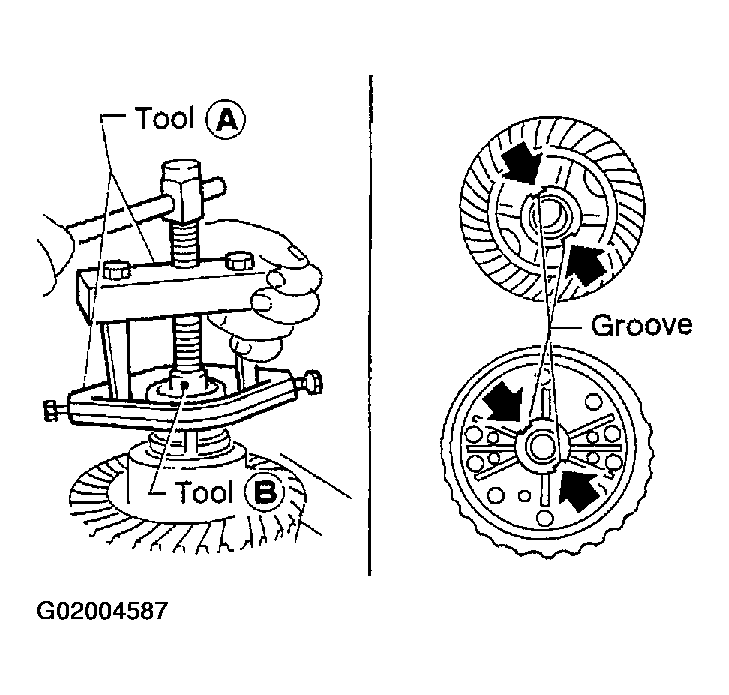

Fig 1: Removing Side Bearing Inner Cones
Courtesy of NISSAN MOTOR CO., U.S.A.

Be careful not to confuse the right and left hand parts. Keep bearing and bearing race for each side together.

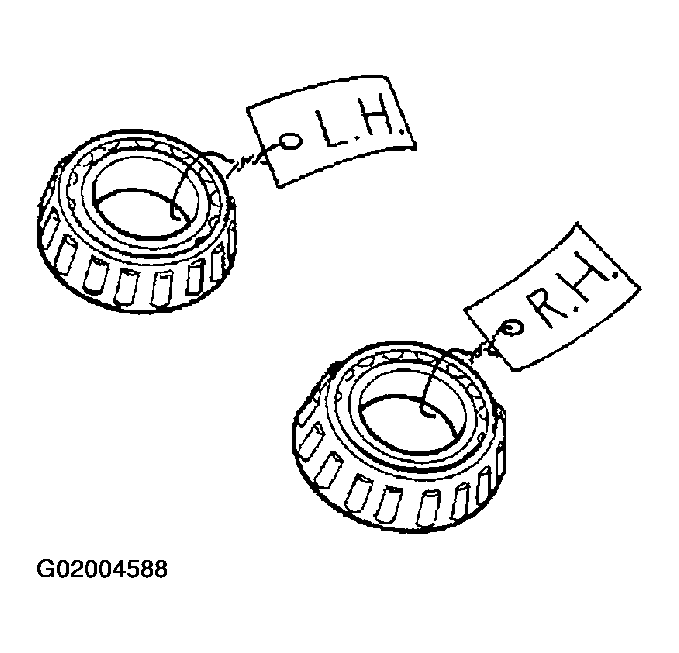

Fig 2: Identifying Side Bearing With Identification Labels
Courtesy of NISSAN MOTOR CO., U.S.A.
Loosen ring gear bolts in a criss-cross pattern.
Tap ring gear off the differential case with a soft hammer.
Tap evenly all around to keep ring gear from binding.

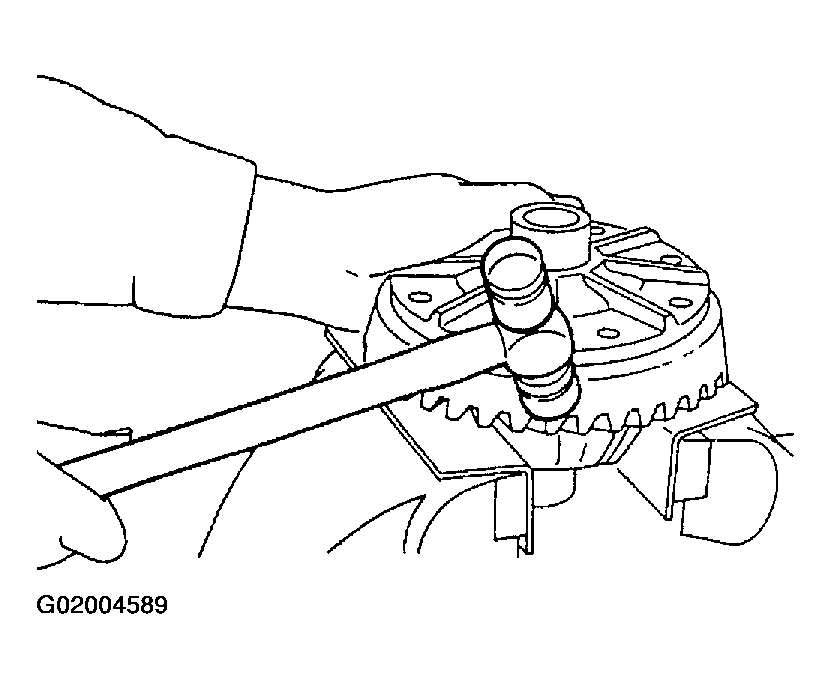

Fig 3: Tapping Ring Gear Off Differential Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Punch off pinion mate shaft lock pin from ring gear side.

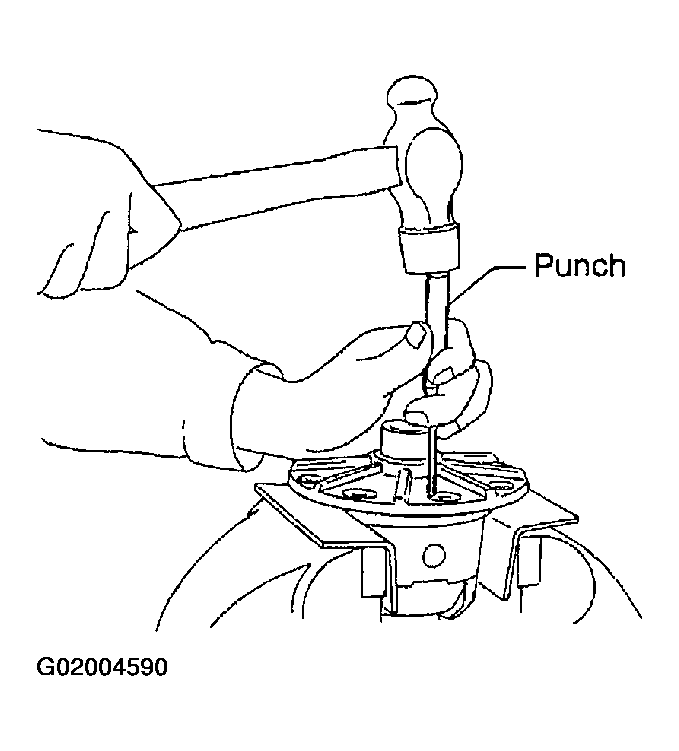

Fig 4: Punching Off Pinion Mate Shaft Lock Pin From Ring Gear Side
Courtesy of NISSAN MOTOR CO., U.S.A.
