Discharge Air Flow

WARNING: This page is about a different car, the 2002 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

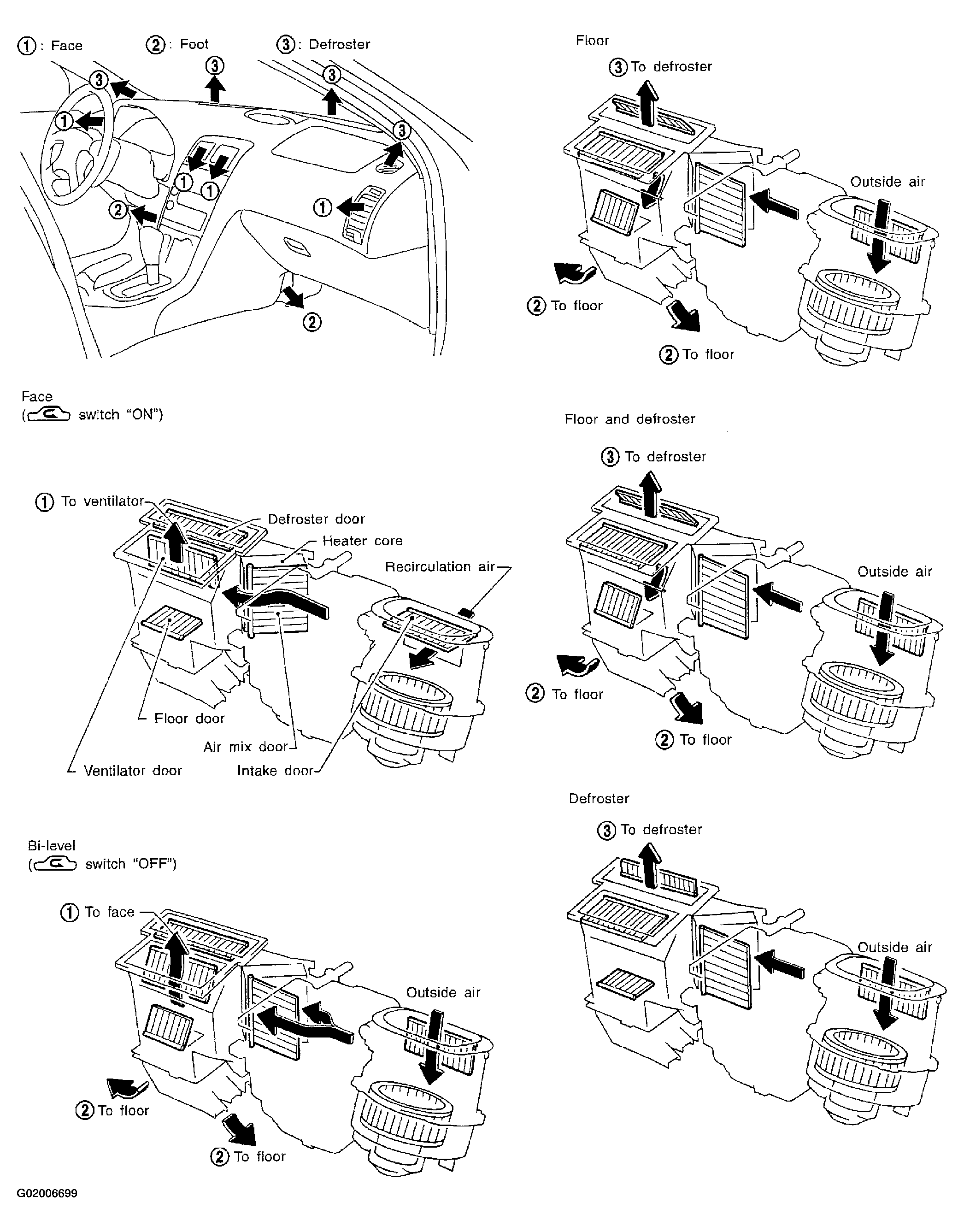

Fig 1: Identifying Discharge Air Flow
G02006699Courtesy of NISSAN MOTOR CO., U.S.A.
