Combination Meter Connector End View (M25)

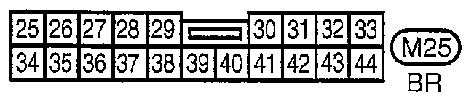

Fig 1: Combination Meter Connector End View (M25)

G10814325

Courtesy of NISSAN NORTH AMERICA, INC.
