Home >> Infiniti >> 2003 >> QX4 4WD >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs >> Removal And Installation >> G Sensor

G Sensor

Always replace G sensor if bumped or dropped. Otherwise, performance characteristics of G sensor will be changed, which in turn changes ABS control performance characteristics.

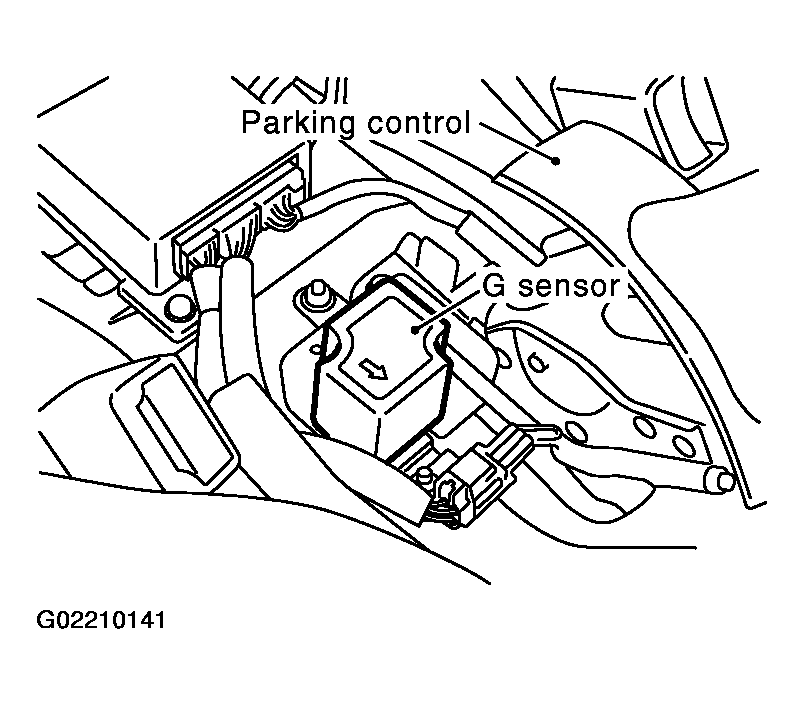

Fig 1: Locating Parking Control And G Sensor
G02210141Courtesy of NISSAN MOTOR CO., U.S.A.
