Work Flow For Navigation Inspection
Work Flow For Navigation Inspection

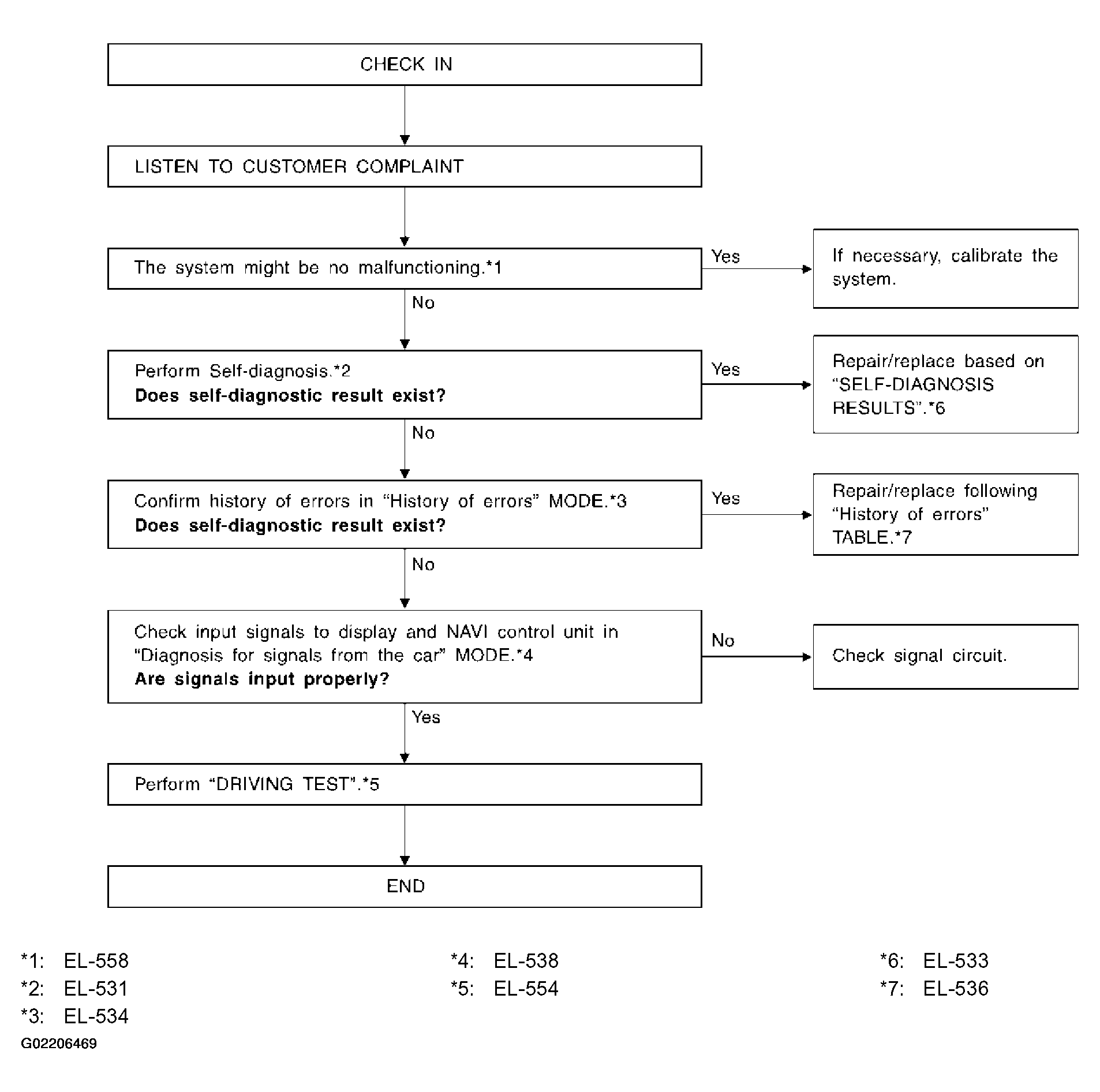

Fig 1: Work Flow Chart For Navigation Inspection
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
