"Map & A/C" Mode

  1. Start the engine.
  2. Push "MAP" switch.
  3. Touch "Setting".
  4. Touch "System Setting".

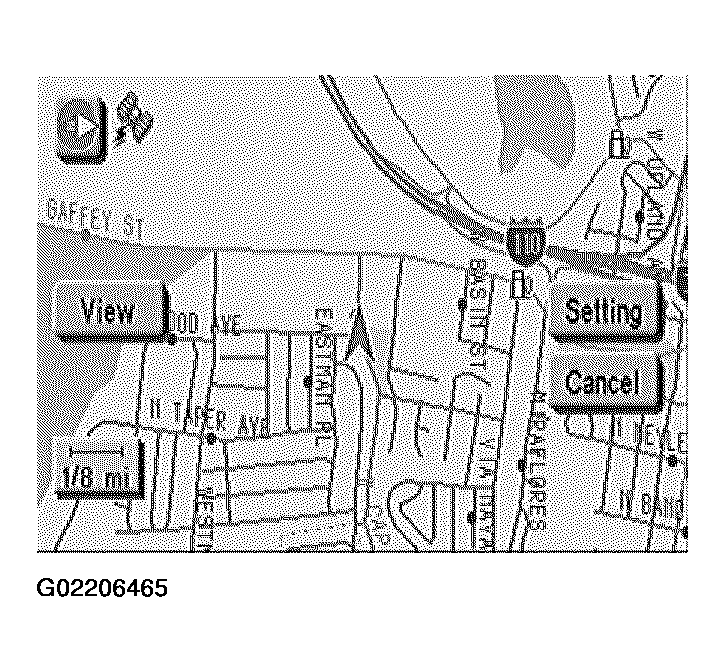

    Fig 1: MAP & A/C Mode Display
    G02206465Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "MAP & A/C".
    Fig 2: MAP & A/C Selection Display
    G02206466Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "Map & A/C" or "Map" icon.
    • To set the split display with both the map and the air conditioner information as the initial setting of the NAVI system, select "MAP & A/C".
    • To set the map only display as the initial setting of the NAVI system, select "MAP".
  7. Push "MAP" switch, then the display will go back to the current location map.
NOTE: When the enlarged view is displayed, the air conditioner control screen will not be displayed.

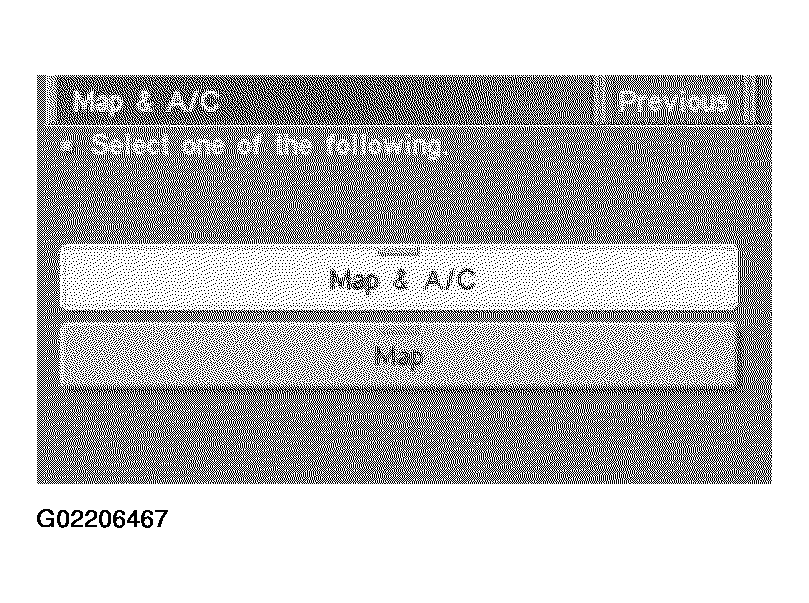

Fig 3: Map & A/C Or Map Icon Selection Display
G02206467Courtesy of NISSAN MOTOR CO., U.S.A.
