"Heading" Mode

  1. Start the engine.
  2. Push the "MAP" switch.
  3. Touch "Setting".
  4. Touch "System Setting".

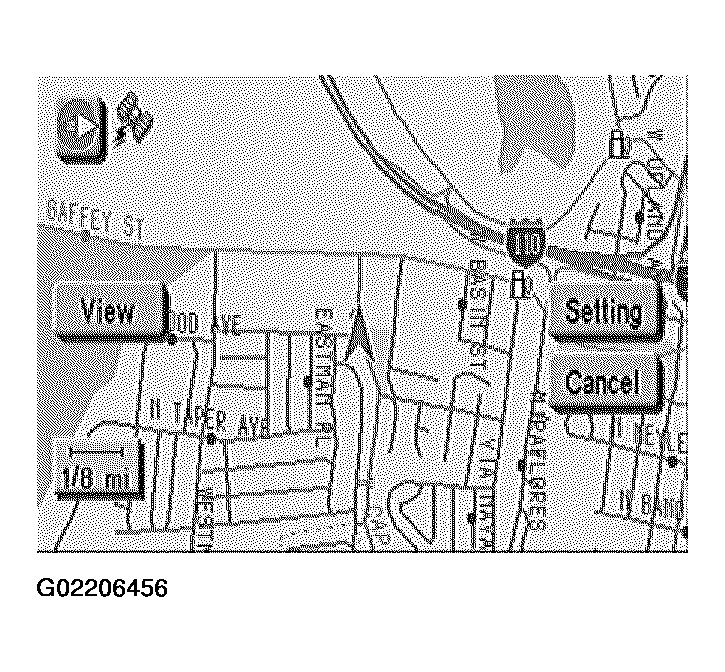

    Fig 1: Heading Mode Display
    G02206456Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "Heading".

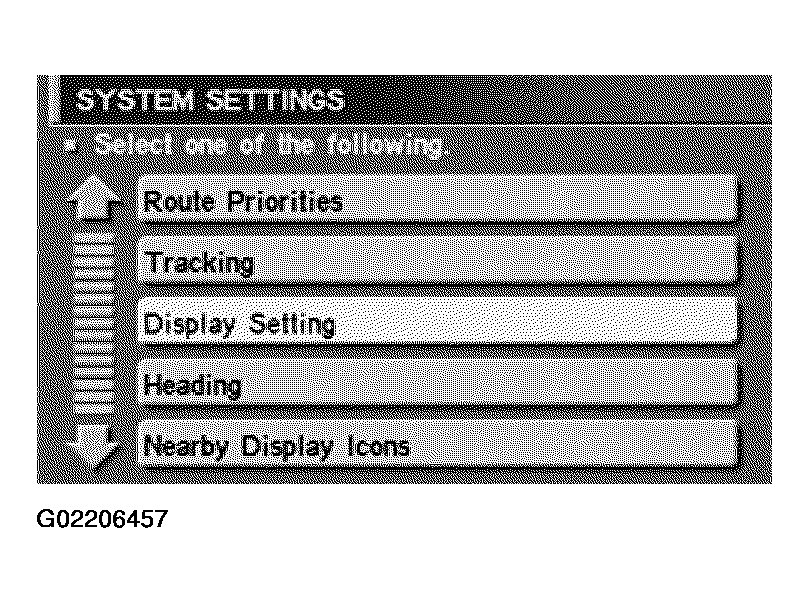

    Fig 2: Heading Selection Display
    G02206457Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch the "Heading up" or "North up" icon.
    • To display North up, select "North up".
    • To display the car heading up, select "Heading up".
  7. Push the "MAP" switch, then the display will go back to the current location map.

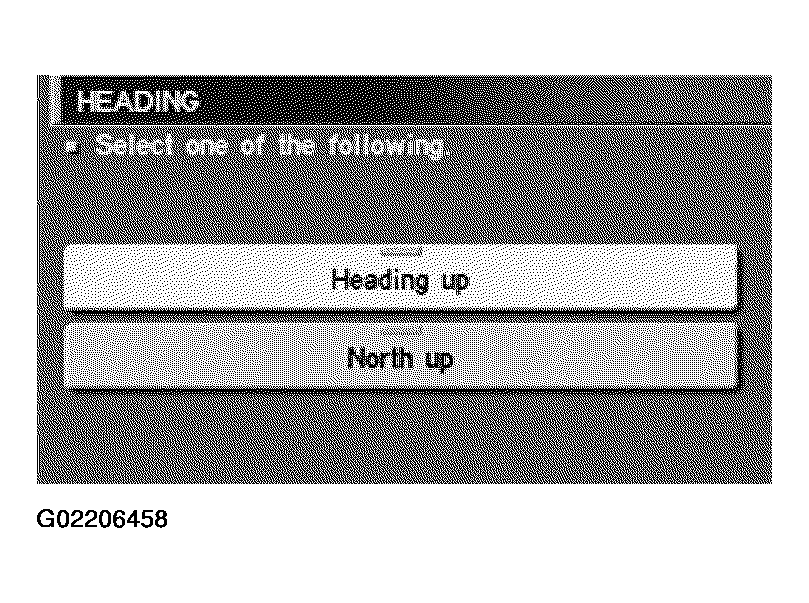

    Fig 3: Heading Up Or North Up Selection Display
    G02206458Courtesy of NISSAN MOTOR CO., U.S.A.
