How To Perform Self-Diagnosis Mode: Notes

Start the engine.
Push both of "MAP" and "D/N" switches at the same time for more than 5 seconds.

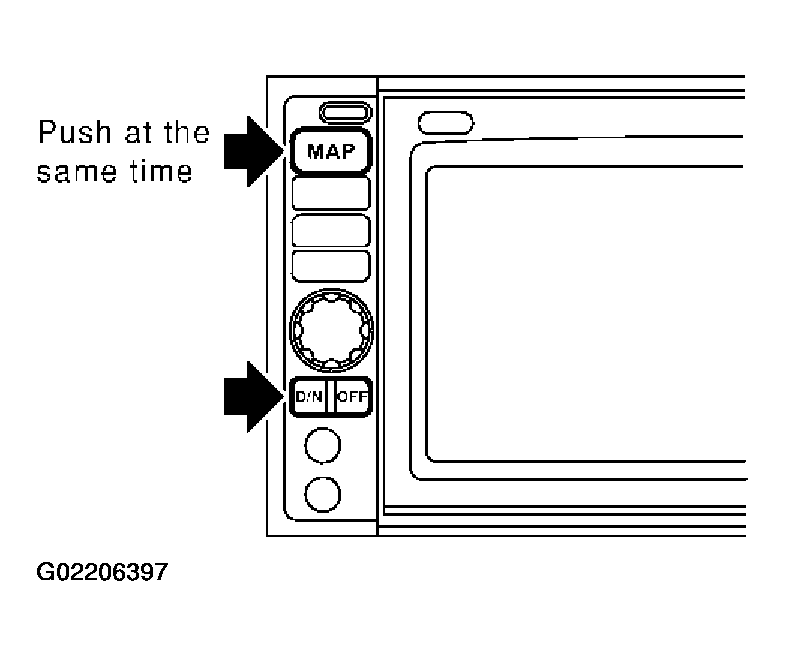

Fig 1: Locating Push Switches MAP And D/N
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "Self Diagnosis" or "Confirmation/ adjustment".
- For further procedure, refer to the following pages which describe each application item of the self-diagnosis mode.

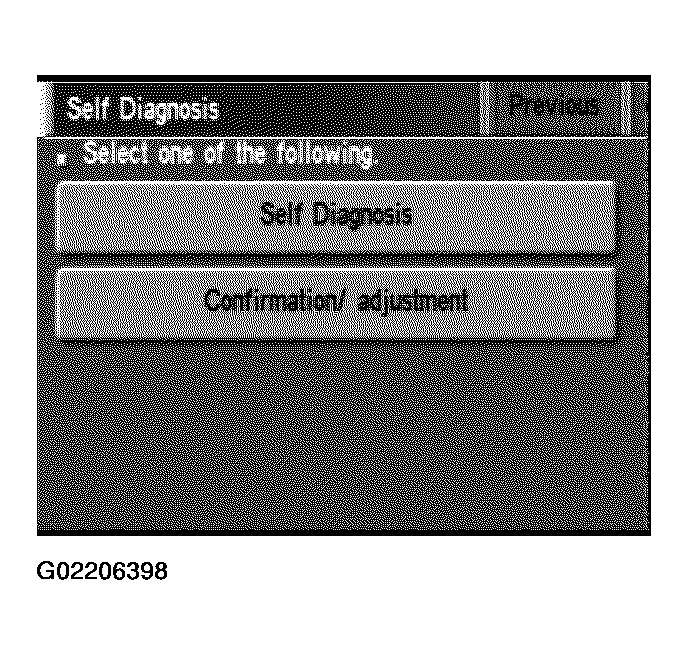

  Fig 2: SELF-DIAGNOSIS MODE Display For Selecting Self Diagnosis Or Confirmation/ Adjustment
  Courtesy of NISSAN MOTOR CO., U.S.A.
