Automatic Speed Control Device (ASCD): Schematic

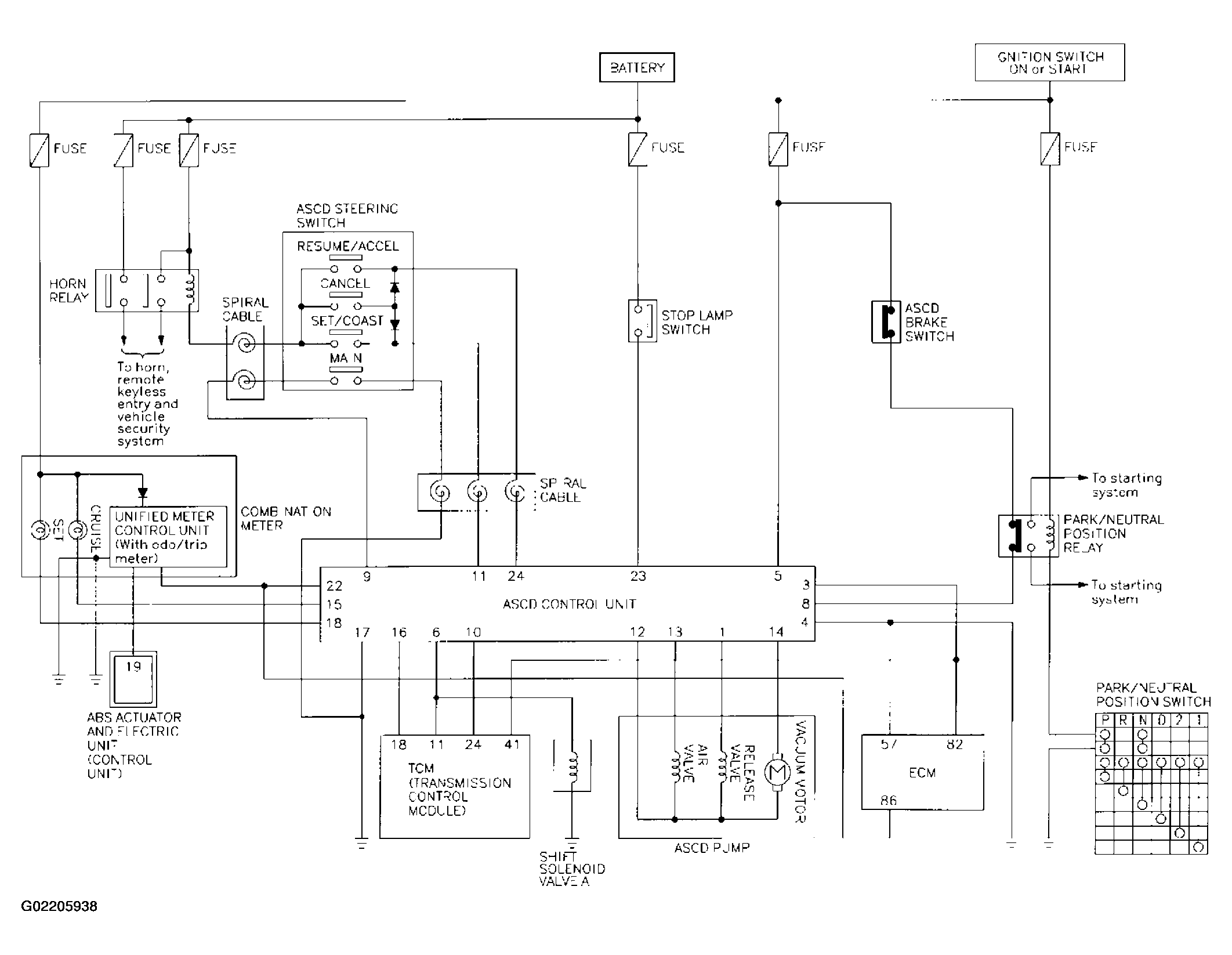

Fig 1: Automatic Speed Control Device Schematic Diagram

G02205938

Courtesy of NISSAN MOTOR CO., U.S.A.
