Symptom Chart

The diagnostics item numbers show the sequence for inspection. Inspect in order from Item 1.

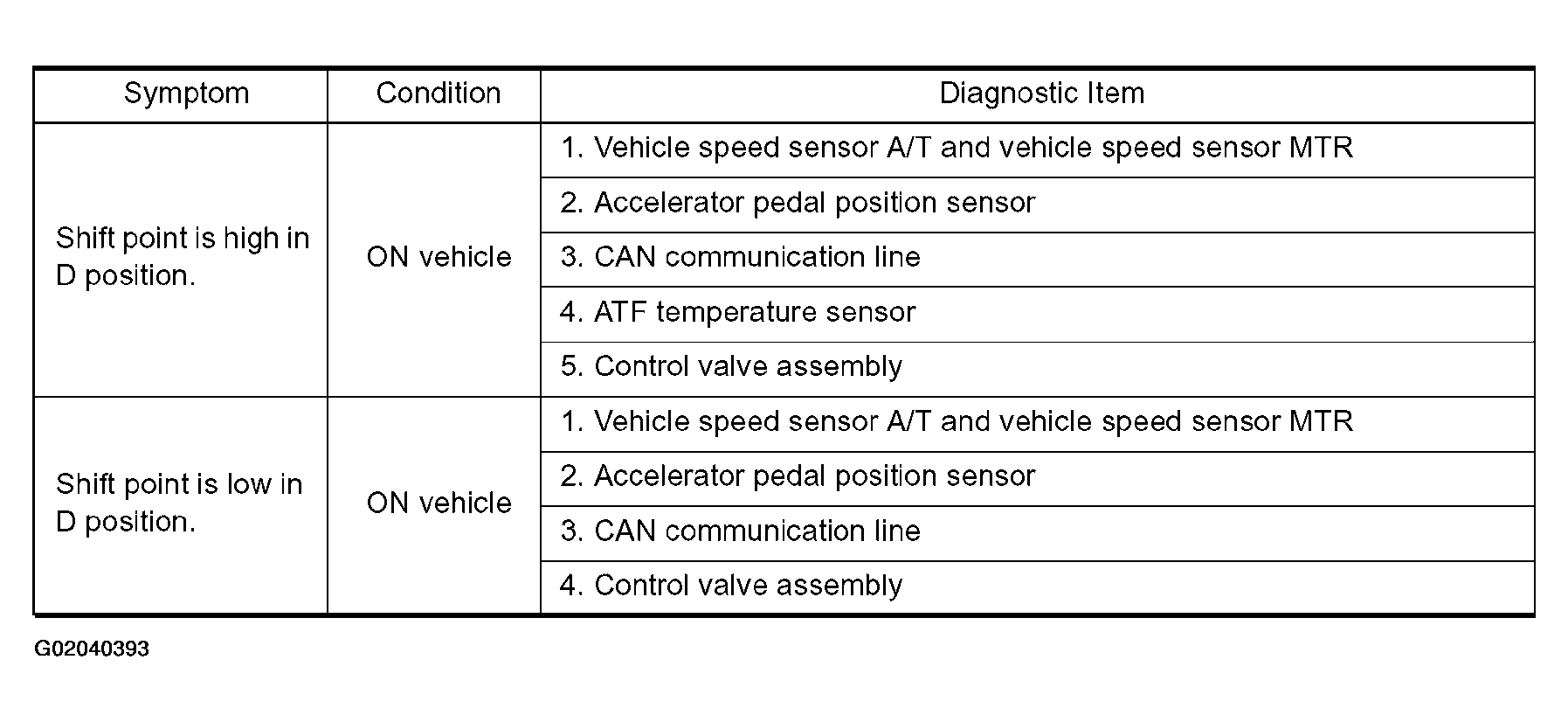

Fig 1: Problem Symptom Chart (1 Of 24)

G02040393

Courtesy of NISSAN MOTOR CO., U.S.A.

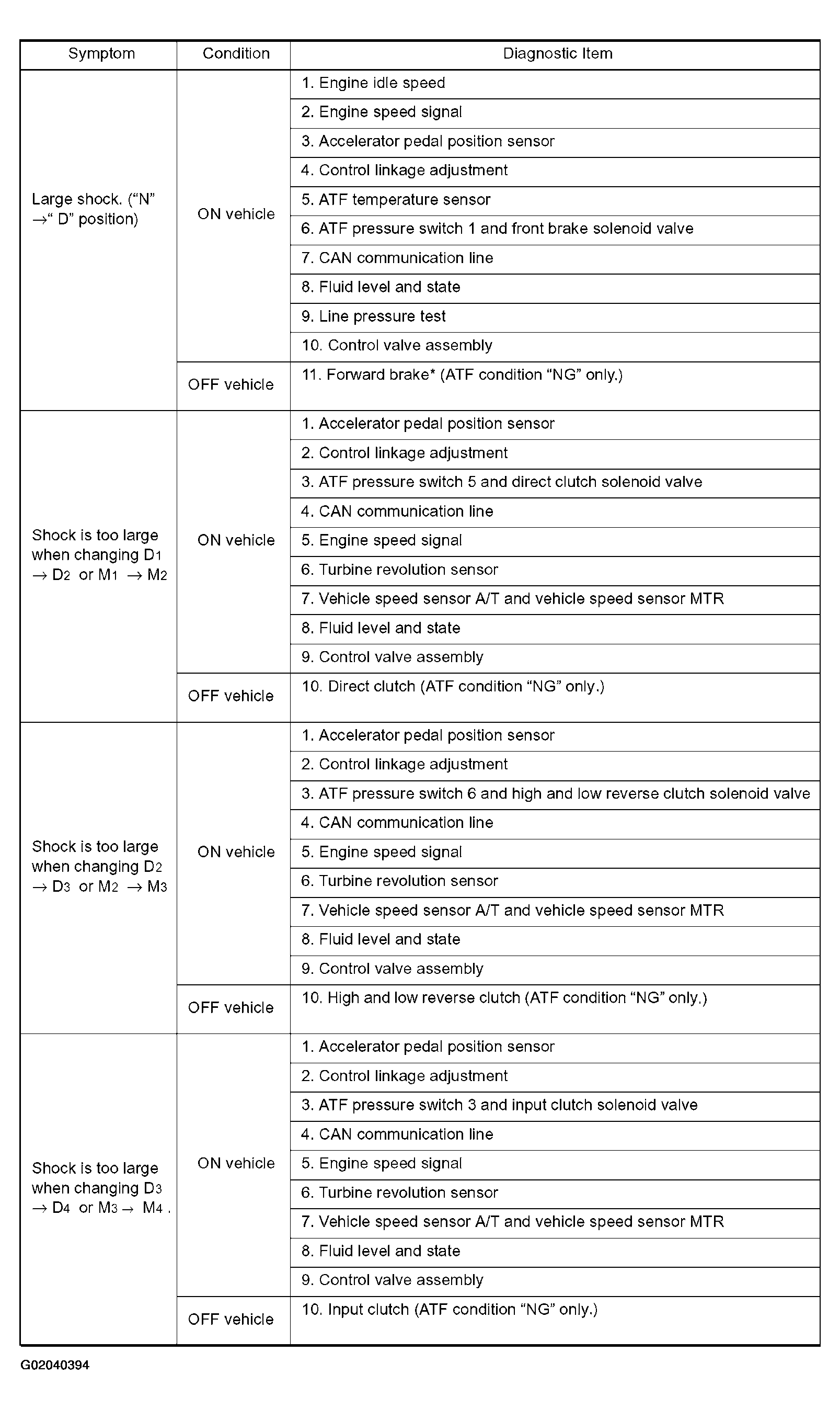

Fig 2: Problem Symptom Chart (2 Of 24)

G02040394

Courtesy of NISSAN MOTOR CO., U.S.A.

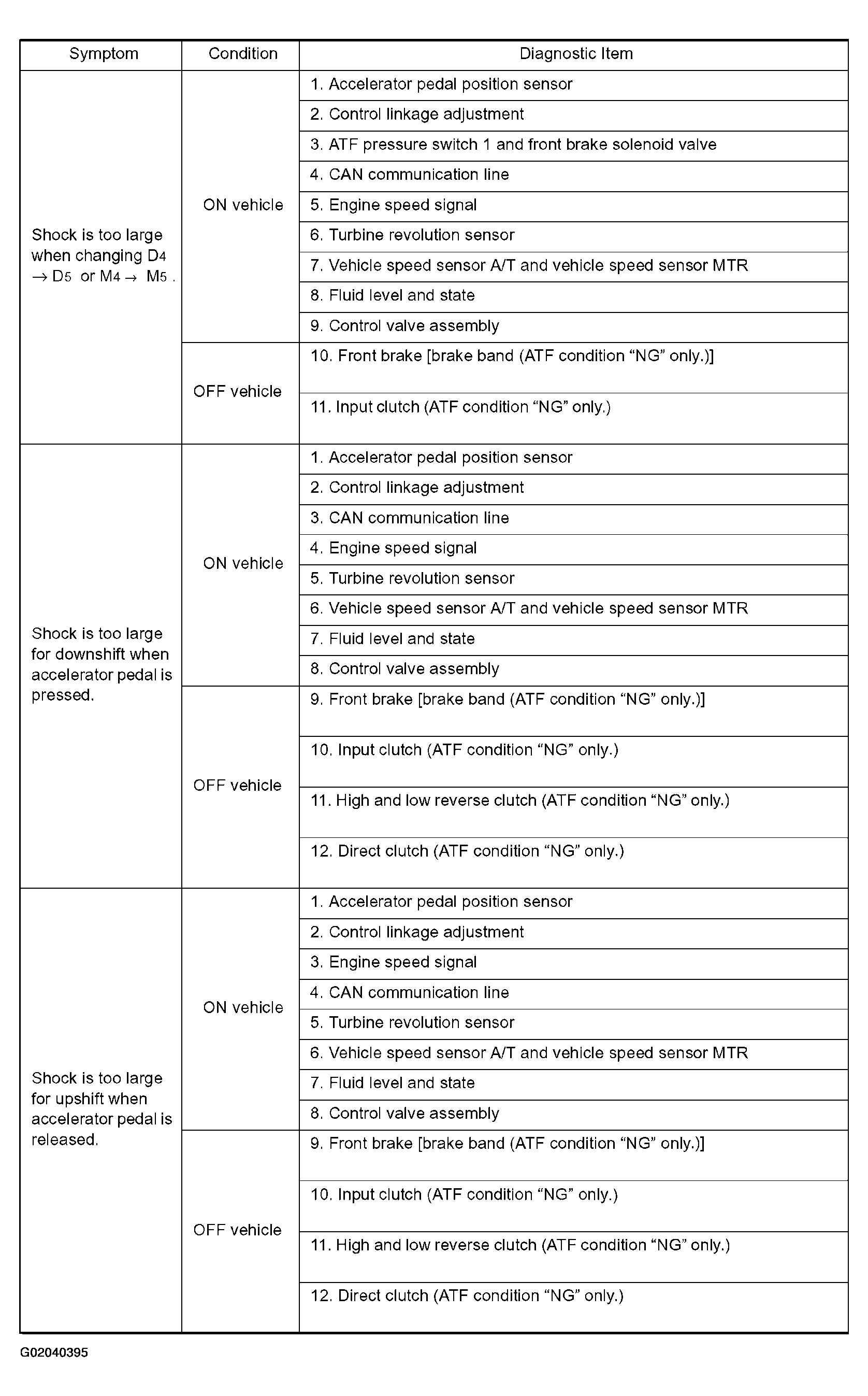

Fig 3: Problem Symptom Chart (3 Of 24)

G02040395

Courtesy of NISSAN MOTOR CO., U.S.A.

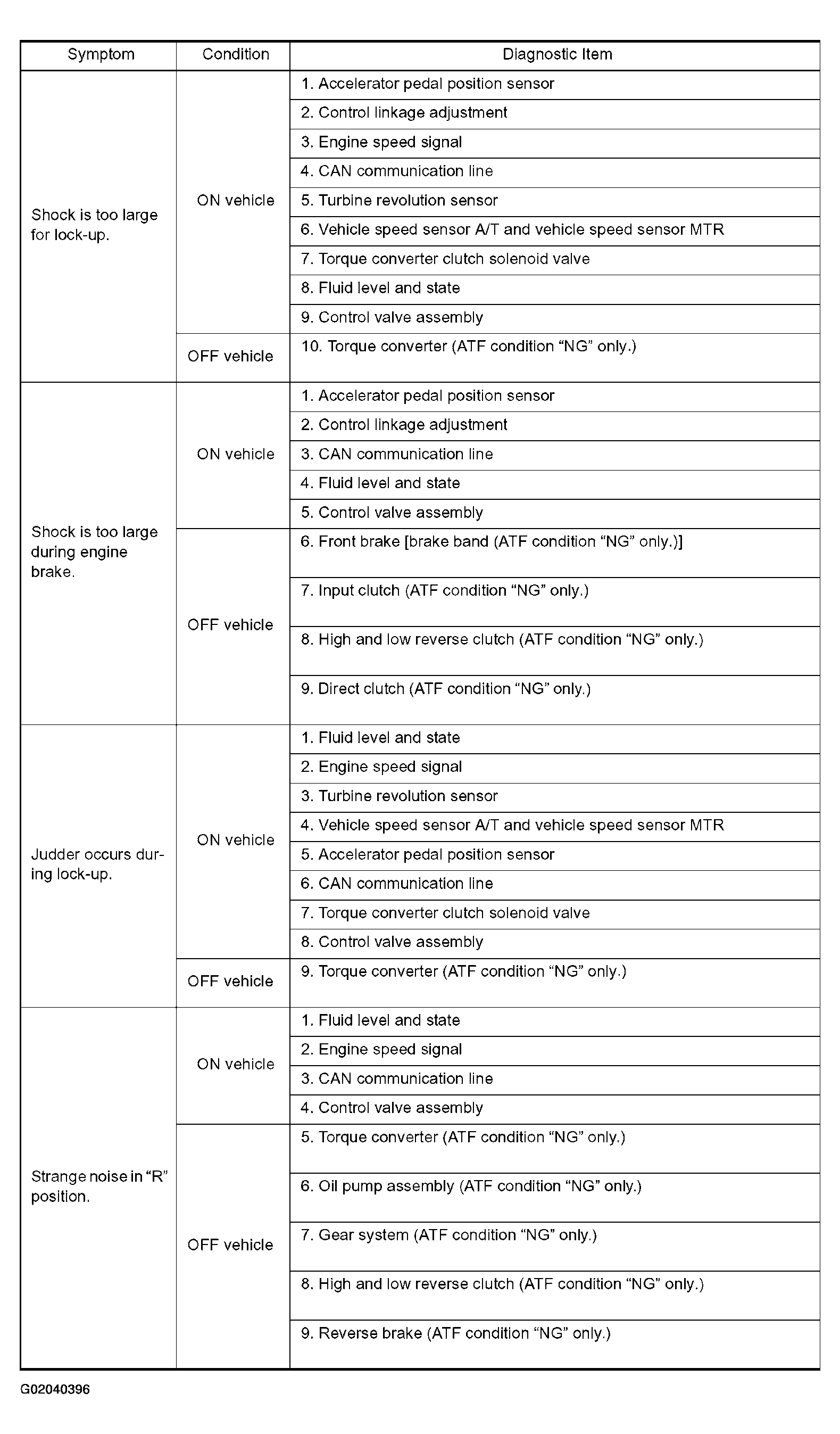

Fig 4: Problem Symptom Chart (4 Of 24)

G02040396

Courtesy of NISSAN MOTOR CO., U.S.A.

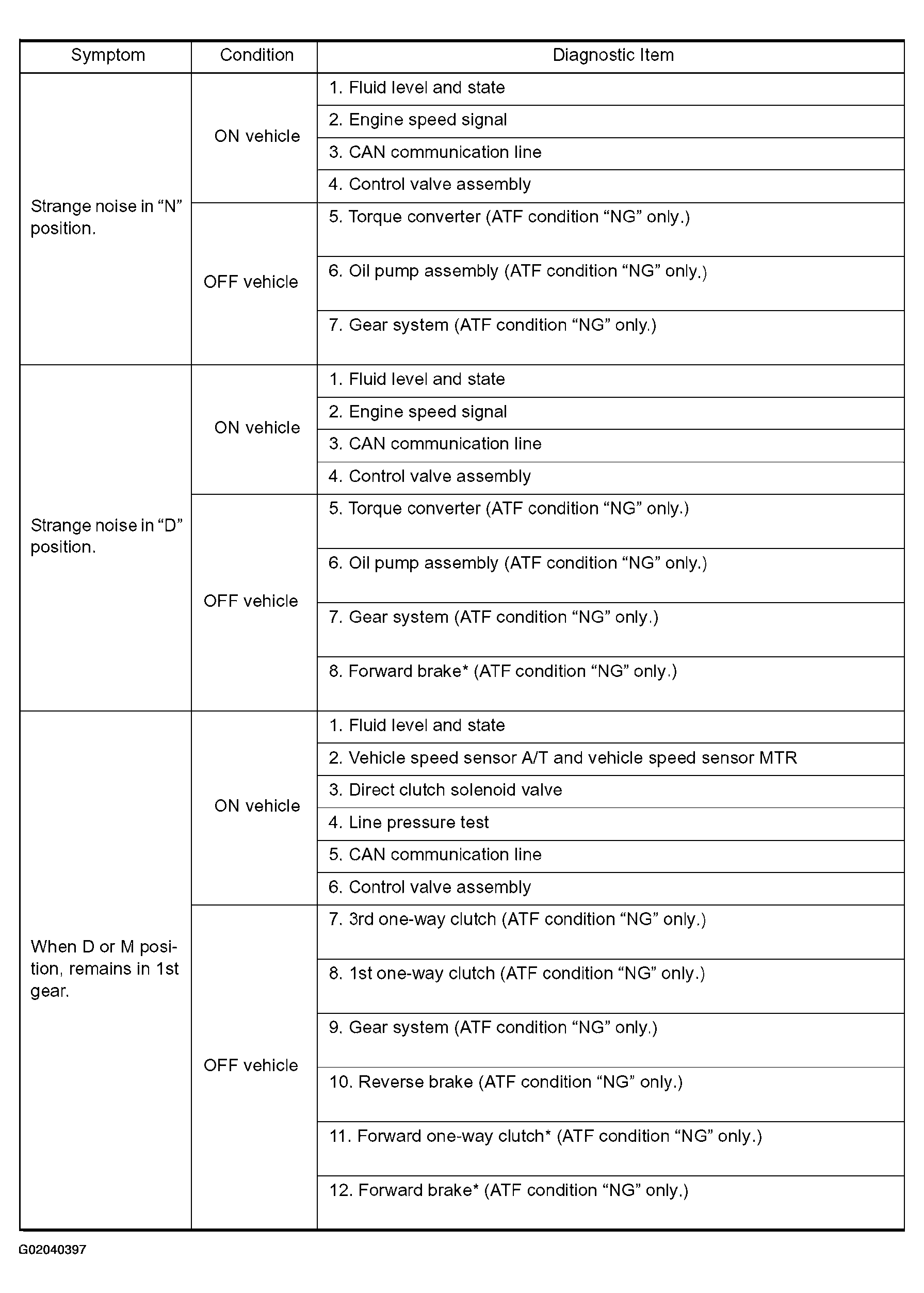

Fig 5: Problem Symptom Chart (5 Of 24)

G02040397

Courtesy of NISSAN MOTOR CO., U.S.A.

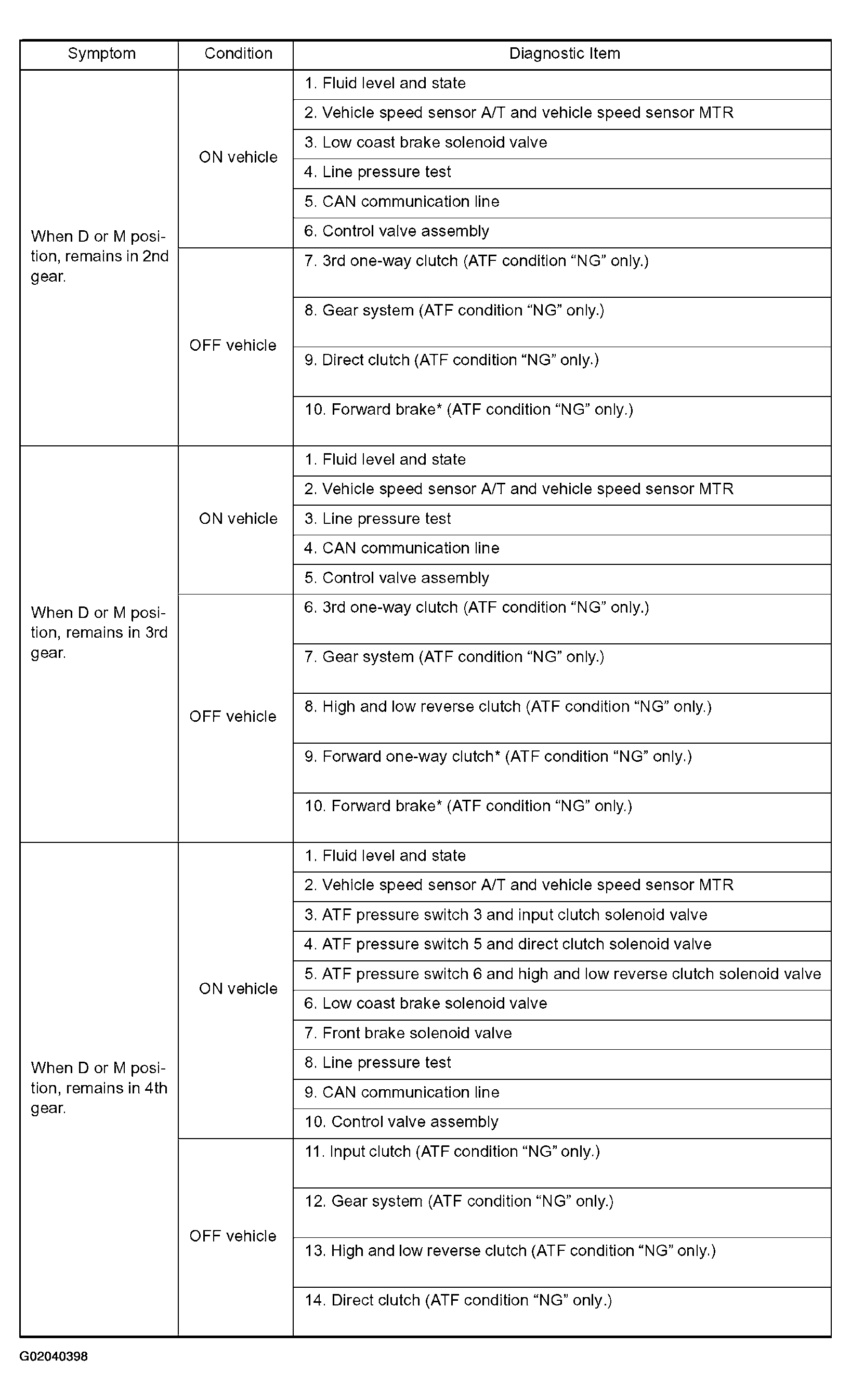

Fig 6: Problem Symptom Chart (6 Of 24)

G02040398

Courtesy of NISSAN MOTOR CO., U.S.A.

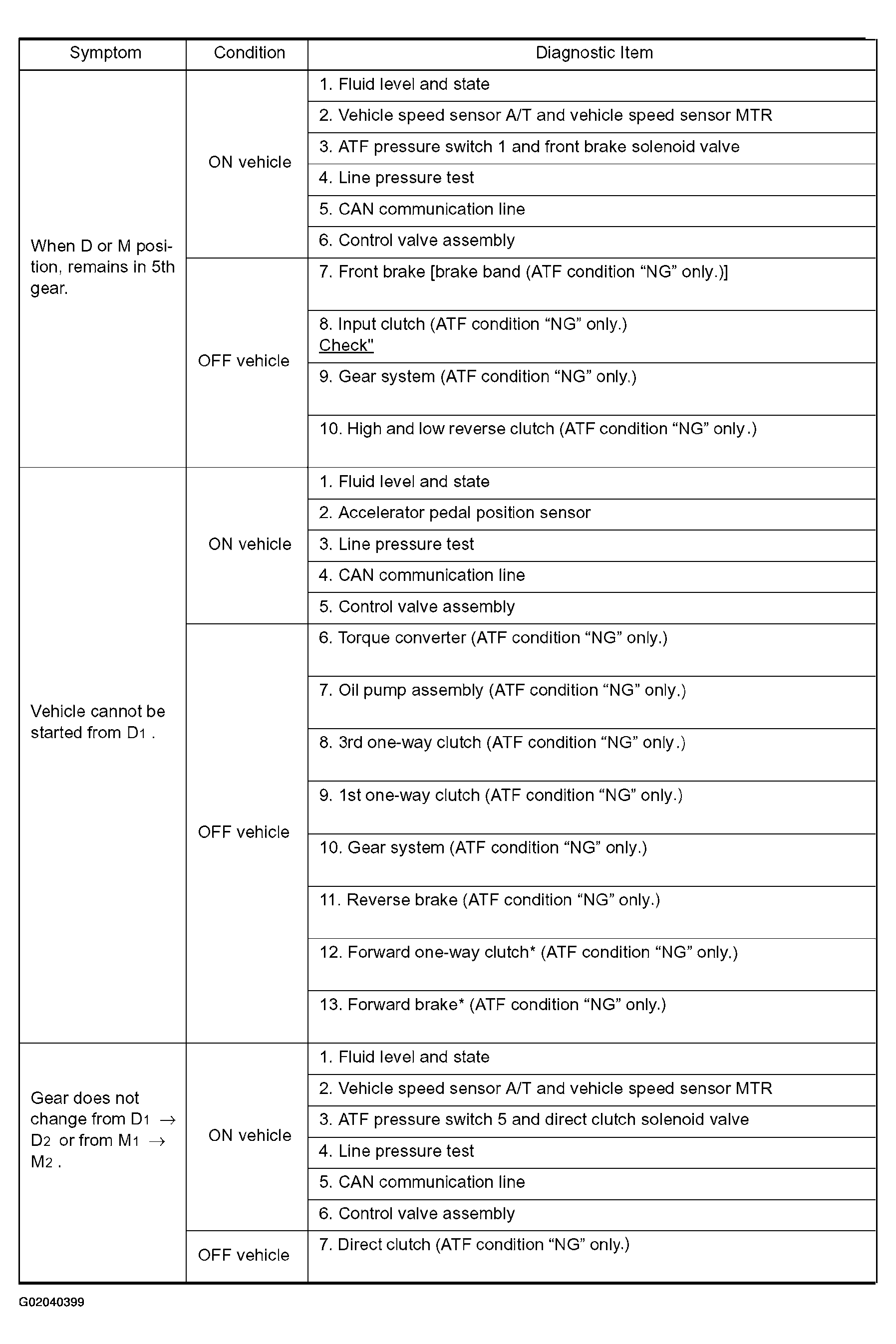

Fig 7: Problem Symptom Chart (7 Of 24)

G02040399

Courtesy of NISSAN MOTOR CO., U.S.A.

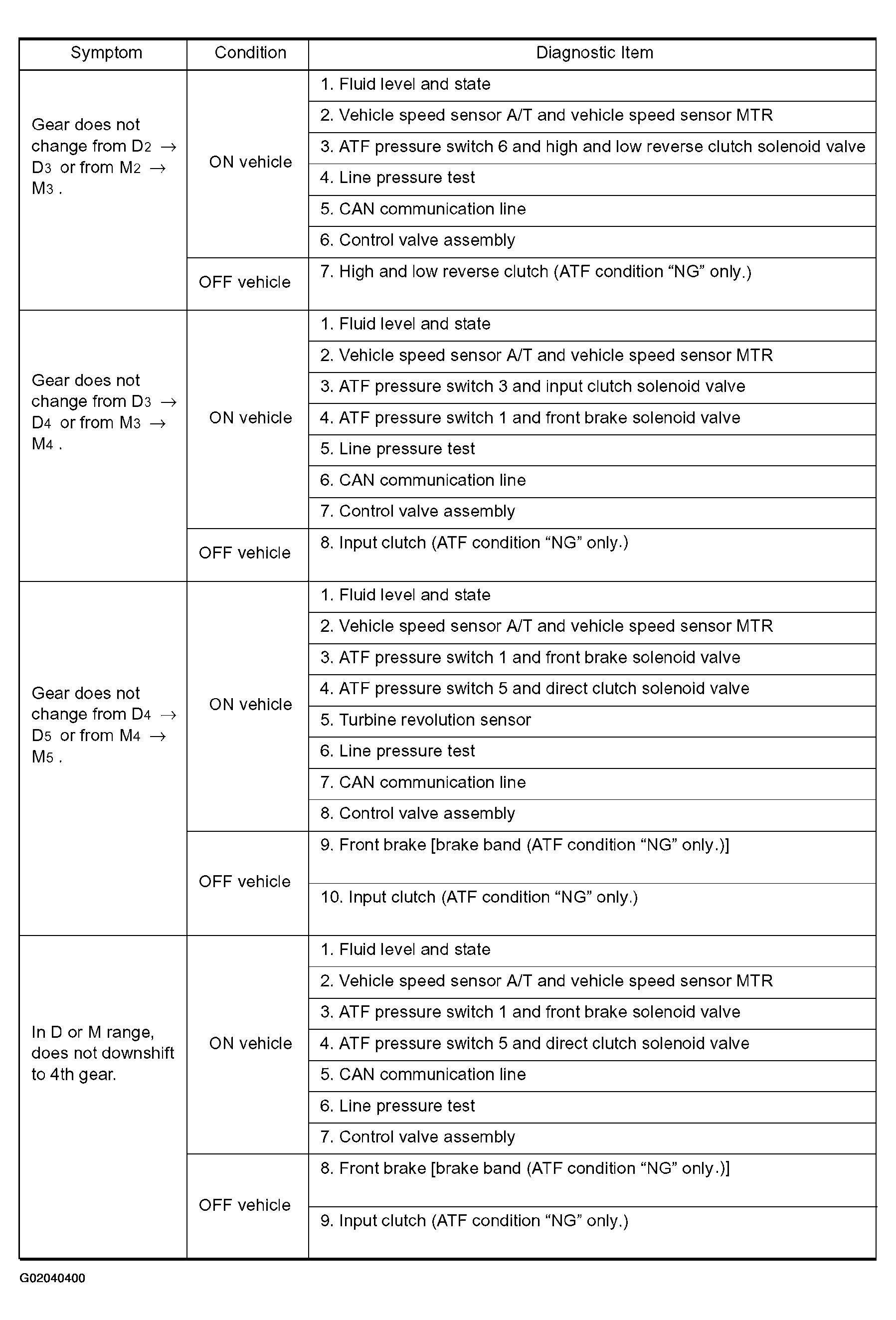

Fig 8: Problem Symptom Chart (8 Of 24)

G02040400

Courtesy of NISSAN MOTOR CO., U.S.A.

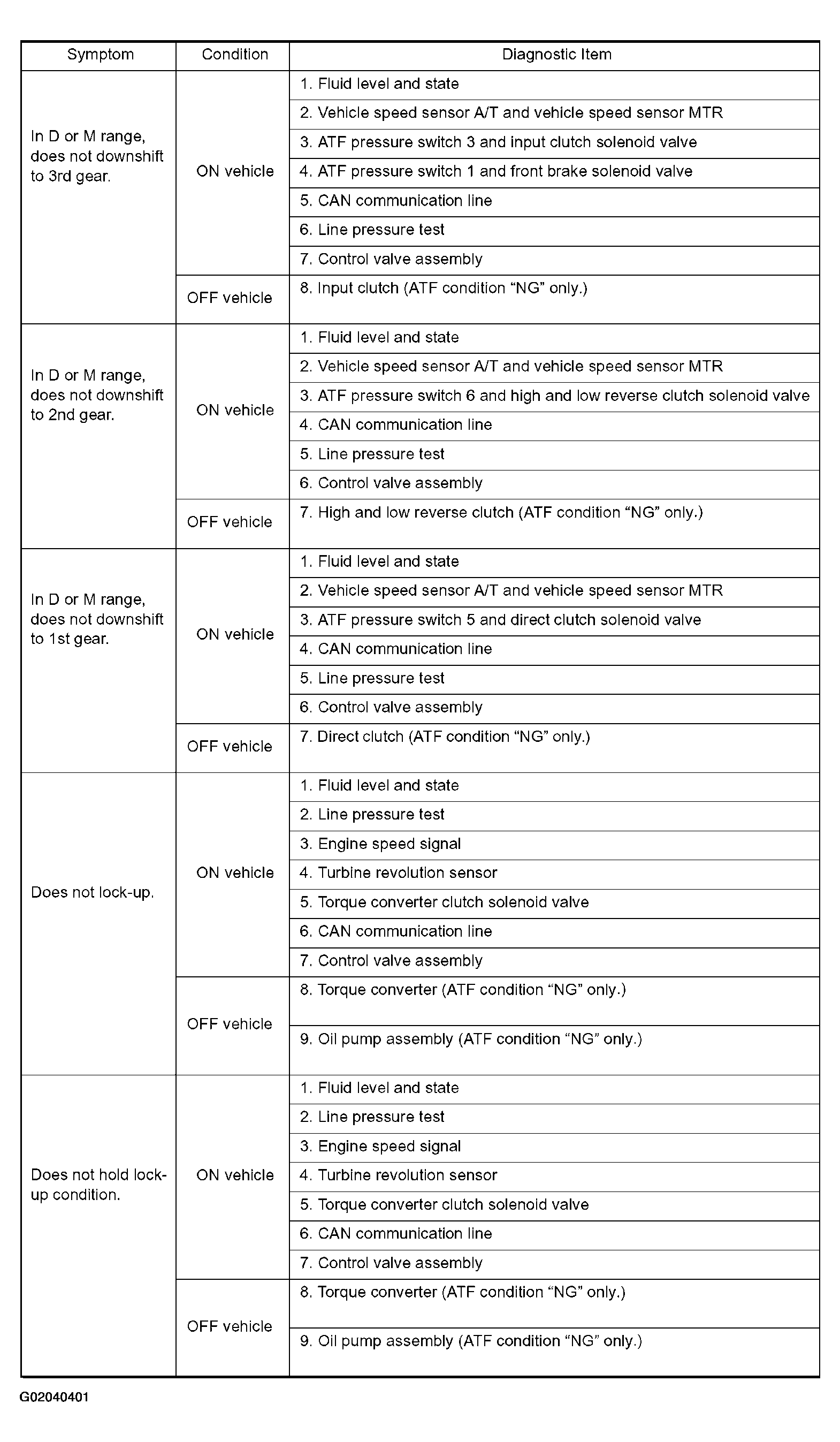

Fig 9: Problem Symptom Chart (9 Of 24)

G02040401

Courtesy of NISSAN MOTOR CO., U.S.A.

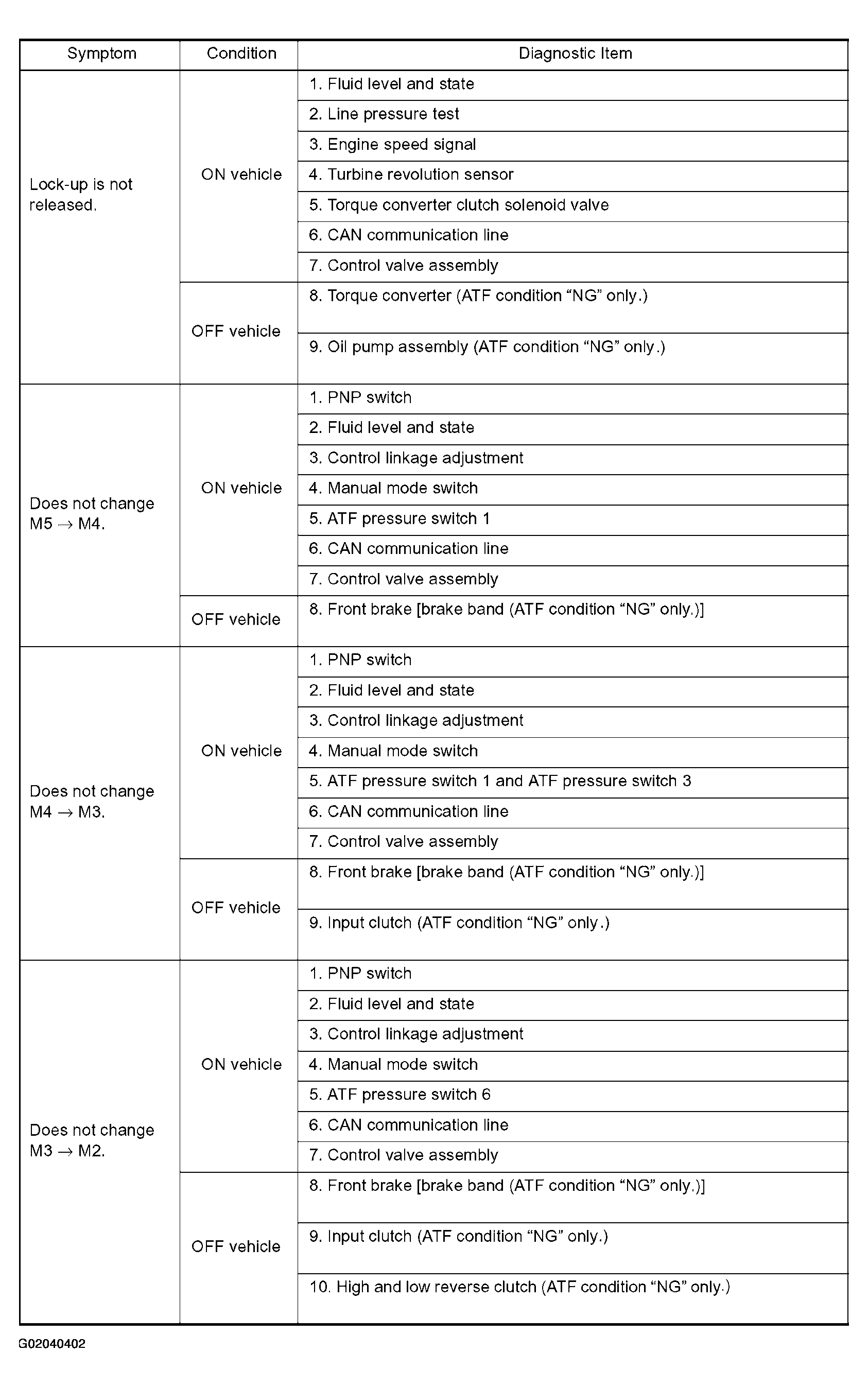

Fig 10: Problem Symptom Chart (10 Of 24)

G02040402

Courtesy of NISSAN MOTOR CO., U.S.A.

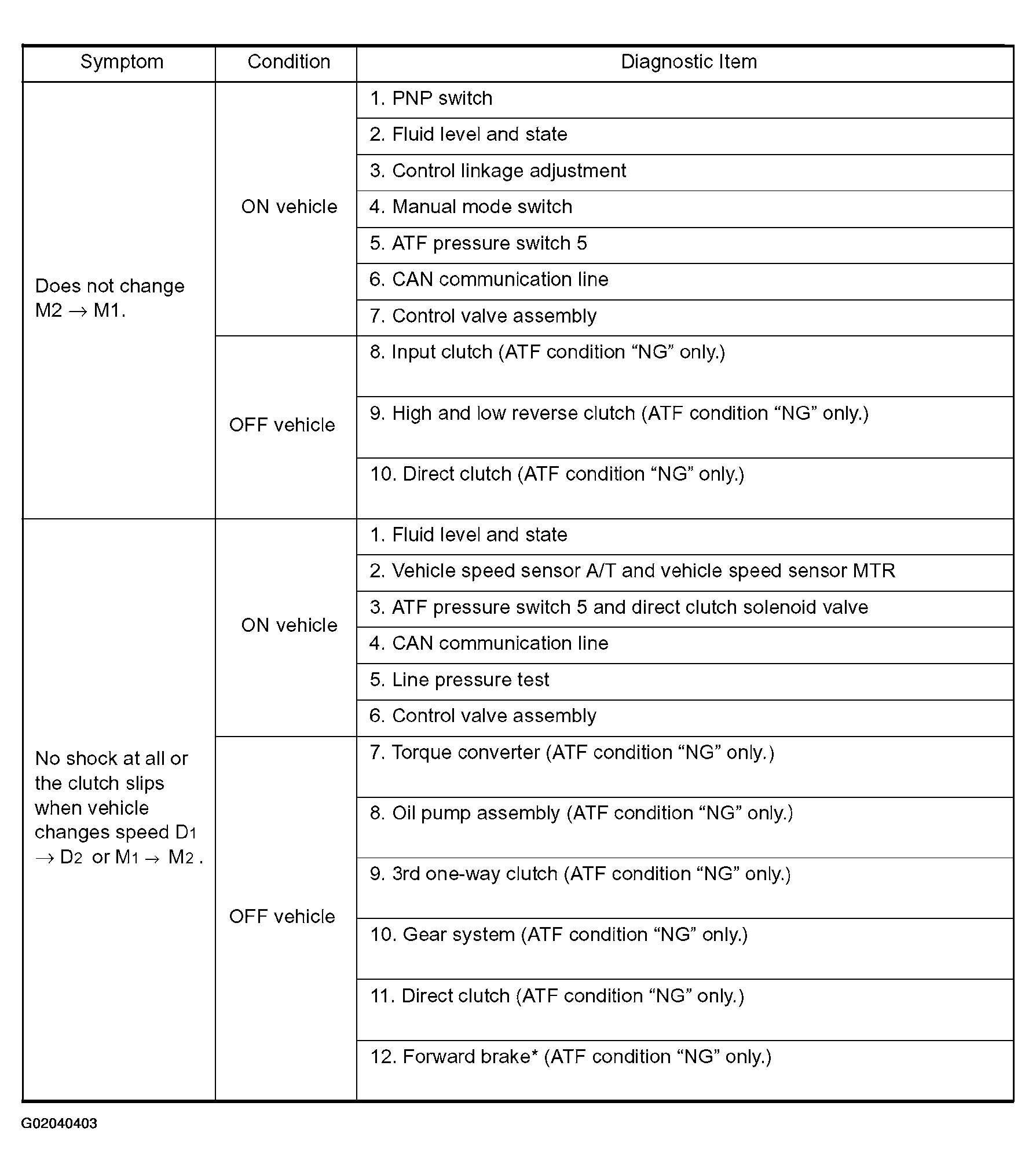

Fig 11: Problem Symptom Chart (11 Of 24)

G02040403

Courtesy of NISSAN MOTOR CO., U.S.A.

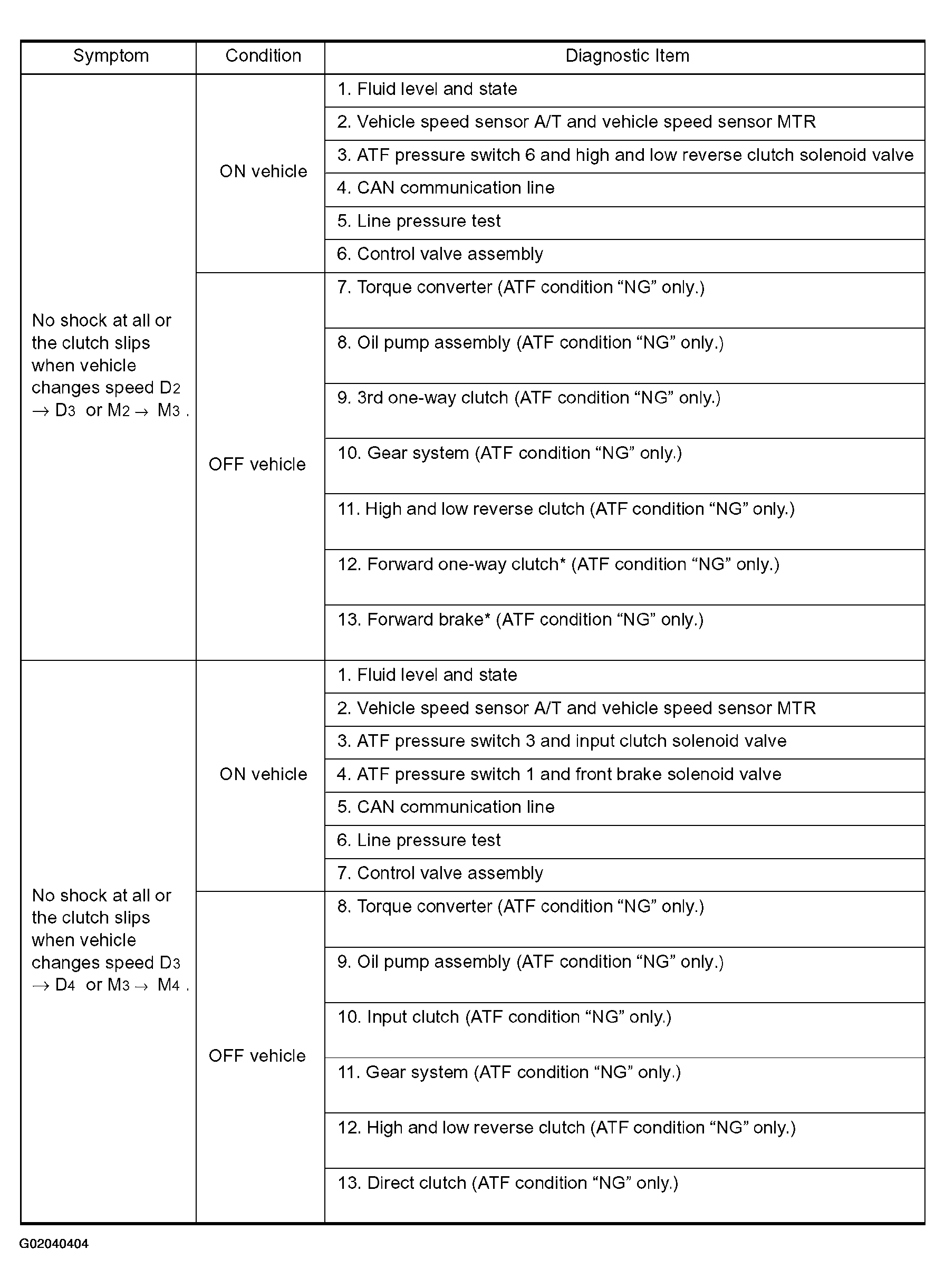

Fig 12: Problem Symptom Chart (12 Of 24)

G02040404

Courtesy of NISSAN MOTOR CO., U.S.A.

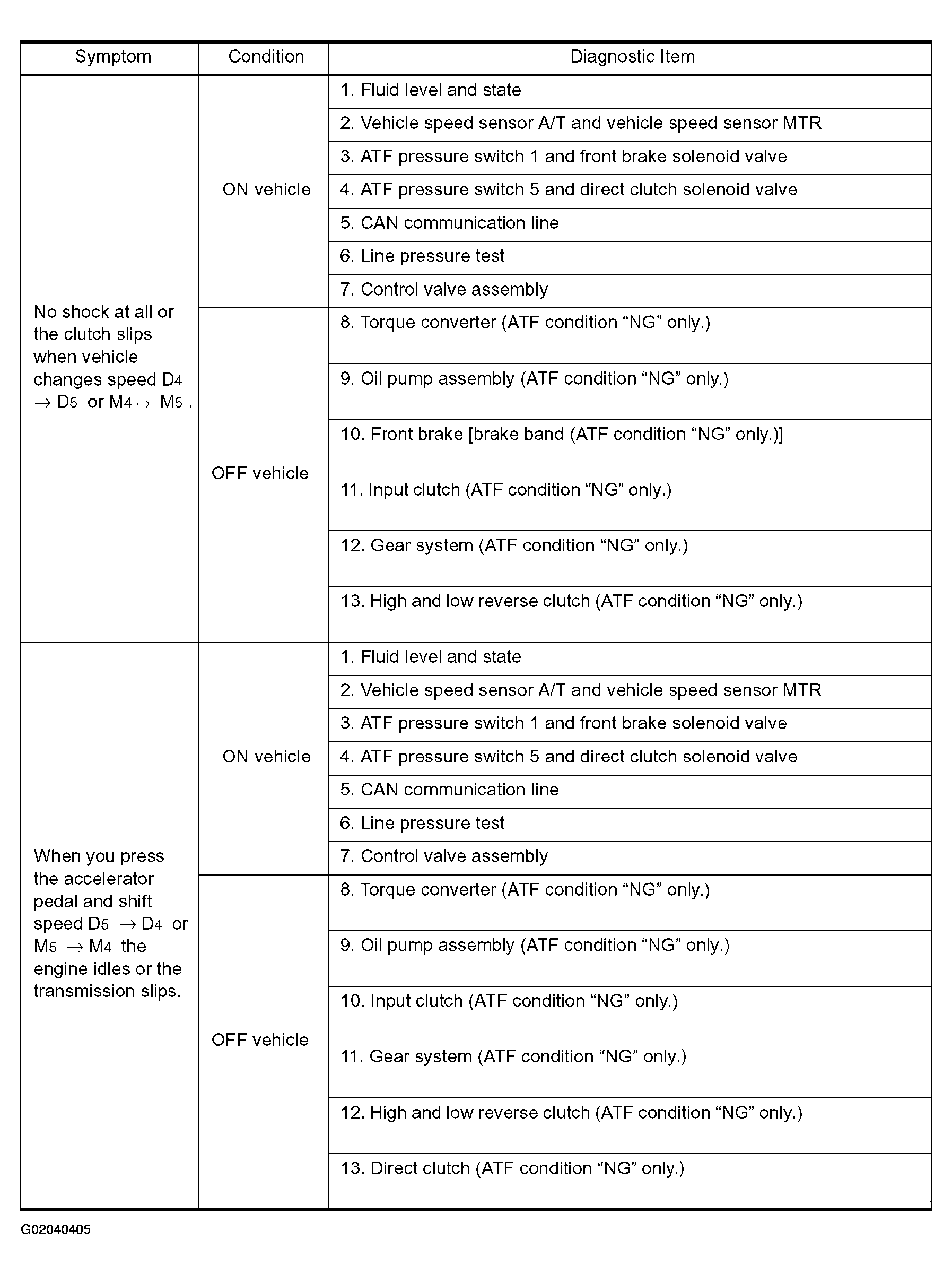

Fig 13: Problem Symptom Chart (13 Of 24)

G02040405

Courtesy of NISSAN MOTOR CO., U.S.A.

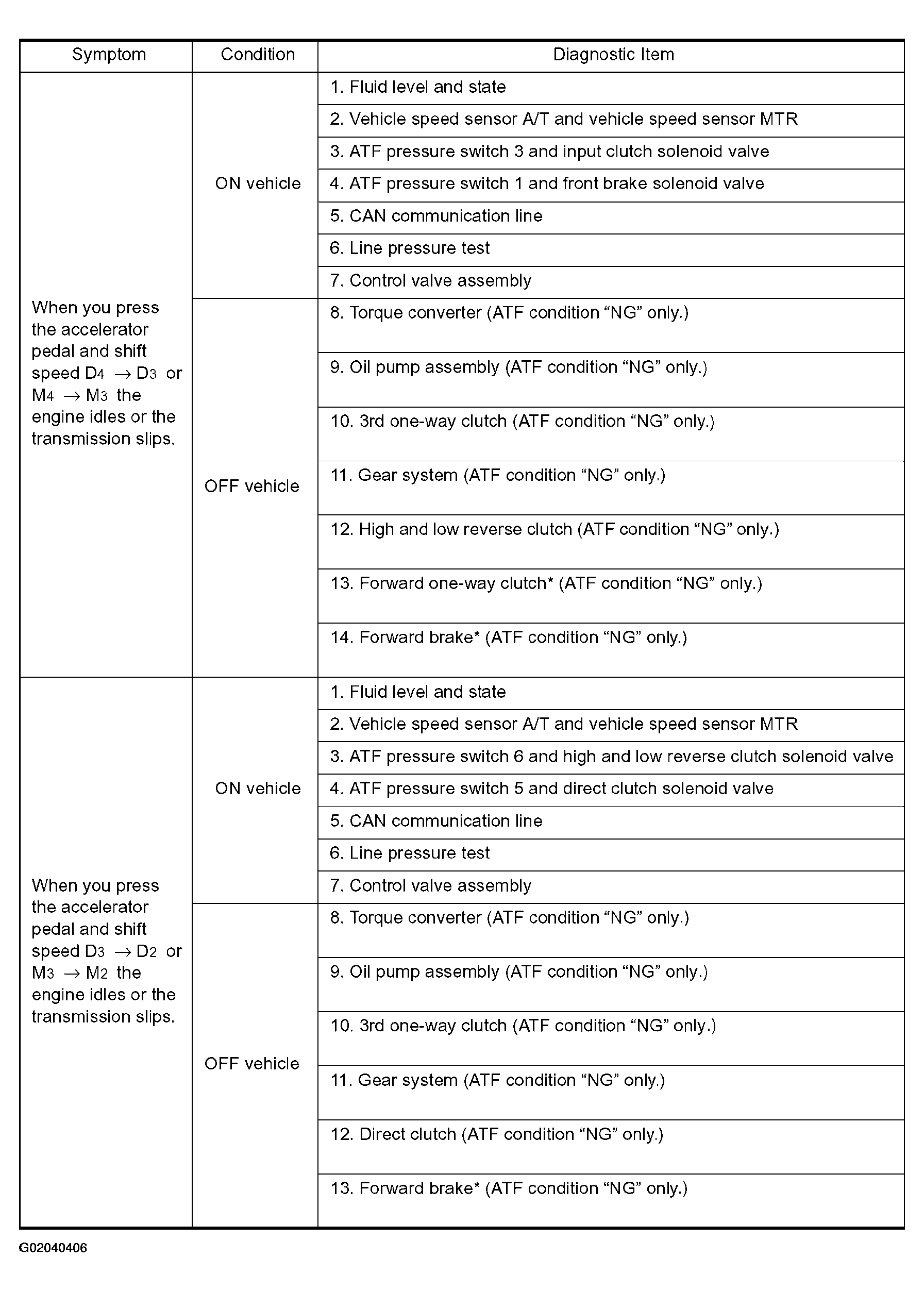

Fig 14: Problem Symptom Chart (14 Of 24)

G02040406

Courtesy of NISSAN MOTOR CO., U.S.A.

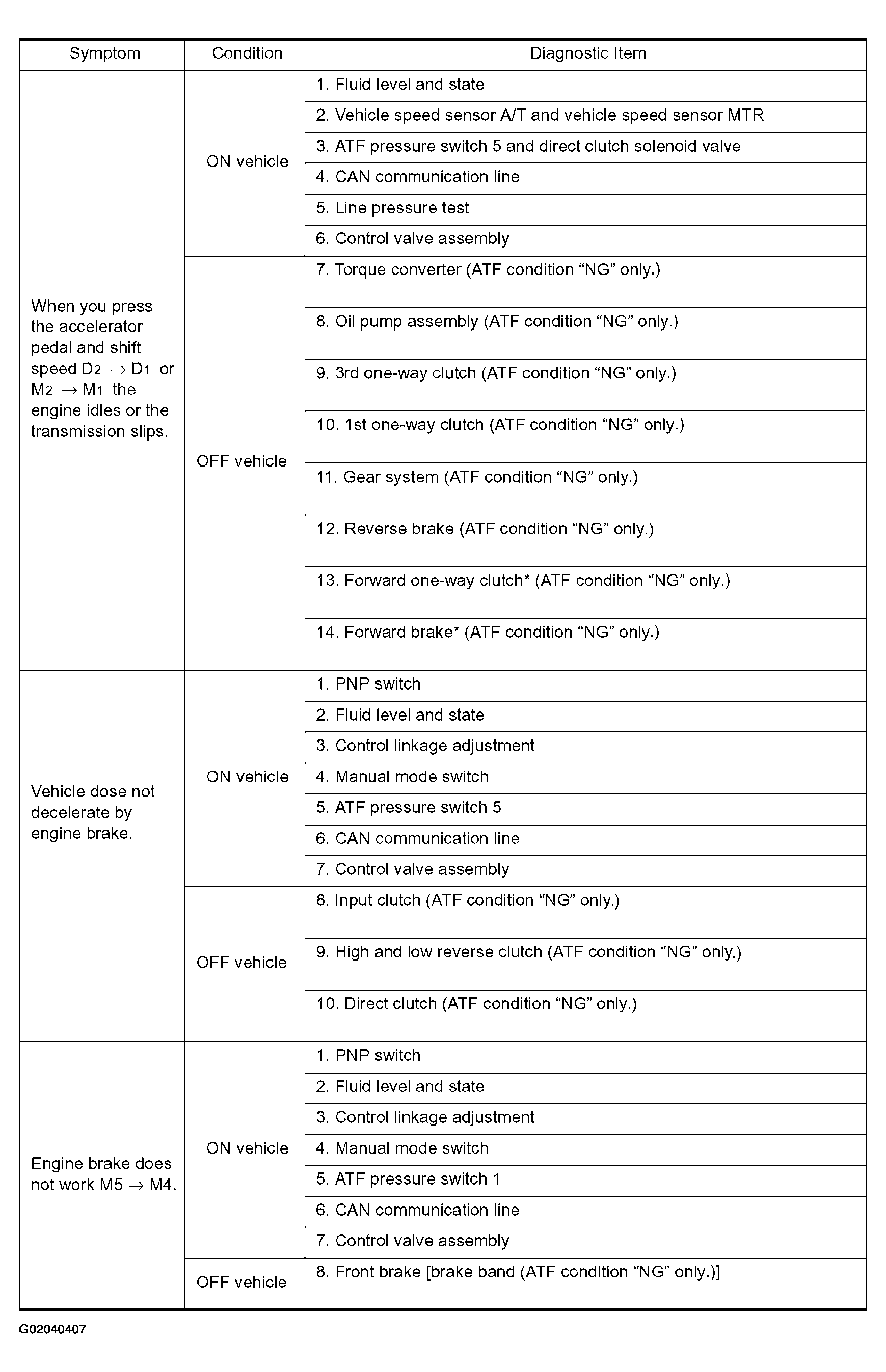

Fig 15: Problem Symptom Chart (15 Of 24)

G02040407

Courtesy of NISSAN MOTOR CO., U.S.A.

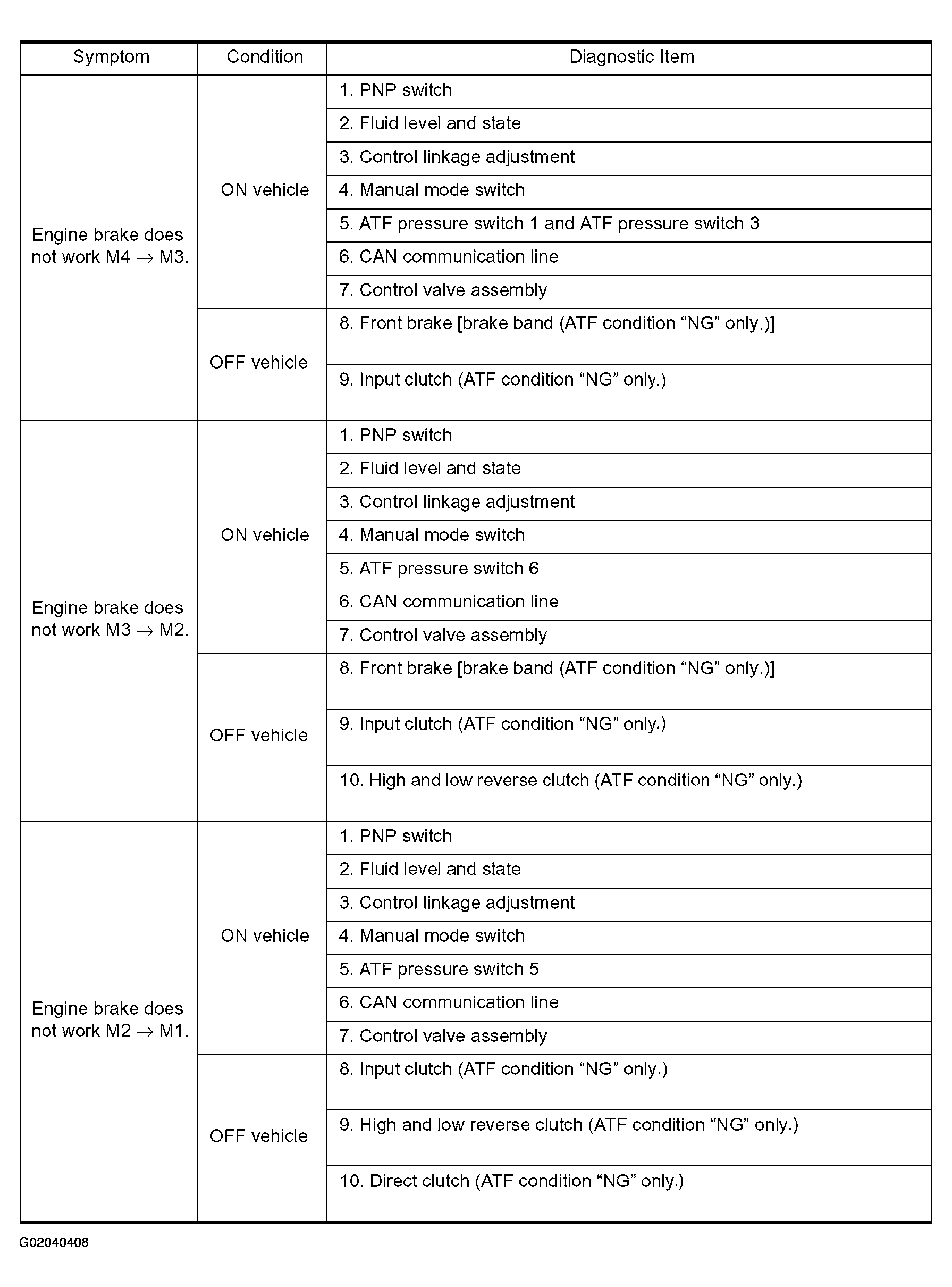

Fig 16: Problem Symptom Chart (16 Of 24)

G02040408

Courtesy of NISSAN MOTOR CO., U.S.A.

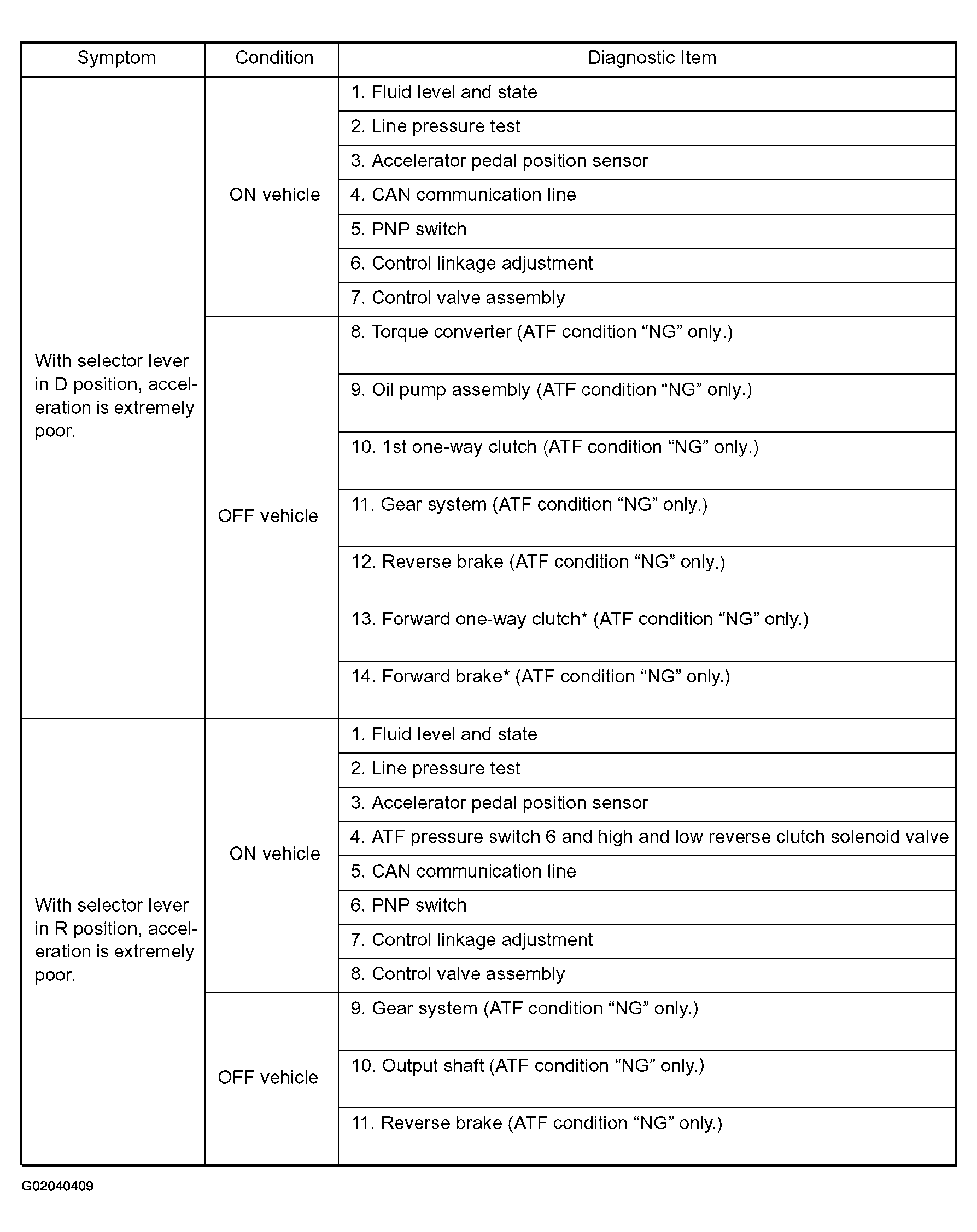

Fig 17: Problem Symptom Chart (17 Of 24)

G02040409

Courtesy of NISSAN MOTOR CO., U.S.A.

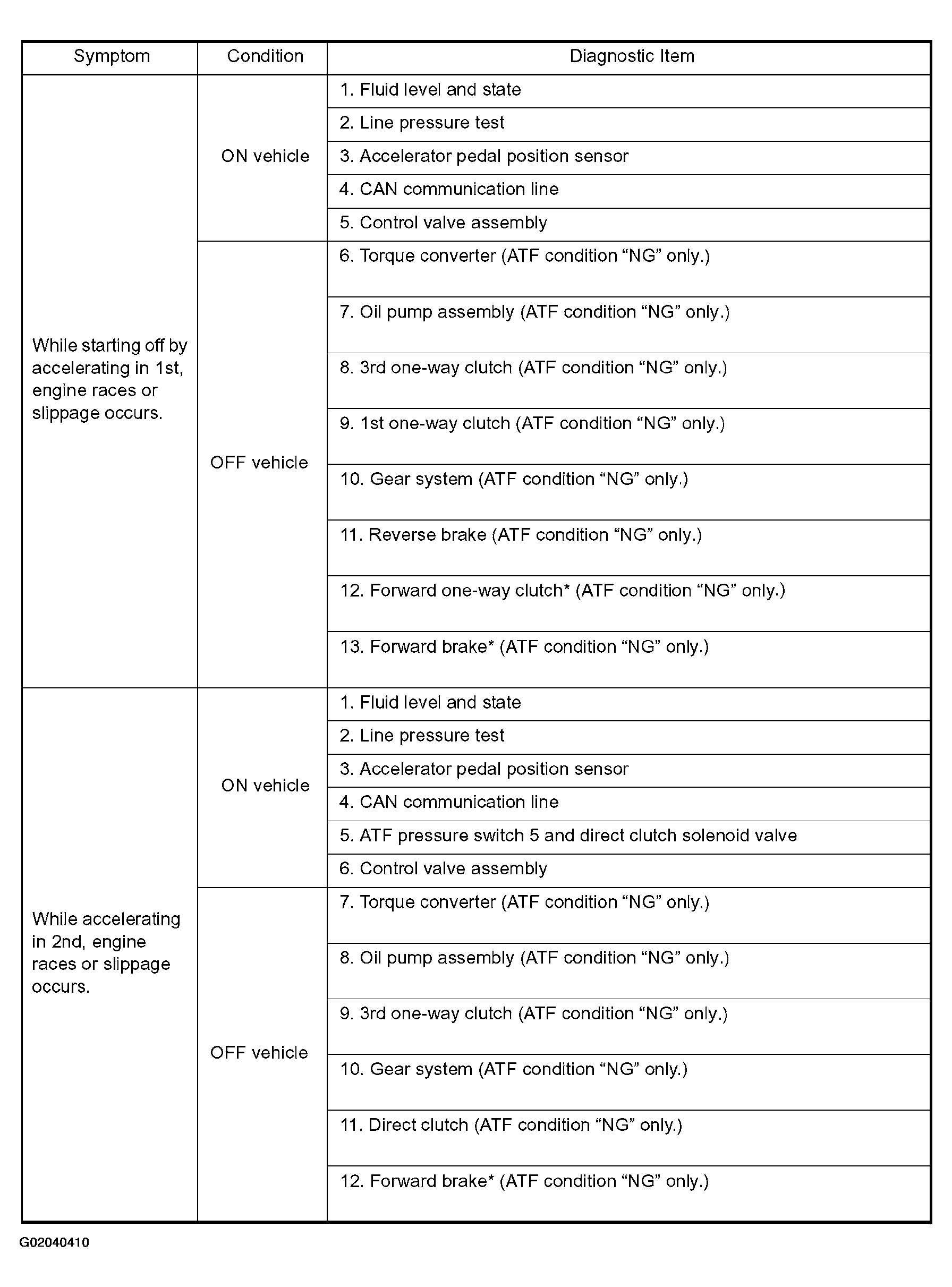

Fig 18: Problem Symptom Chart (18 Of 24)

G02040410

Courtesy of NISSAN MOTOR CO., U.S.A.

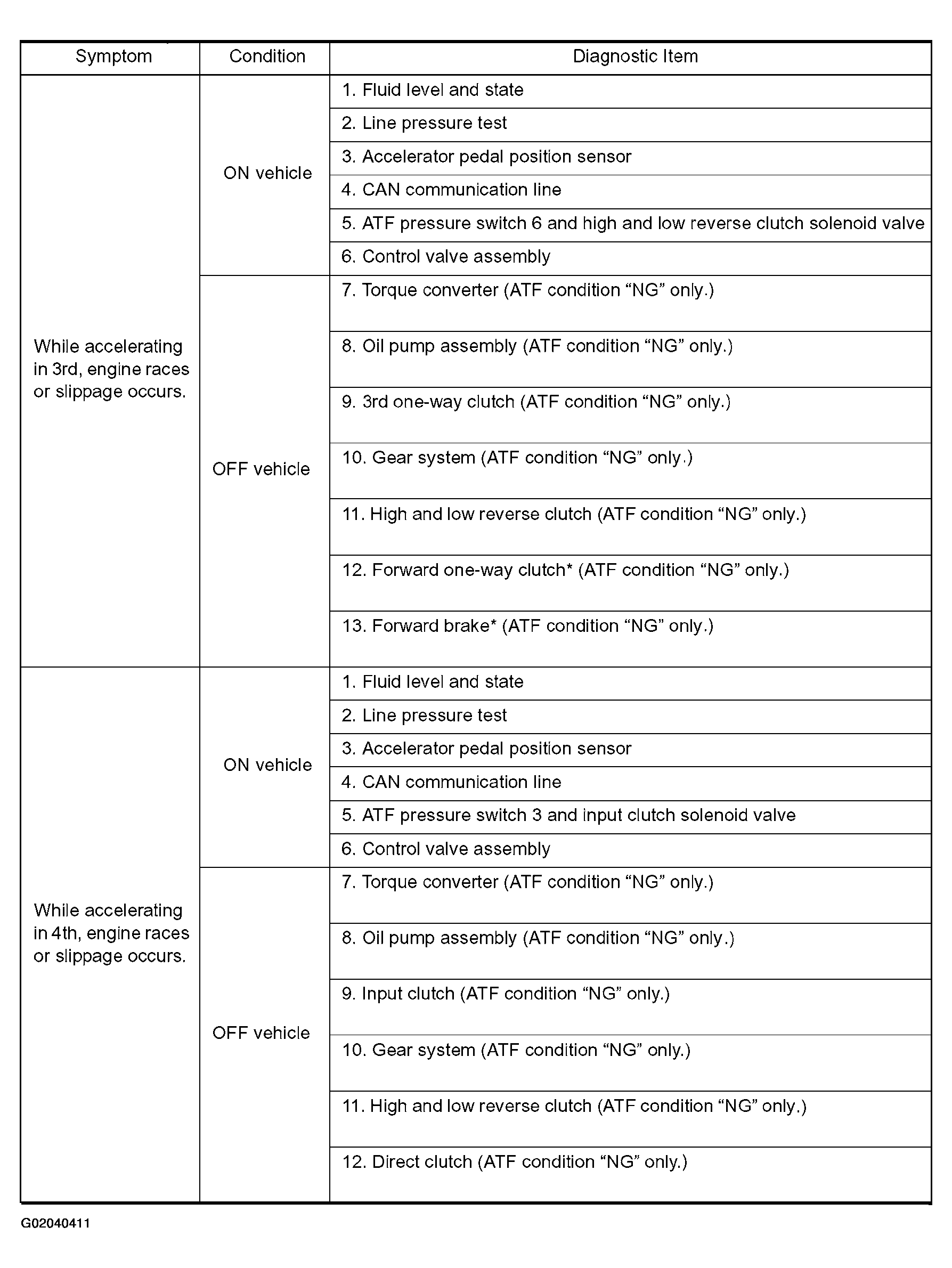

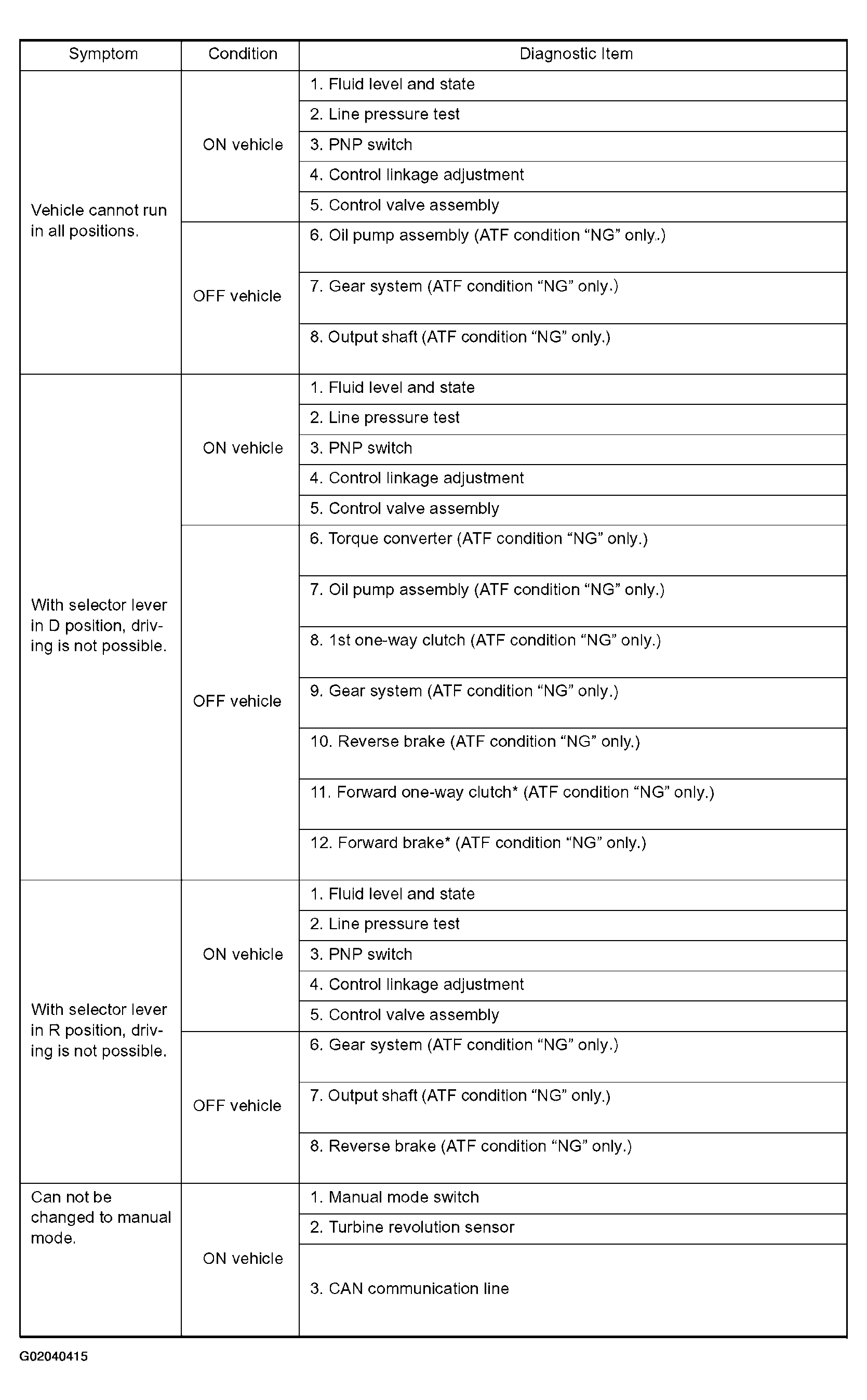

Fig 19: Problem Symptom Chart (19 Of 24)

G02040411

Courtesy of NISSAN MOTOR CO., U.S.A.

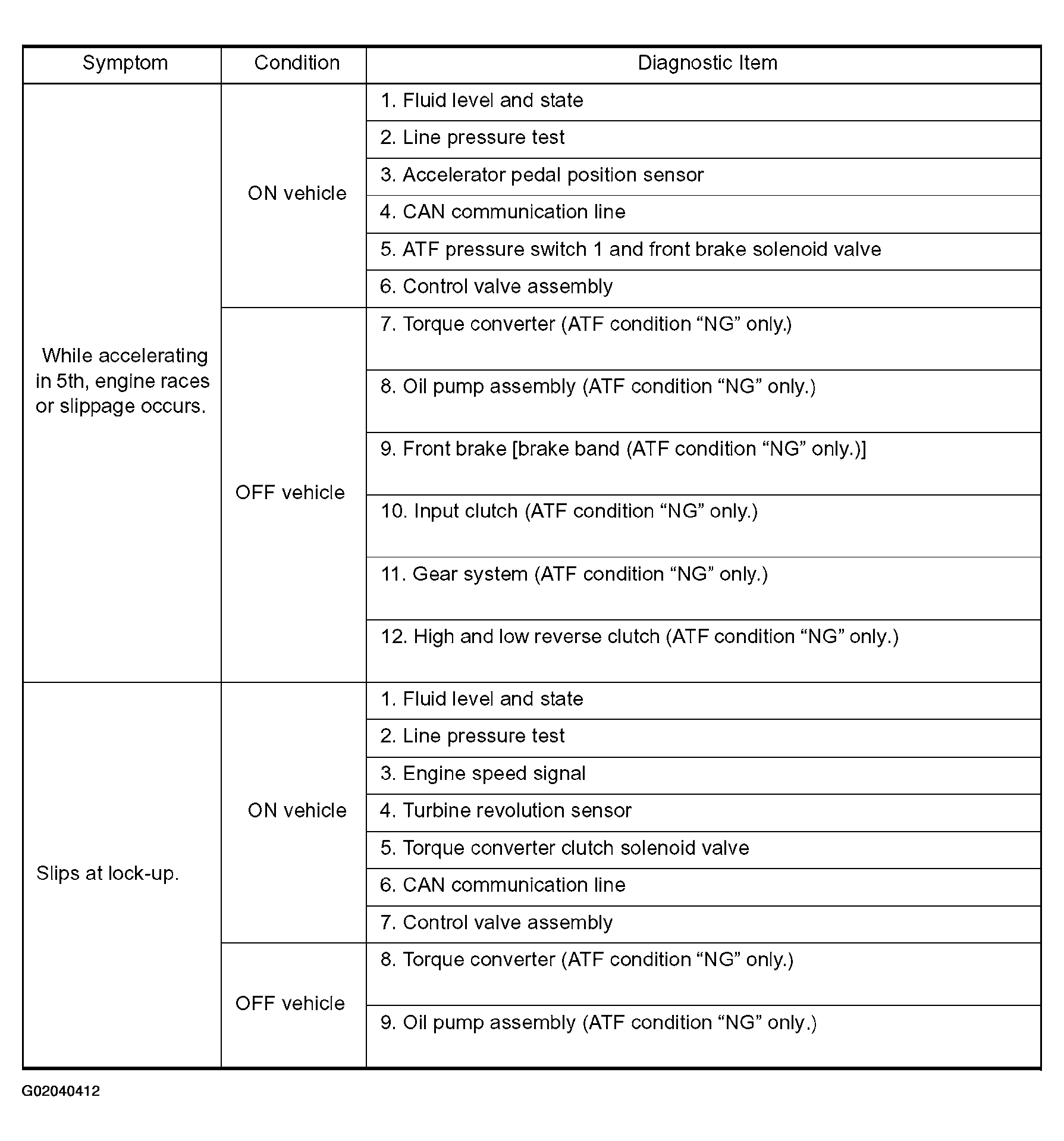

Fig 20: Problem Symptom Chart (20 Of 24)

G02040412

Courtesy of NISSAN MOTOR CO., U.S.A.

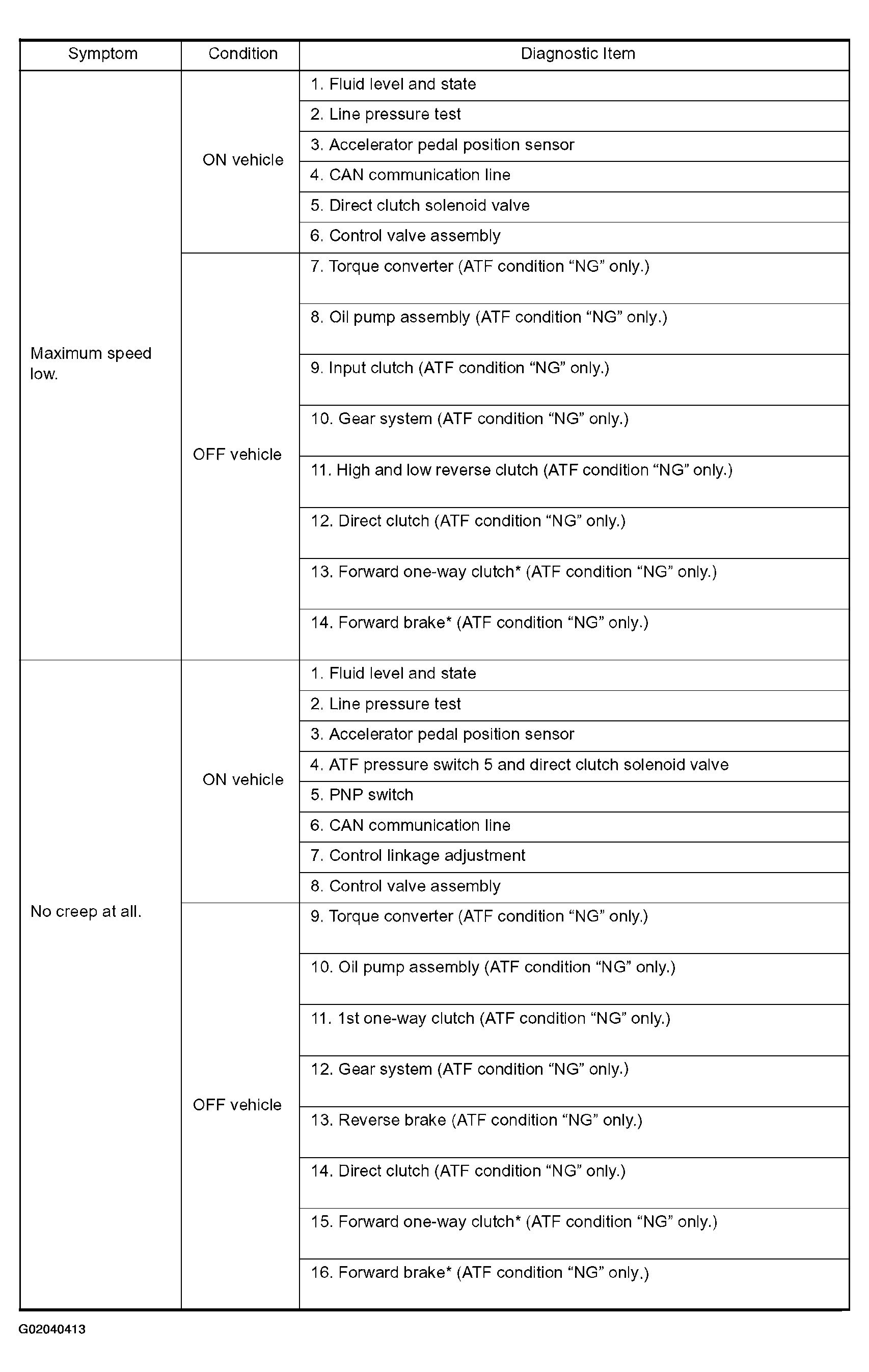

Fig 21: Problem Symptom Chart (21 Of 24)

G02040413

Courtesy of NISSAN MOTOR CO., U.S.A.

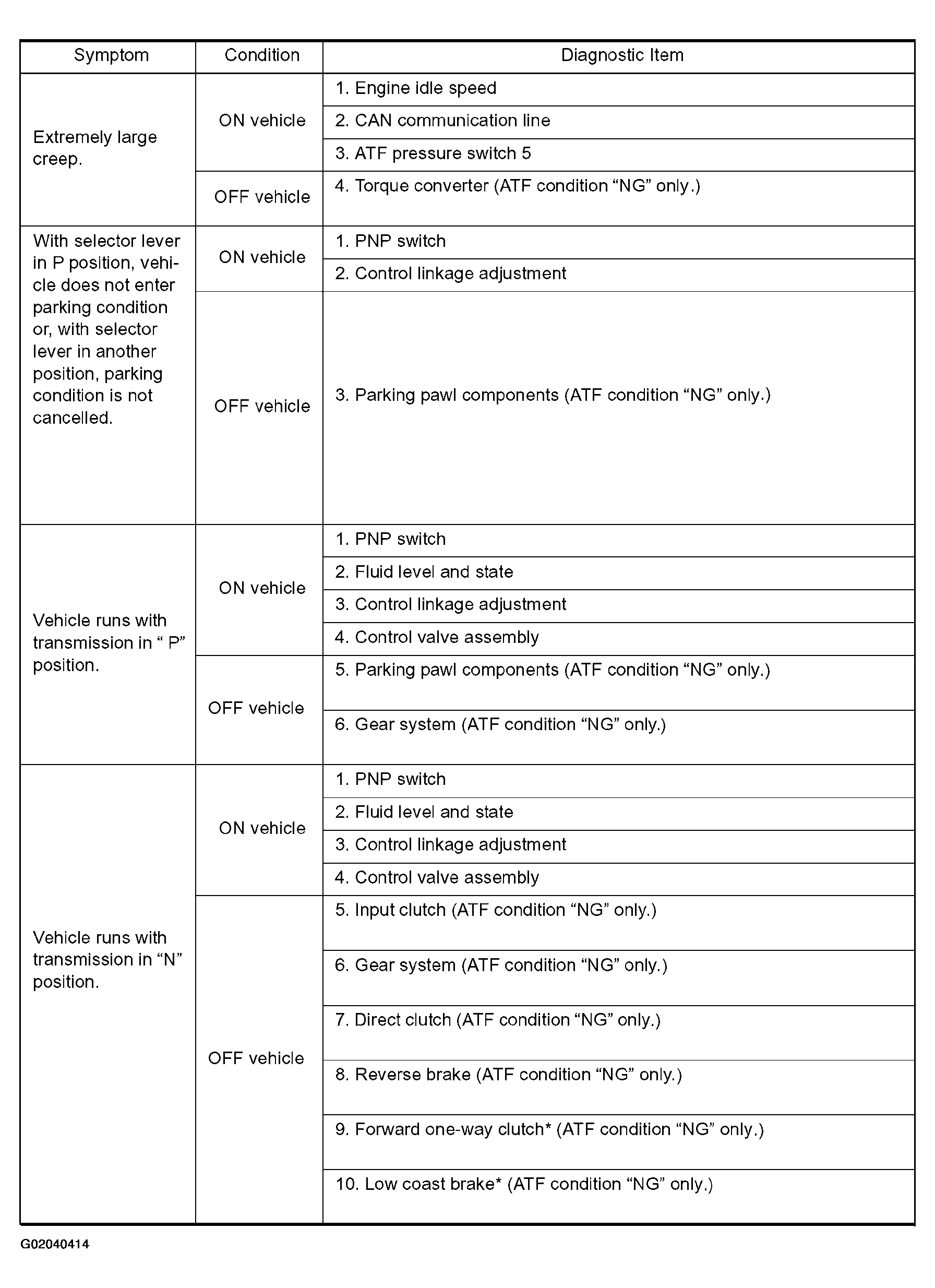

Fig 22: Problem Symptom Chart (22 Of 24)

G02040414

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 23: Problem Symptom Chart (23 Of 24)

G02040415

Courtesy of NISSAN MOTOR CO., U.S.A.

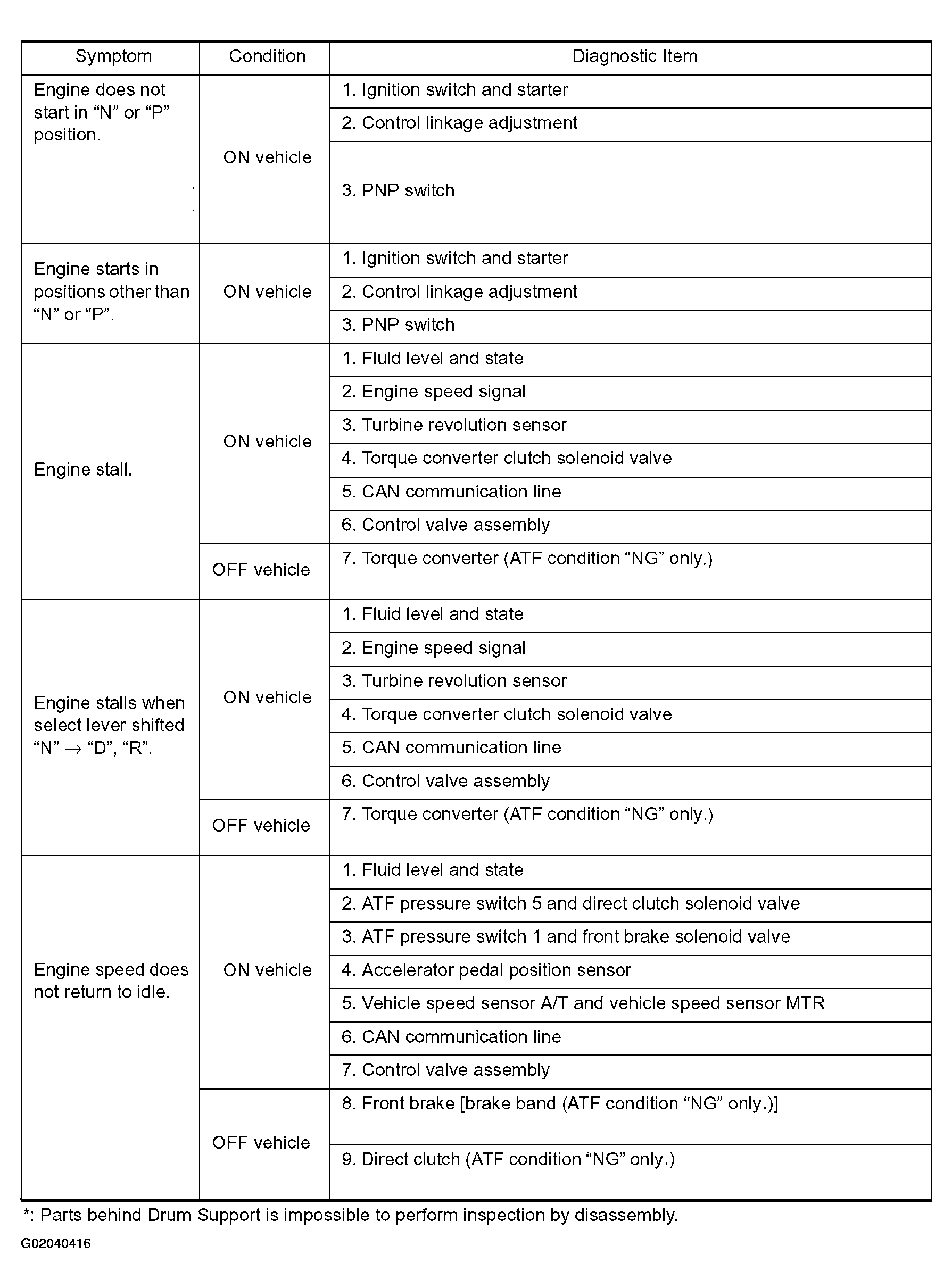

Fig 24: Problem Symptom Chart (24 Of 24)

G02040416

Courtesy of NISSAN MOTOR CO., U.S.A.
