CONSULT-II Setting Procedure

For details, refer to the separate "CONSULT-II Operation Manual".

Turn ignition switch "OFF".
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in instrument lower panel on driver side.

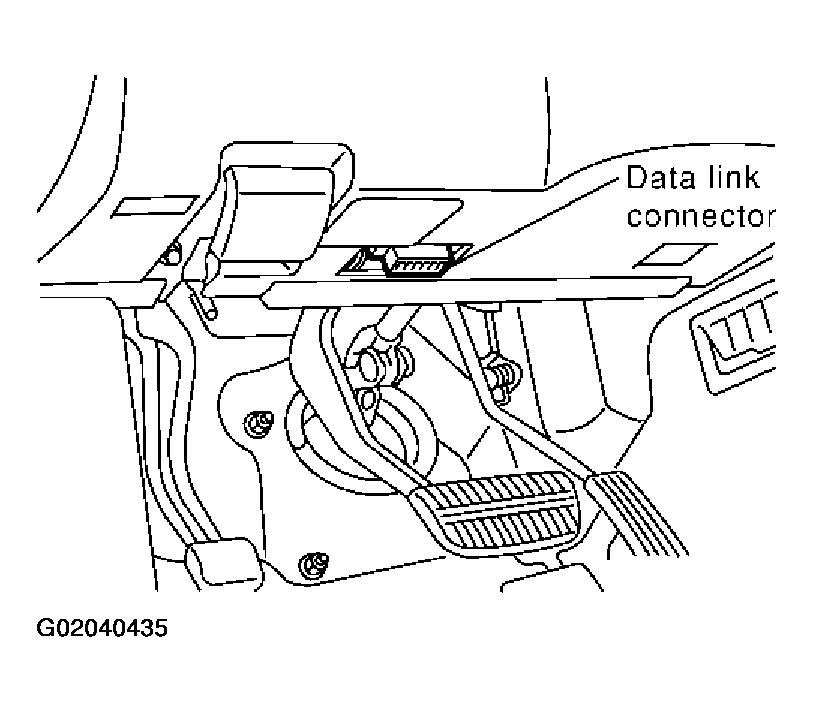

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START".

Fig 2: CONSULT-II Display - Touch "START"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A/T".
If "A/T" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: CONSULT-II Display - Touch "A/T"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DTC WORK SUPPORT".

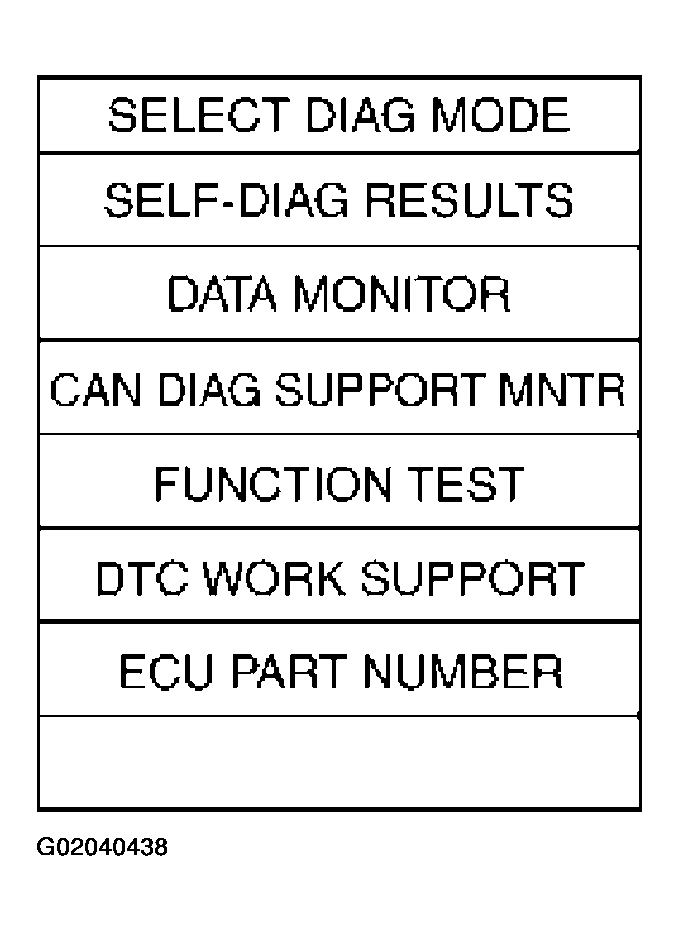

Fig 4: CONSULT-II Display - Touch "DTC WORK SUPPORT"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch select item menu.

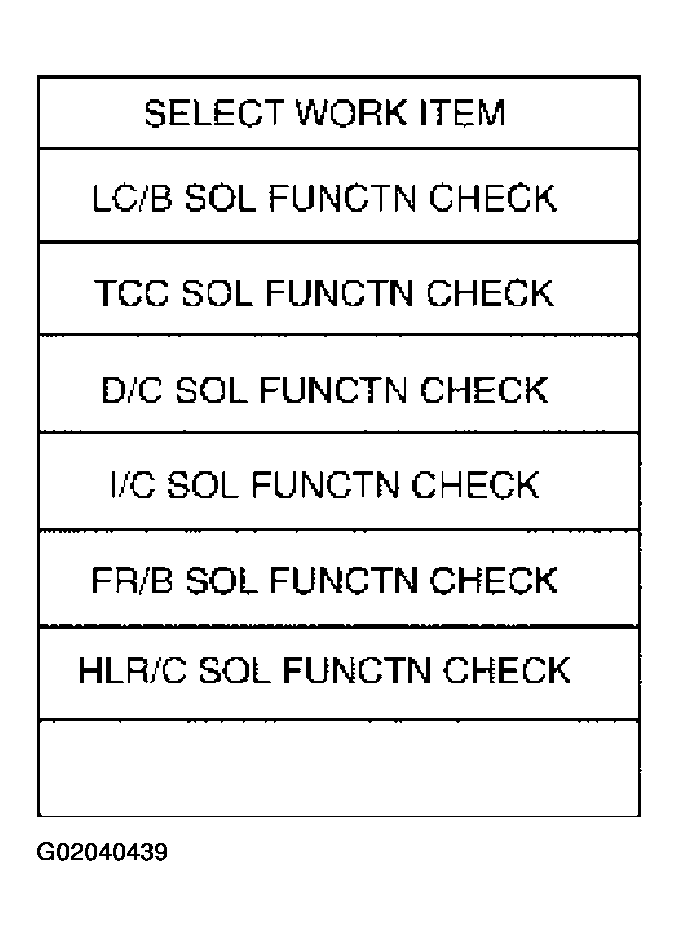

Fig 5: CONSULT-II Display - Touch Select Item Menu
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

Fig 6: CONSULT-II Display - Touch "START"
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

Fig 7: CONSULT-II Display - Performing Driving Test (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".
Fig 8: CONSULT-II Display - Performing Driving Test (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE ".
Perform test drive to check gear shift feeling in accordance with instructions displayed.
Touch "YES" or "NO".
CONSULT-II procedure is ended.

Fig 9: CONSULT-II Display - Touch "YES" Or "NO"
Courtesy of NISSAN MOTOR CO., U.S.A.

If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE ".

Fig 10: CONSULT-II Display - OK
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: CONSULT-II Display - NG
Courtesy of NISSAN MOTOR CO., U.S.A.
