A/T Fluid Temperature Sensor

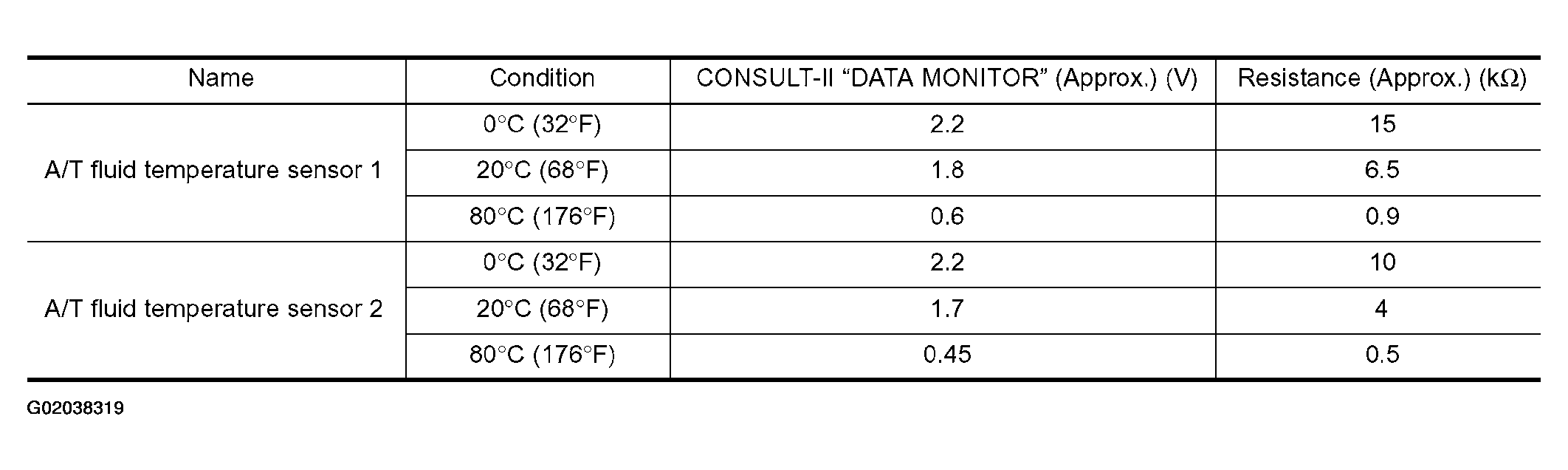

Fig 1: Identifying A/T Fluid Temperature Sensor Table

G02038319

Courtesy of NISSAN MOTOR CO., U.S.A.
