Rear Suspension: Description

NOTE: For information on active damper suspension system, see appropriate ELECTRONIC SUSPENSION - Q45 article.

Q45 uses an independent multi-link suspension system with coil springs and stabilizer bar. See Fig 1 and Fig 2 .

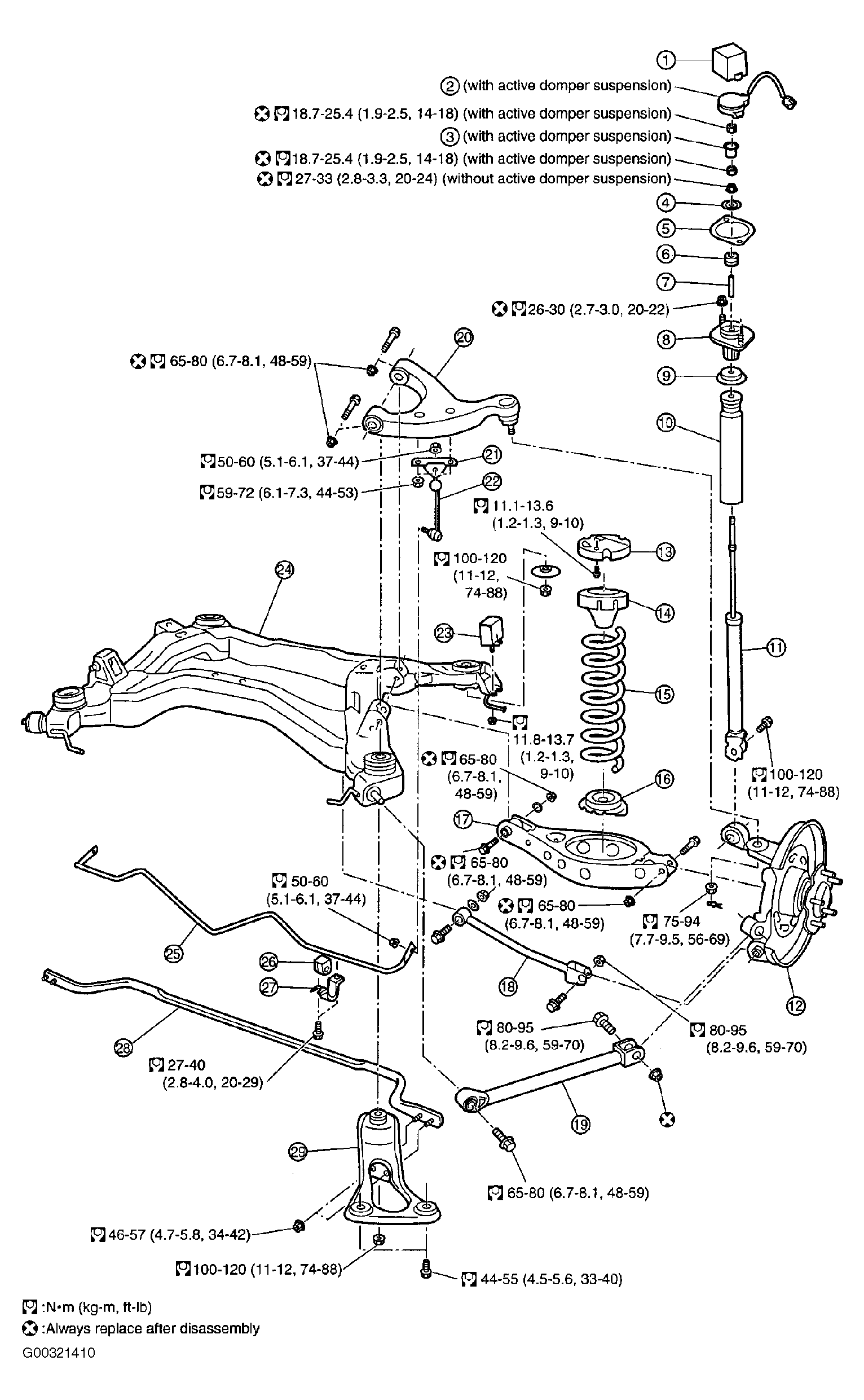

Fig 1: Exploded View Of Rear Suspension Components (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Exploded View Of Rear Suspension Components (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
