Disassembly and Assembly: Notes

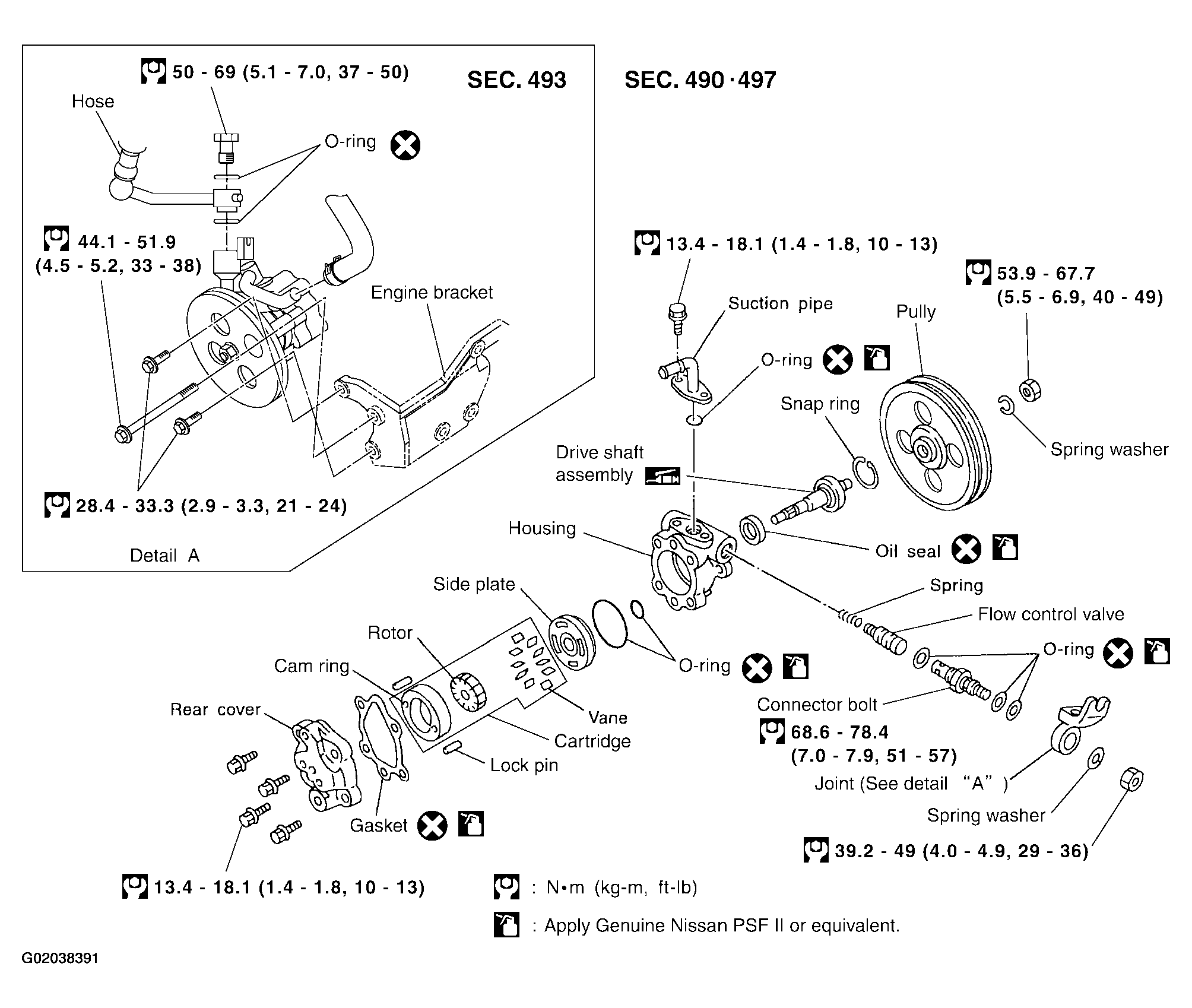

Fig 1: Exploded View Of Power Steering Oil Pump Components And Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
