Navigation System Map DVD Application Chart (ITB03-025A)

Publication date: 2003-08-12
Reference number: ITB03-025A
Supersedes refnos: ITB03-025

NAVIGATION SYSTEM MAP DVD APPLICATION CHART

NAVIGATION SYSTEM MAP DVD APPLICATION CHART

TECHNICAL SERVICE BULLETIN

Reference Number(s): ITB03-025A, Date of Issue:  August 12, 2003
INFINITI: 2003-2004 G35, M45, FX35/45; 2002-2004 Q45
CLASSIFICATION: EL03-012A
SECTION: Electrical System
APPLIED VEHICLE(S): 2003-2004 G35 Coupe (CV35); 2003-2004 G35 Coupe (CV35); 2003-2004 M45 (Y34); 2002-2004 Q45 (F50); 2003-2004 FX35/45 (S50)
Superceded Bulletin(s): ITB03-025
NOTE: The Applied Vehicles section and chart in this bulletin have been amended. Please discard all paper copies of ITB03-025.

SERVICE INFORMATION

The following application chart identifies the current Infiniti Navigation Map DVDs available:

NAVIGATION SYSTEM MAP DVD APPLICATION

Vehicle MY P/N DVD Disc Color Picture on Disc
G35 Coupe 2003 25920 CR920 Red U.S. & Canada
G35 Coupe 2004 25920 CR923 Green U.S. & Canada
G35 Sedan 2003 25920 AM600 White U.S. & Canada
G35 Sedan 2003.5 (1) 25920 CR920 Red U.S. & Canada
G35 Sedan 2004 25920 CR923 Green U.S. & Canada
M45 2003 25920 CR920 Red U.S. & Canada
M45 2004 25920 CR923 Green U.S. & Canada
Q45 2002 25920 AR210 White U.S. Only
Q45 2002+ (1) 25920 CR920 Red U.S. & Canada
Q45 2003 25920 CR920 Red U.S. & Canada
Q45 2004 25920 CR923 Green U.S. & Canada
FX35/45 2003 25920 CR920 Red U.S. & Canada
FX35/45 2004 25920 CR923 Green U.S. & Canada
(1) In many cases the latest Navigation Map DVD cannot be used in an "older" vehicle (see NOTES, below).
NOTE:
  1. 2003.5 G35 Sedan ("mid-year") can be identified by the VIN.
    • 12th VIN character for 2003.5 is 3.
    • 12th VIN character for 2003 is 0.
  2. 2002 MY Q45 vehicles used 2 different levels of Navigation System software.
    • 2002+ is the Red DVD Disc that must be used on all 2002 MY Q45 vehicles after they've had the Operating System upgrade.
    • This software upgrade CD-ROM was not available for service until early-May 2003.
    • The vehicle Navigation System software level ("old" vs. "new") can be identified using the procedure.
NOTE:
  • The red and green discs are interchangeable.
  • These discs can be ordered from the PDCs like any other service part.

2002 Q45 "SOFTWARE VERSION" IDENTIFICATION PROCEDURE

NOTE: This procedure is ONLY for 2002 Q45.
  1. Start the engine.
  2. Turn the audio system off.
  3. Press and hold the "INFO" switch as shown in Fig 1 .

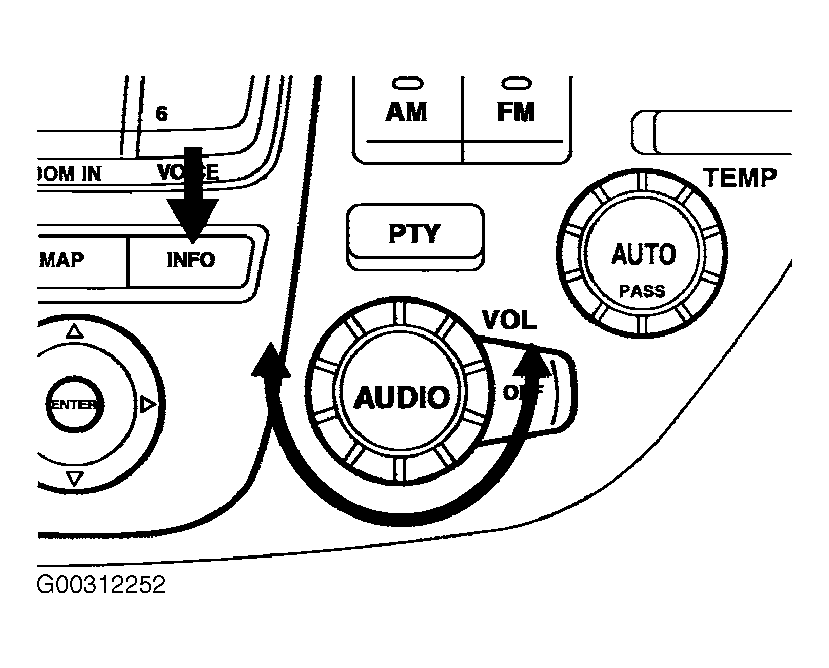

    Fig 1: INFO Switch Location
    G00312252
  4. Turn the volume control dial either clockwise or counterclockwise for 30 clicks or more until a short beep sounds. This will let you know the self-diagnosis mode has started. See Fig 1 .
  5. Release the "INFO" switch.
  6. Press and hold the "INFO" switch again.
  7. Turn the volume control dial either clockwise or counterclockwise for 30 clicks or more until a short beep sounds. This will let you know the self-diagnosis Second Phase ("deep" diagnosis) mode has started.
  8. Select "Software Version" from the choices on the screen.
  9. Check which software version is listed in the box entitled "FLASH2".
  10. Then refer to the chart below to determine the proper Map DVD for this vehicle.
MAP DVD INFORMATION

Vehicle MY Software Version P/N DVD Disc Color Picture on Disc
Q45 2002 NEC22*** 25920 AR210 White U.S. Only
Q45 2002+ NEC32*** 25920 CR920 Red U.S. & Canada
