Home >> Infiniti >> 2003 >> Q45 >> Repair and Diagnosis >> Quick Lookups >> Technical Bulletins >> Technical Service Bulletins >> Identification >> Client Diagnostic Worksheet Now Available (ITB04-017)

Client Diagnostic Worksheet Now Available (ITB04-017)

Publication date: 2004-04-05
Reference number: ITB04-017

CLIENT DIAGNOSTIC WORKSHEET NOW AVAILABLE

CLIENT DIAGNOSTIC WORKSHEET NOW AVAILABLE

TECHNICAL SERVICE BULLETIN

Reference Number(s): ITB04-017, Date of Issue:  April 5, 2004
INFINITI: All Infiniti
CLASSIFICATION: GI04-002
SECTION: General Information
APPLIED VEHICLE(S): All Infiniti

SERVICE INFORMATION

* There's a Squeak & Rattle Diagnostic worksheet that is similar. That worksheet is still required for warranty documentation.

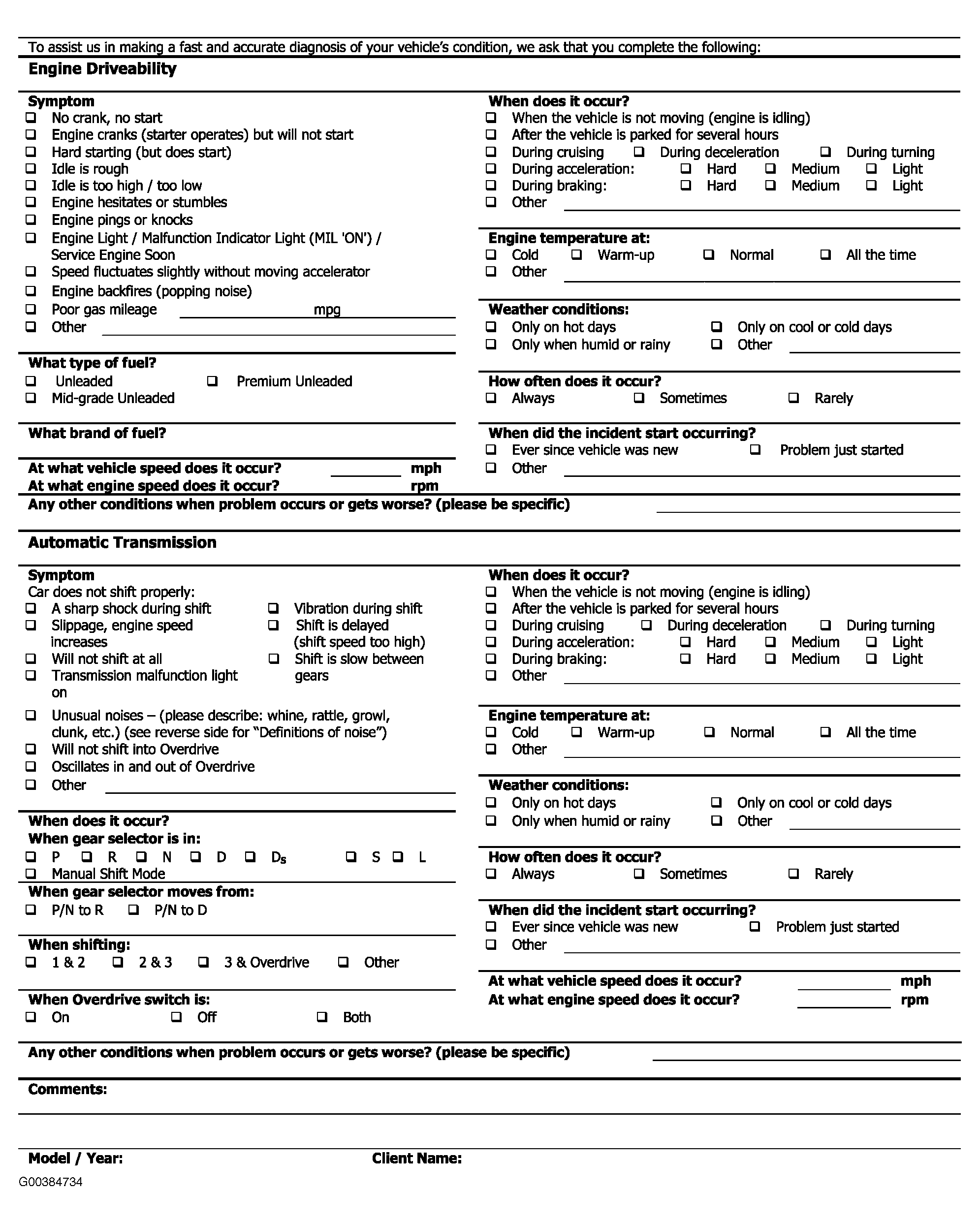

Fig 1: Client Diagnostic Worksheet Page 1 of 2
G00384734

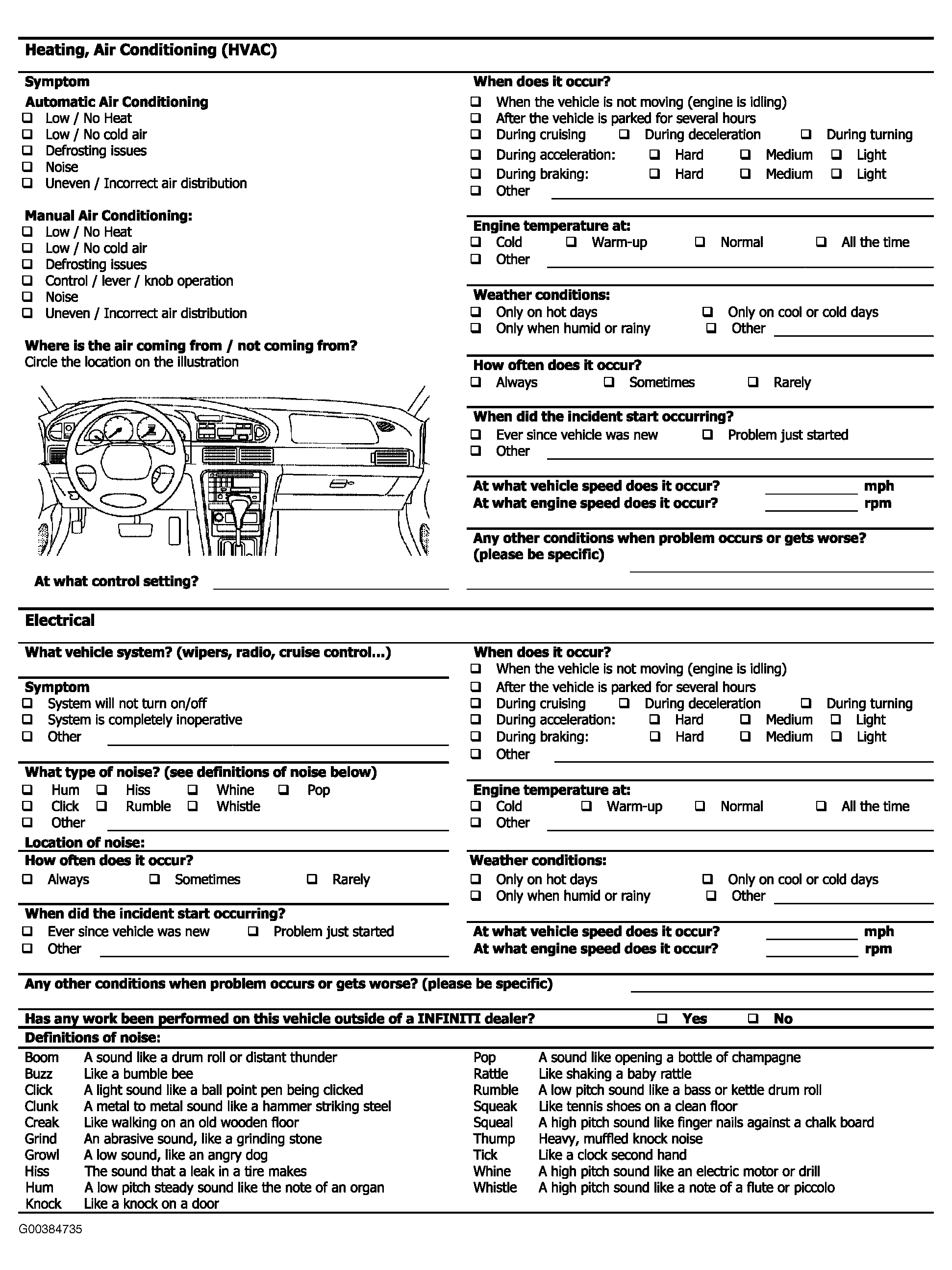

Fig 2: Client Diagnostic Worksheet Page 2 of 2
G00384735
