Checking Radiator Cap

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull negative pressure valve to open it, and check that it closes completely when released.

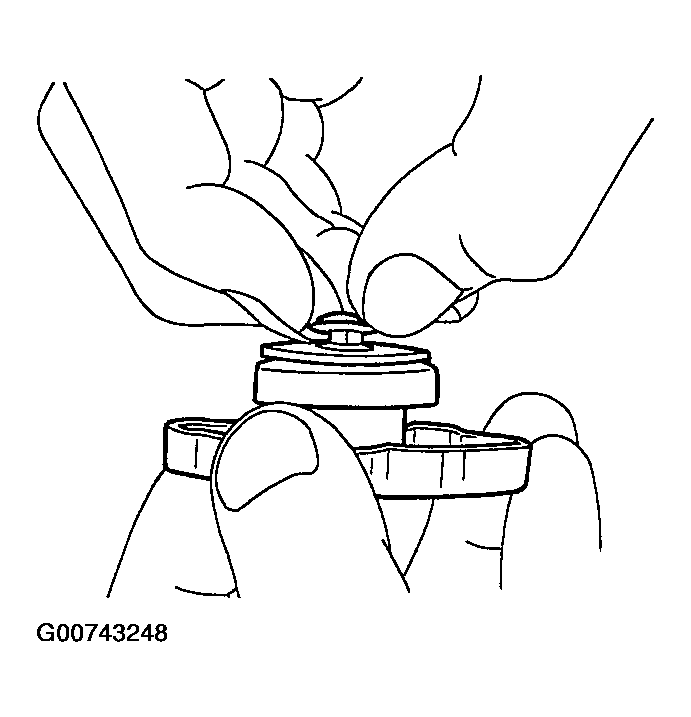

      Fig 1: Checking Negative Pressure Valve Condition
      G00743248Courtesy of NISSAN MOTOR CO., U.S.A.
    • Check that there is no dirt or damage on the valve seat of radiator cap negative-pressure valve.
    • Check that there are no abnormalities in the opening and closing conditions of negative-pressure valve.
  2. Check radiator cap relief pressure.

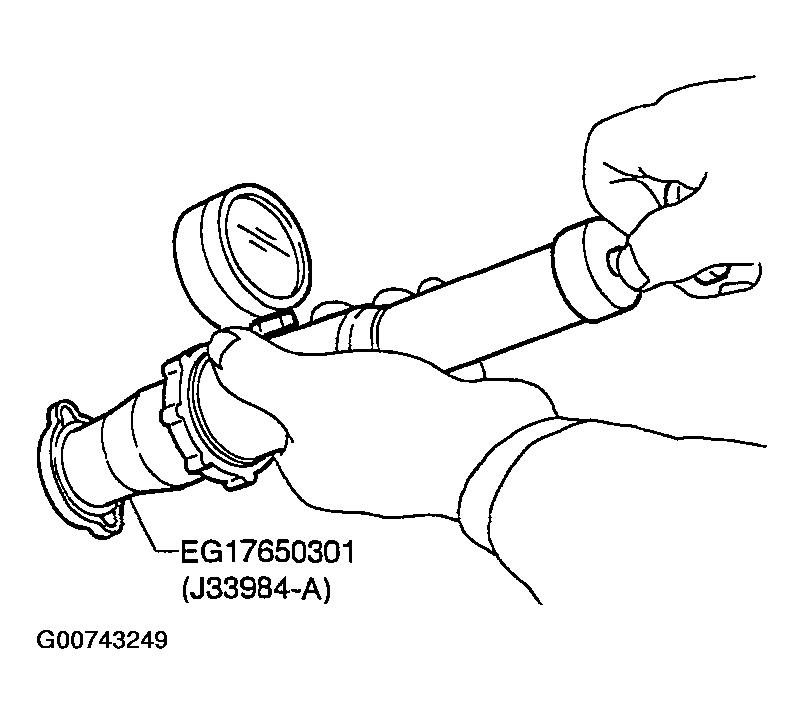

    Fig 2: Checking Radiator Cap Relief Pressure
    G00743249Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Standard : 78 - 98 kPa (0.8-1.0 kg/cm2/, 11 - 14 psi)
    2. Limit : 59 kPa (0.6 kg/cm2/, 9 psi)
    • When connecting radiator cap to the radiator cap tester adapter (SST) and the radiator cap tester (Commercial service tool), apply engine coolant to the cap seal surface.
    • Replace radiator cap if there is an unusualness in negative-pressure valve, or if the open-valve pressure exceeds the limit.
