Intake Sensor

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

After disconnecting intake sensor connector M90, measure resistance between terminals 32 and 36 at sensor side, using the table below.

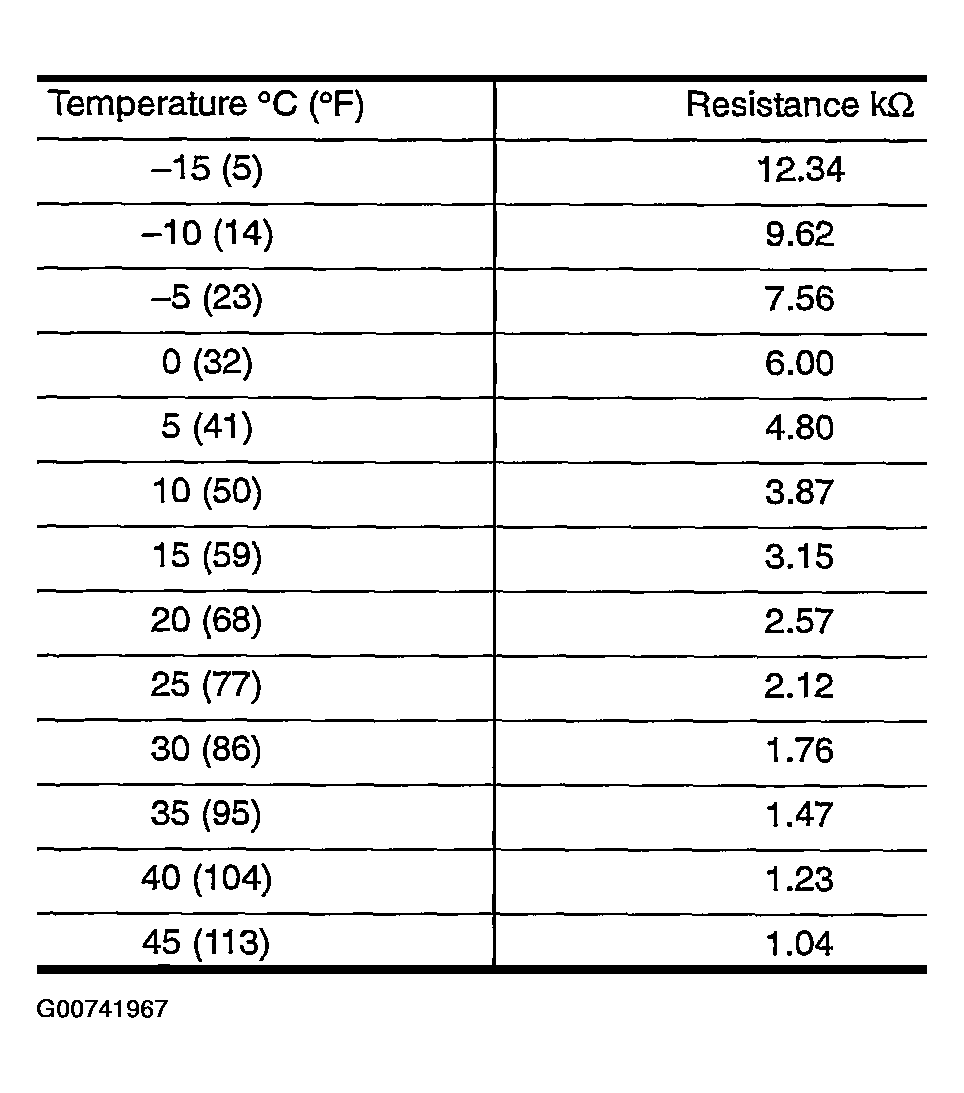

Fig 1: Displaying Measured Resistance Based On Conditions

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace intake sensor.

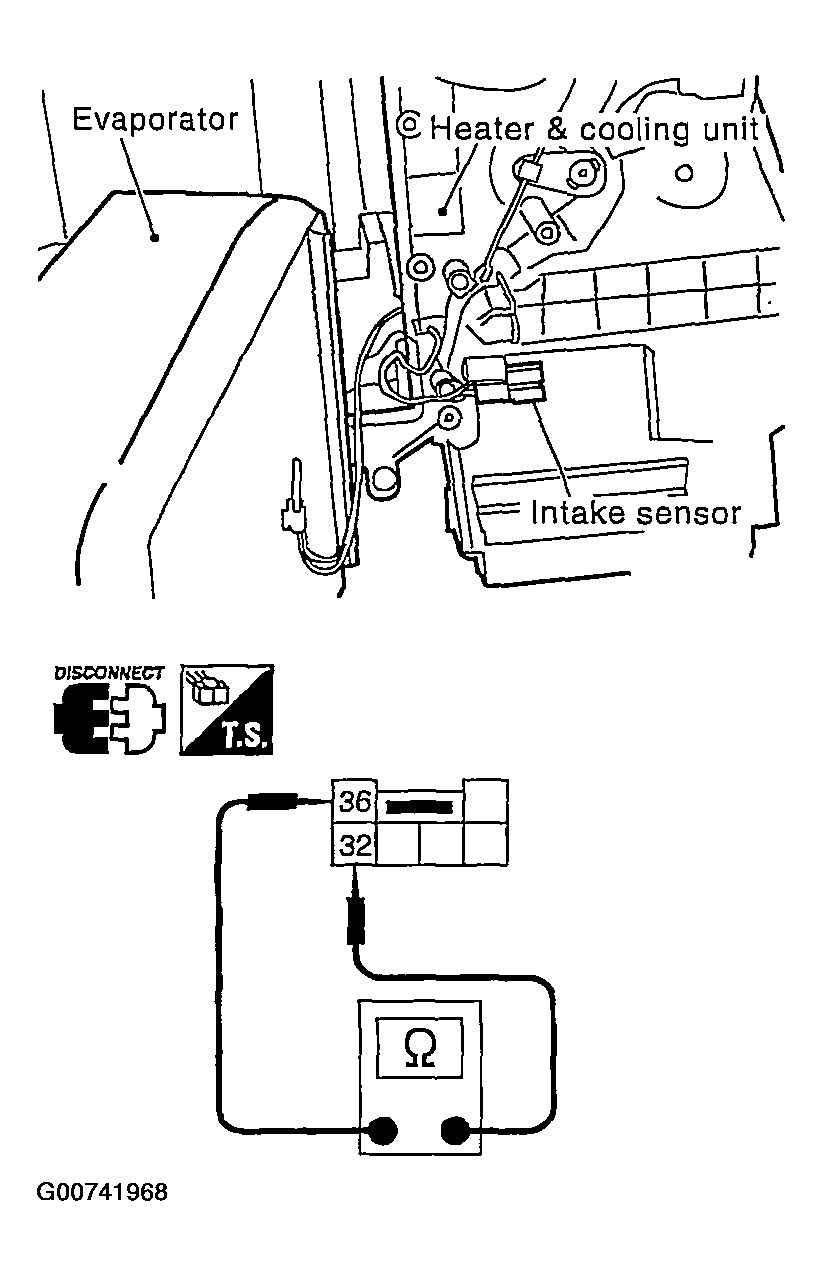

Fig 2: Measuring Intake Sensor Resistance

Courtesy of NISSAN MOTOR CO., U.S.A.
