Magnet Clutch Control

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

The ECM controls compressor operation using input signals from the refrigerant pressure sensor, throttle position sensor and auto amp.

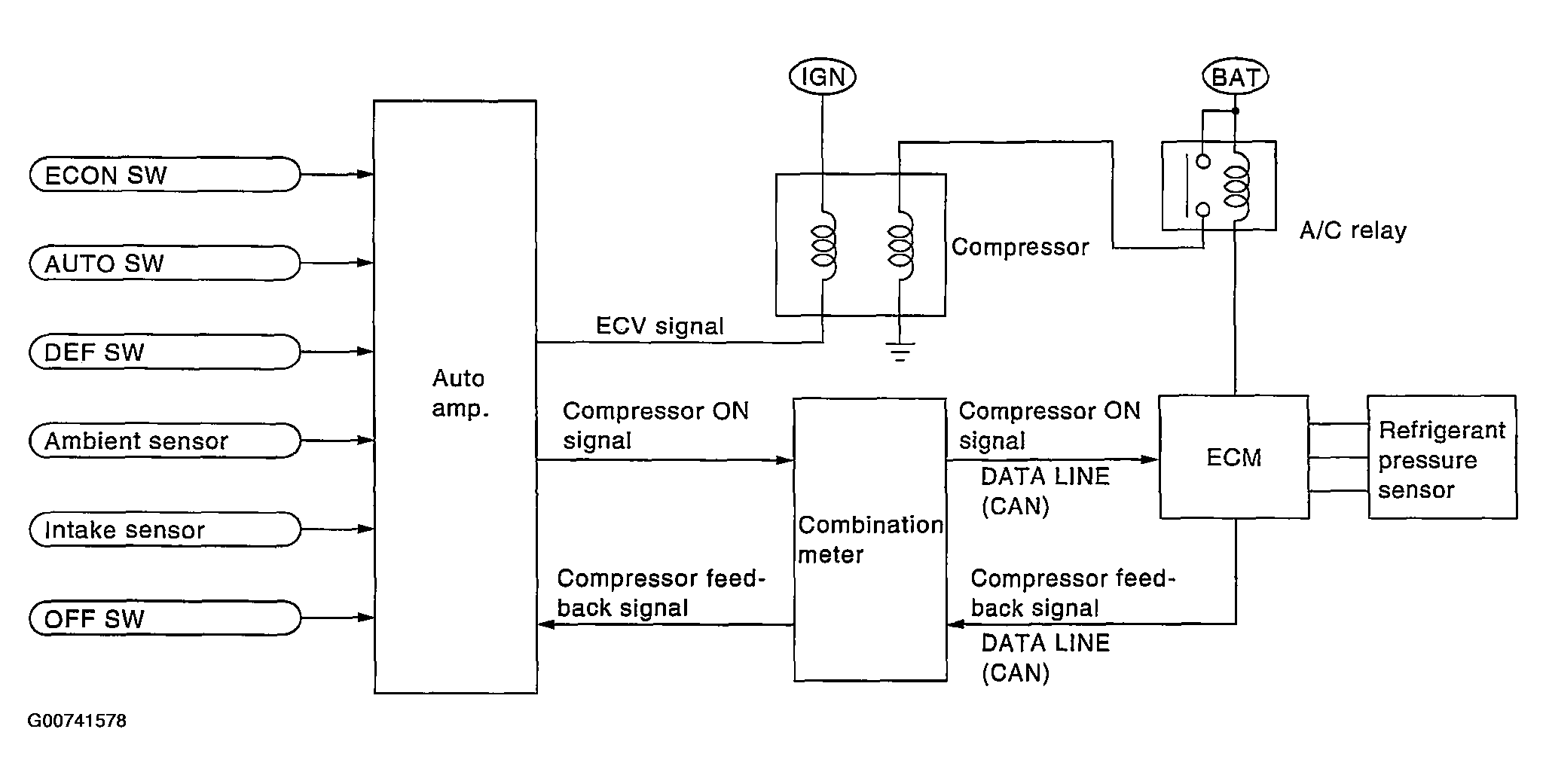

Fig 1: Describing Magnet Clutch Control Inputs
G00741578Courtesy of NISSAN MOTOR CO., U.S.A.
