Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

Outline

After removal of transmission, lift up engine assembly to remove it from vehicle.

Preparation

  1. Release fuel pressure. Refer to FUEL PRESSURE RELEASE .
  2. Remove engine cover. Refer to ENGINE ROOM COVER .
  3. Remove engine undercover with power tool.
  4. Drain engine coolant from radiator drain plug. Refer to CHANGING ENGINE COOLANT .
  5. Remove the following parts:

Engine Room Left

  1. Disconnect engine room harness from the engine side and set it aside for easier work.
  2. Disconnect heater hoses, and install plugs to avoid leakage of engine coolant.
  3. Disconnect wire bonding exhaust manifold cover to vehicle.
  4. Disconnect vacuum hose between vehicle and engine and set it aside.
  5. Remove reservoir tank for cooling fan.
  6. Remove A/C compressor from brackets, and install A/C compressor temporarily with ropes or equivalent to avoid applying any pressures on piping or disturbing installation or removal of any vehicle parts. Refer to REMOVAL AND INSTALLATION OF COMPRESSOR .

Engine Room Right

  1. Disconnect fuel hose at the engine side connection.
  2. Disconnect engine room harness from the engine side and set it aside for easier work.
  3. Disconnect wire bonding exhaust manifold cover to vehicle.
  4. Disconnect vacuum hose between vehicle and engine and set it aside.
  5. Disconnect reservoir tank for power steering from engine and move it aside for easier work.
  6. Move away relay case.

Vehicle Underbody

Removal Work

  1. Remove transmission assembly. Refer to TRANSMISSION ASSEMBLY .
  2. Install engine slingers into front of left bank cylinder head and rear of right bank cylinder head.
    1. Slinger bolts:
    2. : 30.4 - 36.3 N.m (3.1 - 3.7 kg-m, 23 - 26 ft-lb)
  3. Lift with hoist and secure engine in position.
  4. Remove engine mounting nuts on bottom surface.
  5. Carefully lift up engine assembly, avoiding interference with vehicle body, move it away and upward.

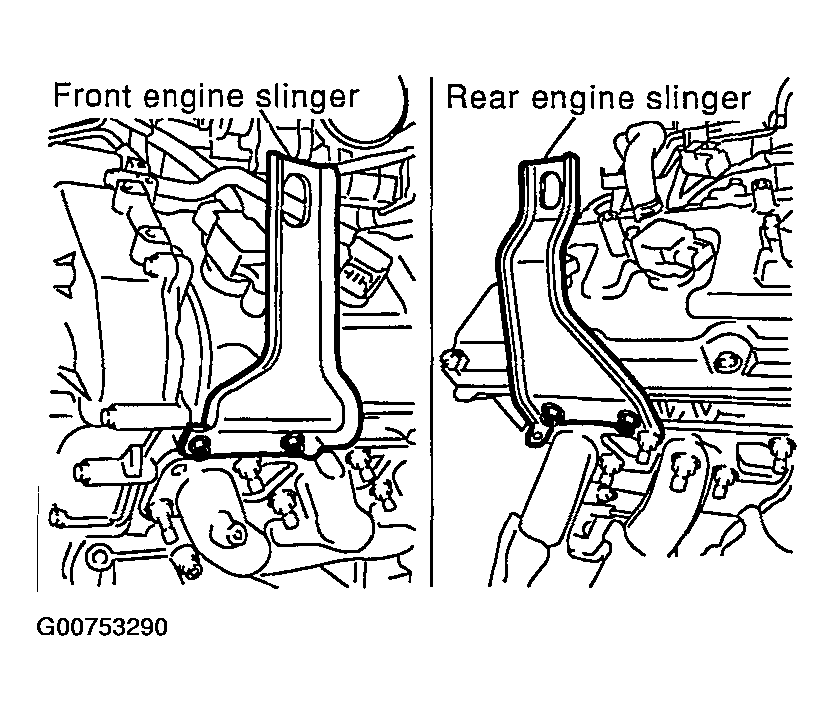

    Fig 1: Locating Engine Slingers
    G00753290Courtesy of NISSAN MOTOR CO., U.S.A.
  6. With engine assembly lifted up, remove rear end of exhaust manifold to avoid contact with vehicle. Refer to EXHAUST MANIFOLD AND THREE WAY CATALYST .
  7. Remove engine assembly from vehicle.
    CAUTION:
    • Before and during this lifting, always check if any harnesses are left connected.
    • Avoid damage to oil/grease smearing or spills onto engine mounting insulator.
