Engine Cooling System
>>
Overheating Cause Analysis
>>
Troubleshooting Chart
Troubleshooting Chart

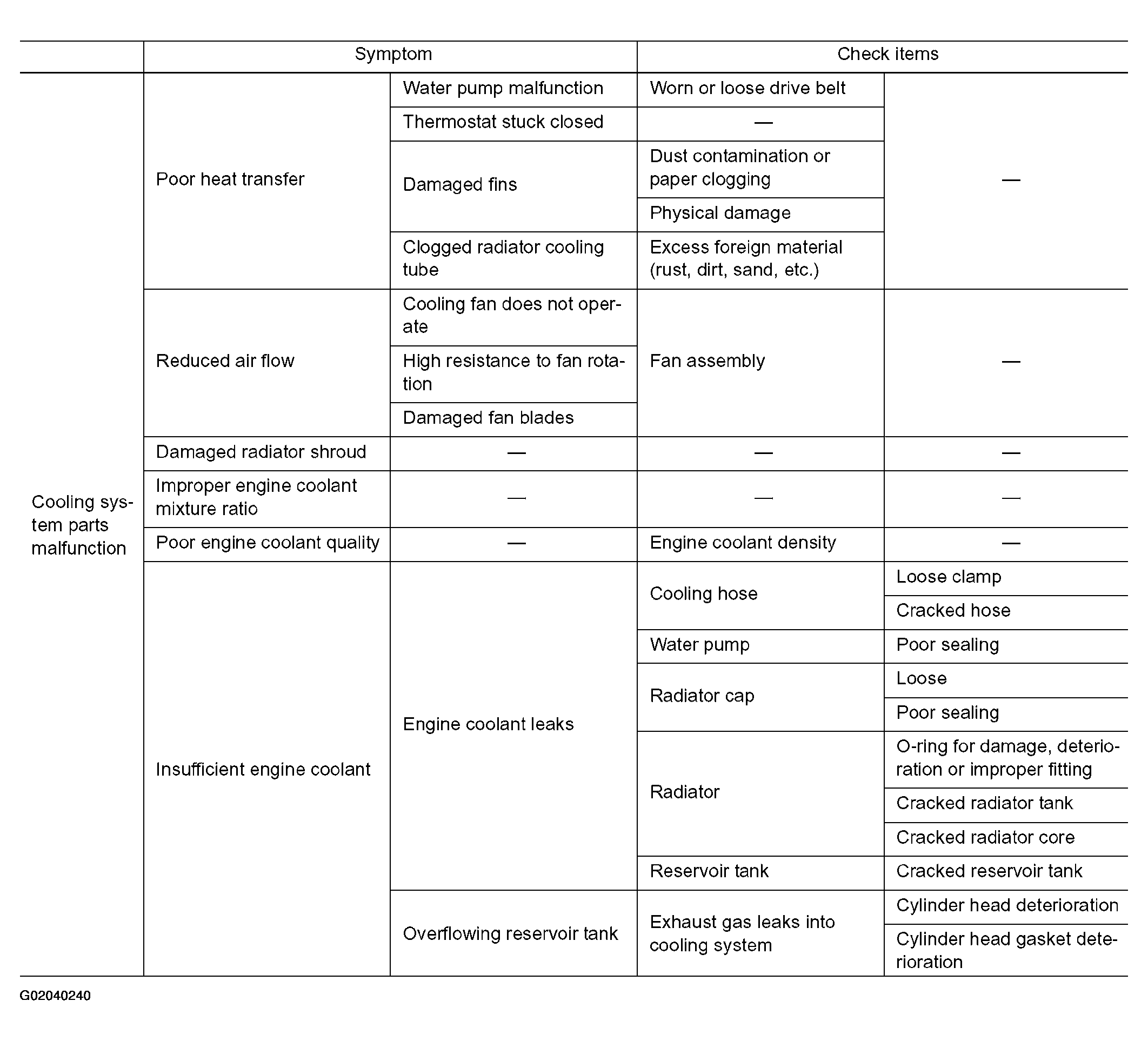

Fig 1: Troubleshooting Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

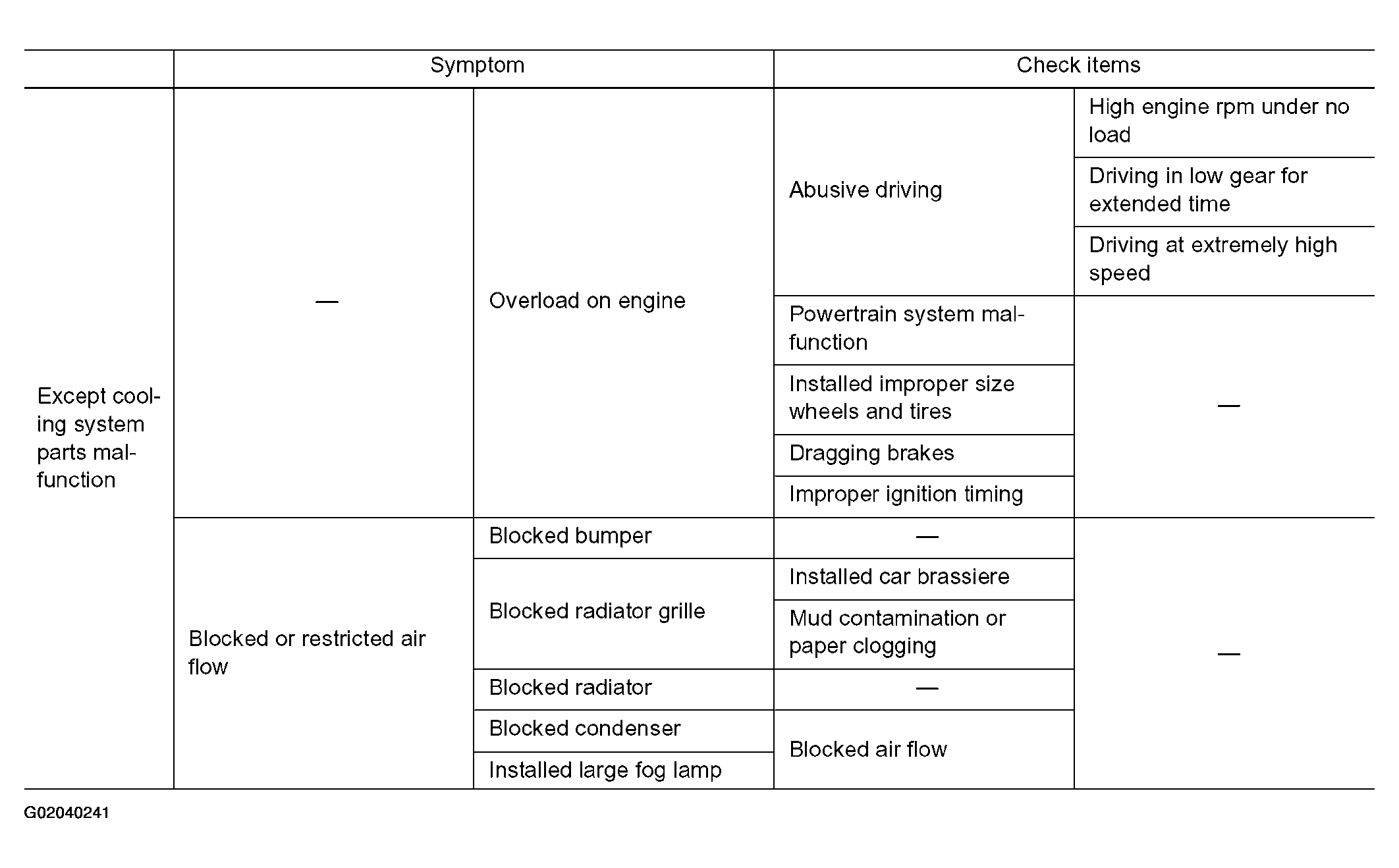

Fig 2: Troubleshooting Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
