Vehicle Information System: Notes

AV control unit is received vehicle information system of signals from combination meter.
AV control unit is communicating with BCM and combination meter.

Press "INFO" switch to display vehicle information display.

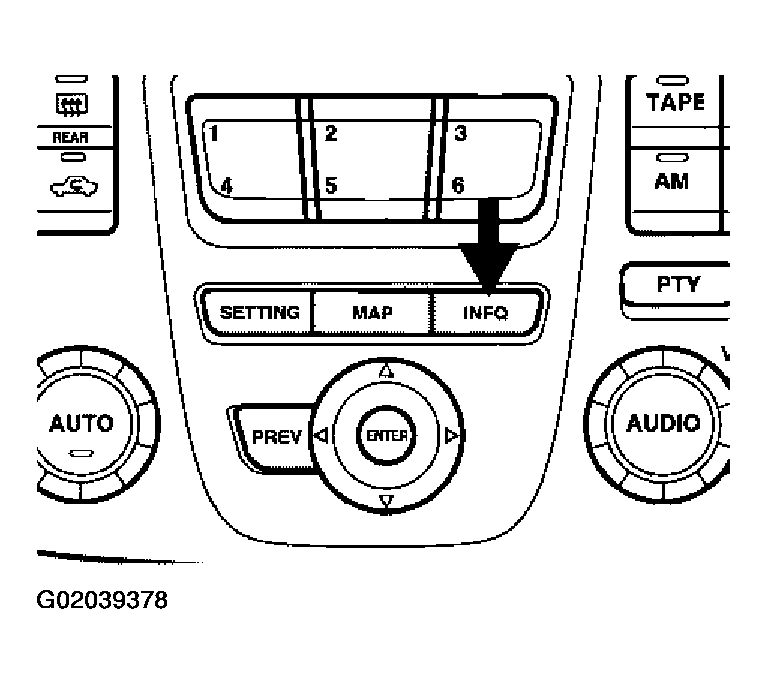

Fig 1: Pressing INFO Switch To Display Vehicle Information Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "Trip Computer", "Fuel Economy", "Maintenance" or "Tire Pressure".

Fig 2: Selecting Trip Computer, Fuel Economy, Maintenance; or Tire Pressure
Courtesy of NISSAN MOTOR CO., U.S.A.

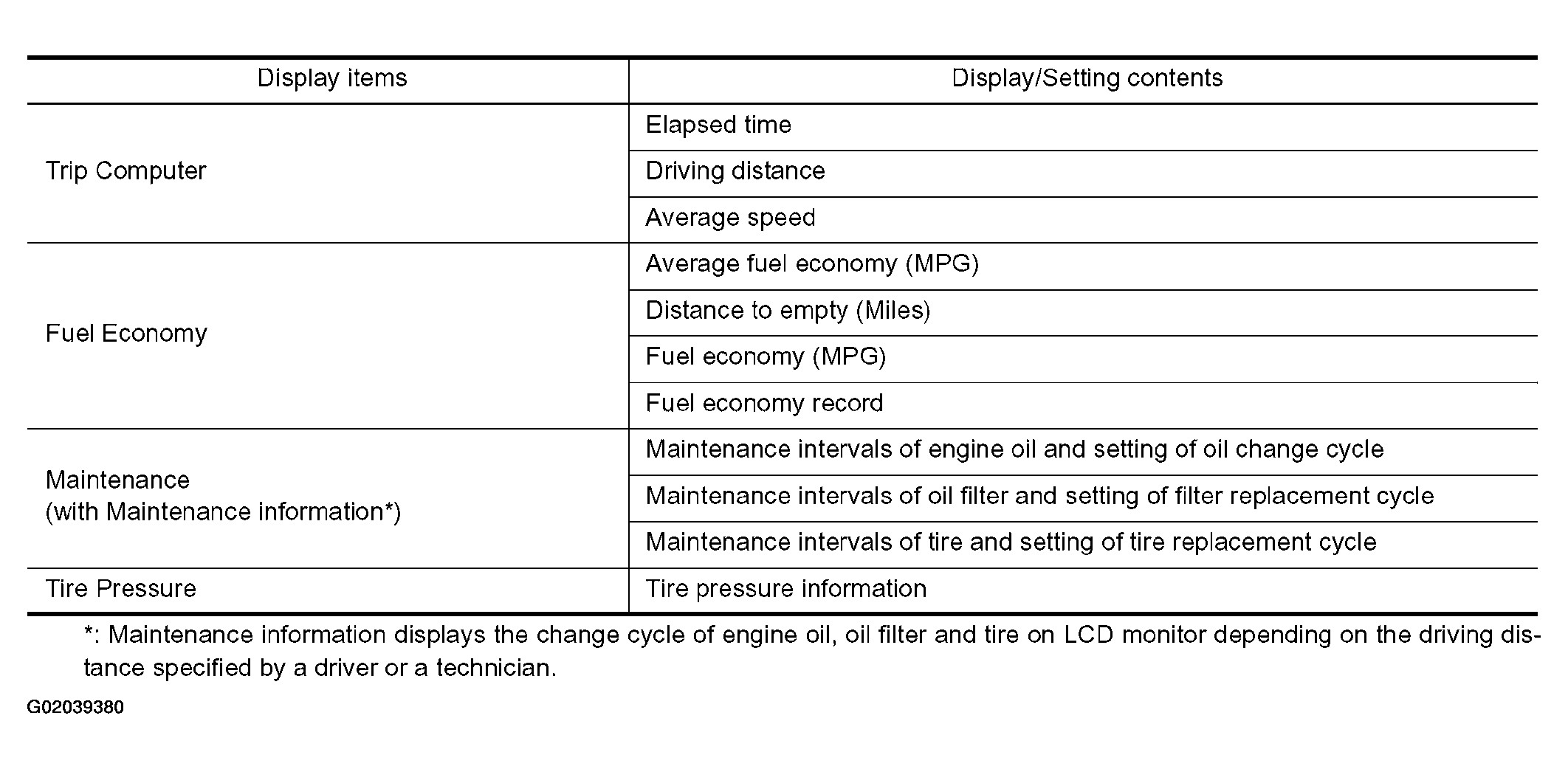

Fig 3: Display Settings
Courtesy of NISSAN MOTOR CO., U.S.A.
