Setting Of Vehicle Status: Notes

Setting of electric status can be changed by multifunction switch. The signal is sent to BCM through AV control unit to change vehicle electric system setting.
AV control unit is communicating with BCM and combination meter.

Press "SETTING" switch to display vehicle information display.

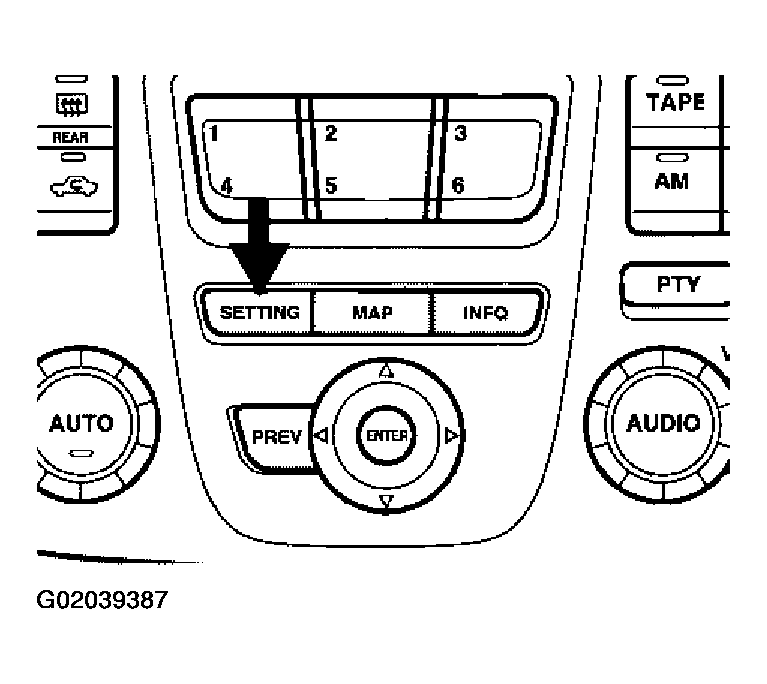

Fig 1: Pressing SETTING Switch To Display Vehicle Information Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "Vehicle Electronic System".

Fig 2: Vehicle Electronic System Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select a vehicle status shown on the display.
Adjustable vehicle status
- Lift Steering Column When Exiting Vehicle
- Adjust Driver Seat When Exiting Vehicle
- Illuminate Interior When Unlocking Vehicle
- Interior Lights Off Delay

  Fig 3: Adjusting Vehicle Status (1 Of 3)
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Sensitivity of Automatic Headlights
- Automatic Headlights Off Delay
- Key Remote Response - Horn/Lights
- Remote Custom Settings

  Fig 4: Adjusting Vehicle Status (2 Of 3)
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Return All Settings to Default

  Fig 5: Adjusting Vehicle Status (3 Of 3)
  Courtesy of NISSAN MOTOR CO., U.S.A.
