RGB Screen Is Rolling

CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect AV control unit and display connector.
3. Check continuity between AV control unit and ground.

  Fig 1: Continuity Specifications Between AV Control Unit And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check continuity between AV control unit and display.

  Fig 2: Continuity Specifications Between AV Control Unit And Display
  Courtesy of NISSAN MOTOR CO., U.S.A.

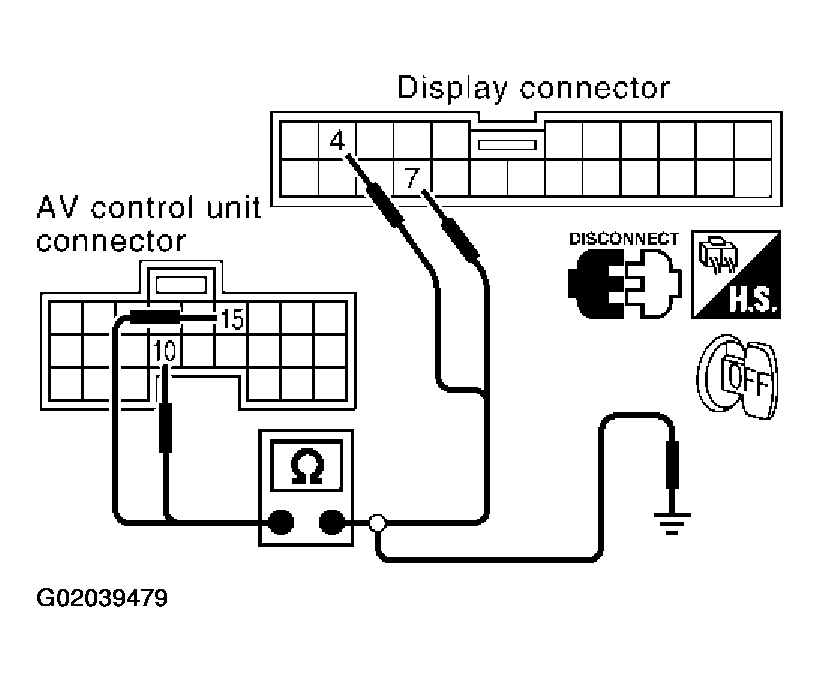

  Fig 3: Checking Continuity Between AV Control Unit And Display
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK >> GO TO 2.
2. NG >>
  - Check connector housings for disconnected or loose terminals.
  - Repair harness or connector.
CHECK RGB SYNCHRONIZING SIGNAL
1. Connect AV control unit and display connector.
2. Turn ignition switch ON.
3. Check voltage between AV control unit harness connector M78 terminal 15 (L/R) and 10.
  1. 15(L/R) - 10 : Refer to "TERMINALS AND REFERENCE VALUE FOR AV CONTROL UNIT ".
  Fig 4: Checking Voltage Between AV Control Unit Harness Connector M78 Terminal 15 (L/R) And 10
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK >> Replace display.
2. NG >> Replace AV control unit.
