Terminals and Reference Value for Multifunction Switch

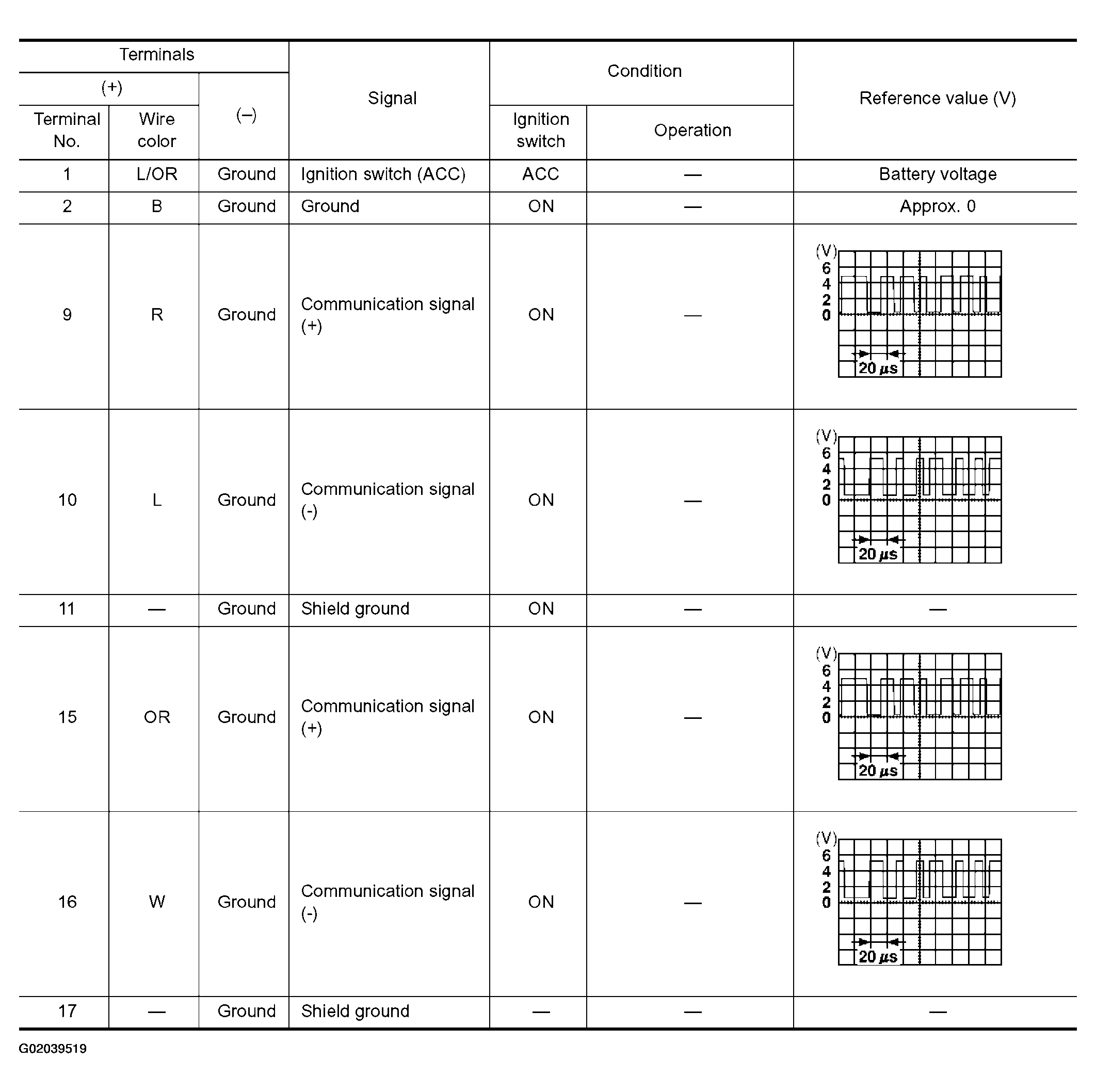

Fig 1: Terminals and Reference Value for Multifunction Switch

G02039519

Courtesy of NISSAN MOTOR CO., U.S.A.
