Vehicle Information System: Notes

AV and NAVI control unit is received vehicle information system of signals from combination meter.
AV and NAVI control unit is communicating with BCM and combination meter.

Press "INFO" switch to display vehicle information display.

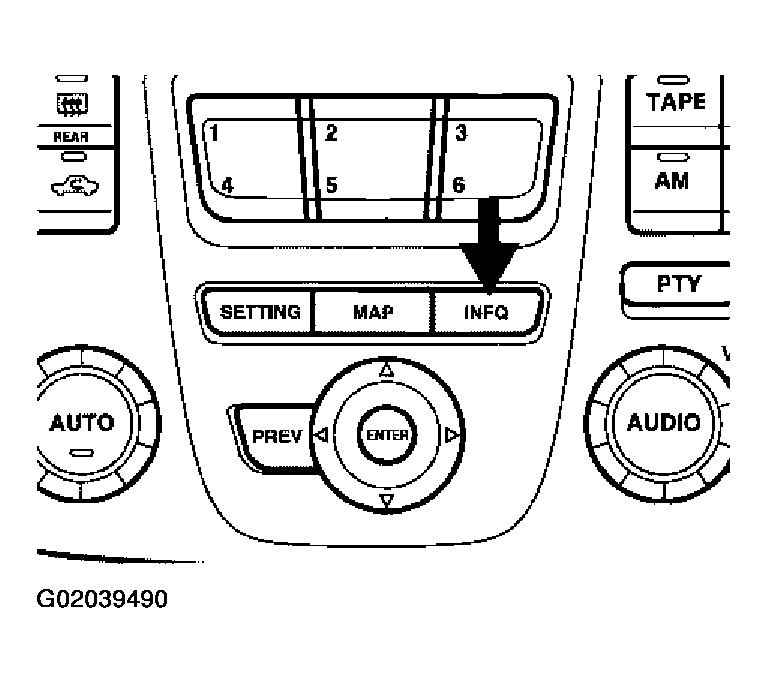

Fig 1: Pressing INFO Switch To Display Vehicle Information Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "Trip Computer", "Fuel Economy", "Maintenance" or "Tire pressure".

Fig 2: Trip Computer, Fuel Economy, Maintenance or Tire Pressure Display
Courtesy of NISSAN MOTOR CO., U.S.A.

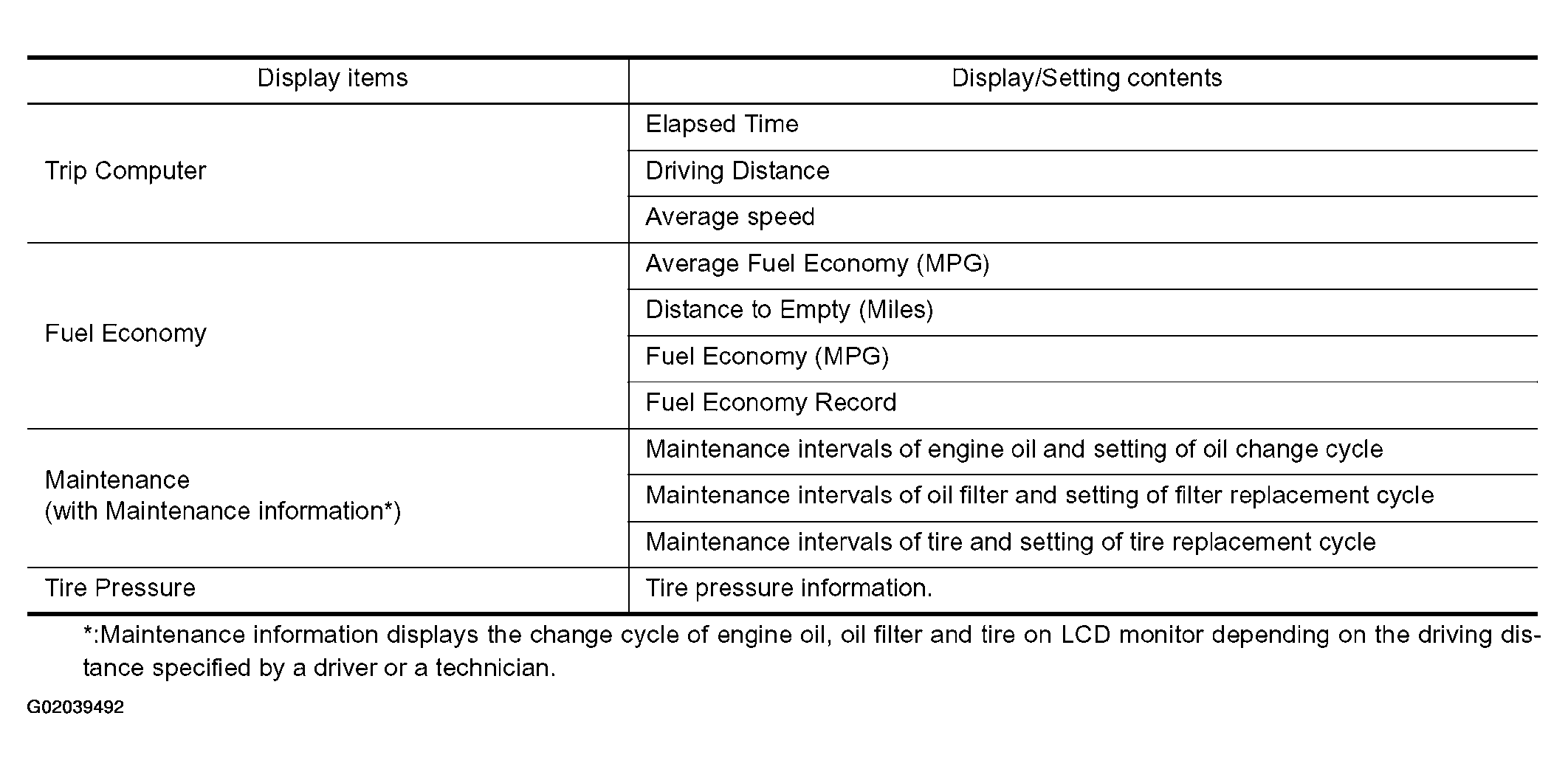

Fig 3: Display Items - Setting Contents
Courtesy of NISSAN MOTOR CO., U.S.A.
