Engine Compartment Junction & Relay Blocks

NOTE: For engine compartment fuse, fusible link and relay box locations, see Fig 1 .

Component Locations

Fuse, fusible link and relay block is located at right front of engine compartment. For component locations, see Fig 2 . For identification of protected circuits, see Fig 4 , Fig 5 and Fig 10 . For circuit wiring diagrams, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS article.
Fuse, fusible link and relay box is located at right front of engine compartment. For component locations, see Fig 3 . For identification of protected circuits, see Fig 4 -Fig 6 . For circuit wiring diagrams, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS article.

Fig 1: Locating Engine Compartment Fuse, Fusible Link & Relay Boxes

G00150835

Courtesy of NISSAN MOTOR CO., U.S.A.

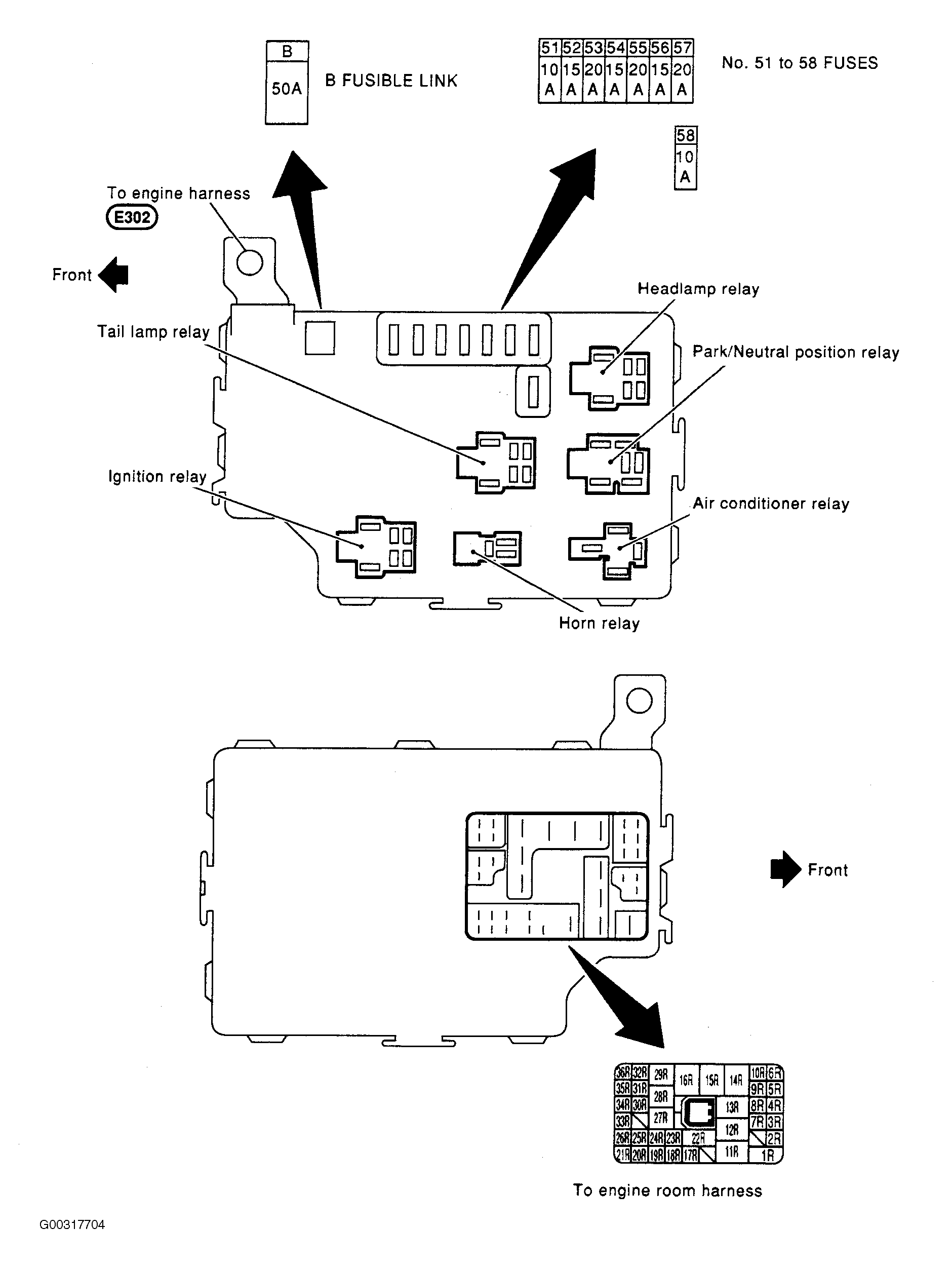

Fig 2: Locating Fuse Block Components

G00317704

Courtesy of NISSAN MOTOR CO., U.S.A.

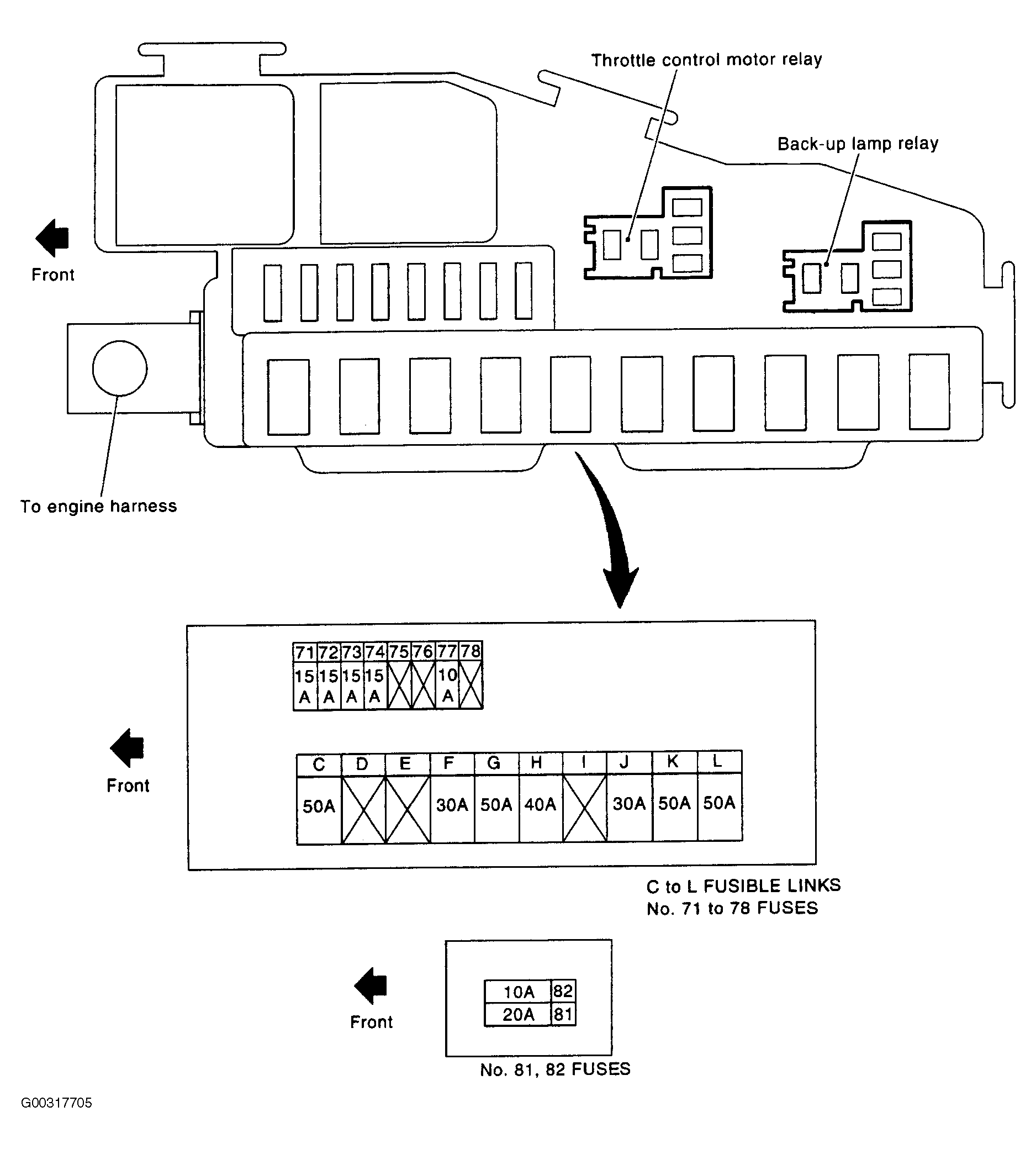

Fig 3: Locating Relay Box Components

G00317705

Courtesy of NISSAN MOTOR CO., U.S.A.

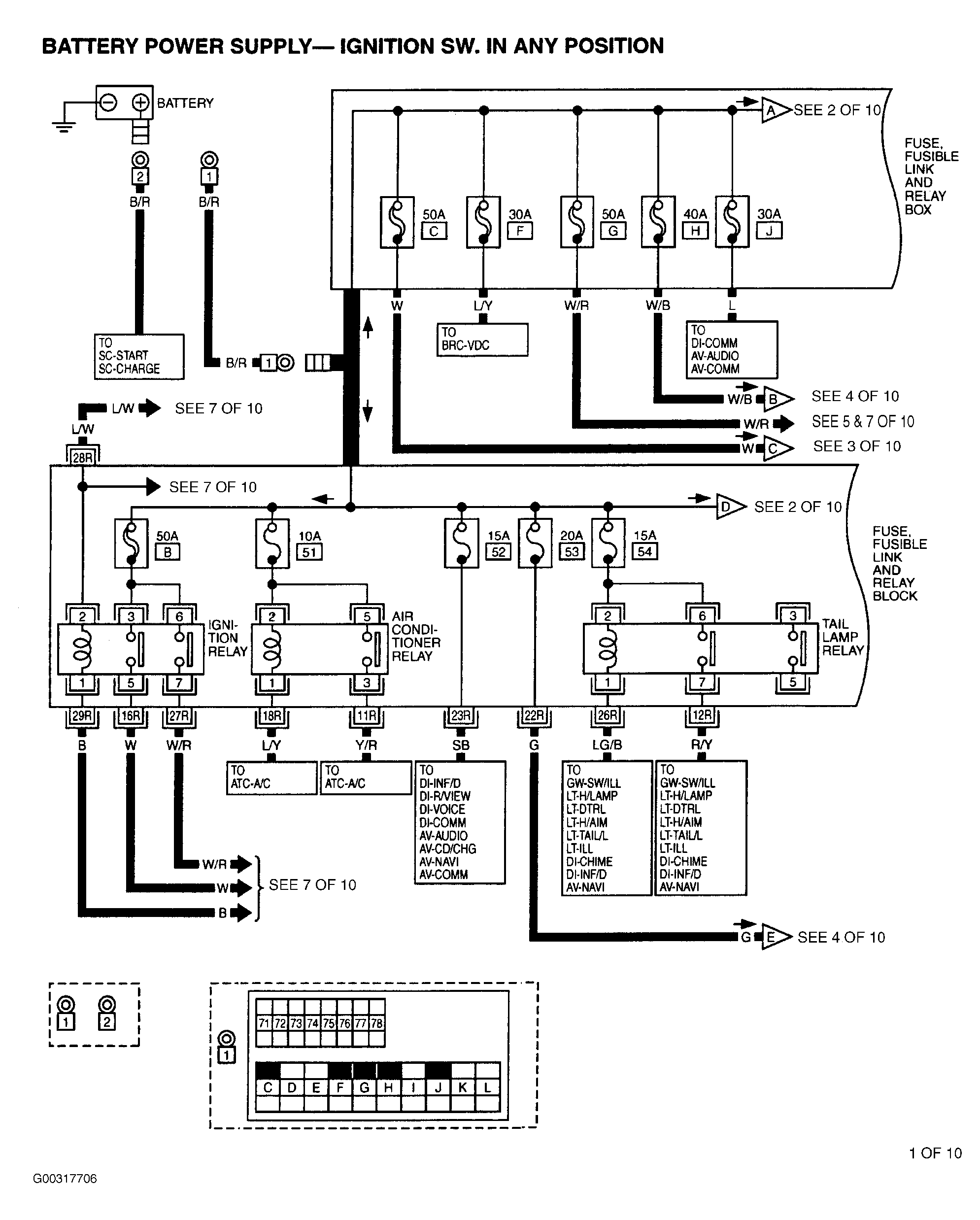

Fig 4: Identifying Circuit Protection Components (1 Of 10)

G00317706

Courtesy of NISSAN MOTOR CO., U.S.A.

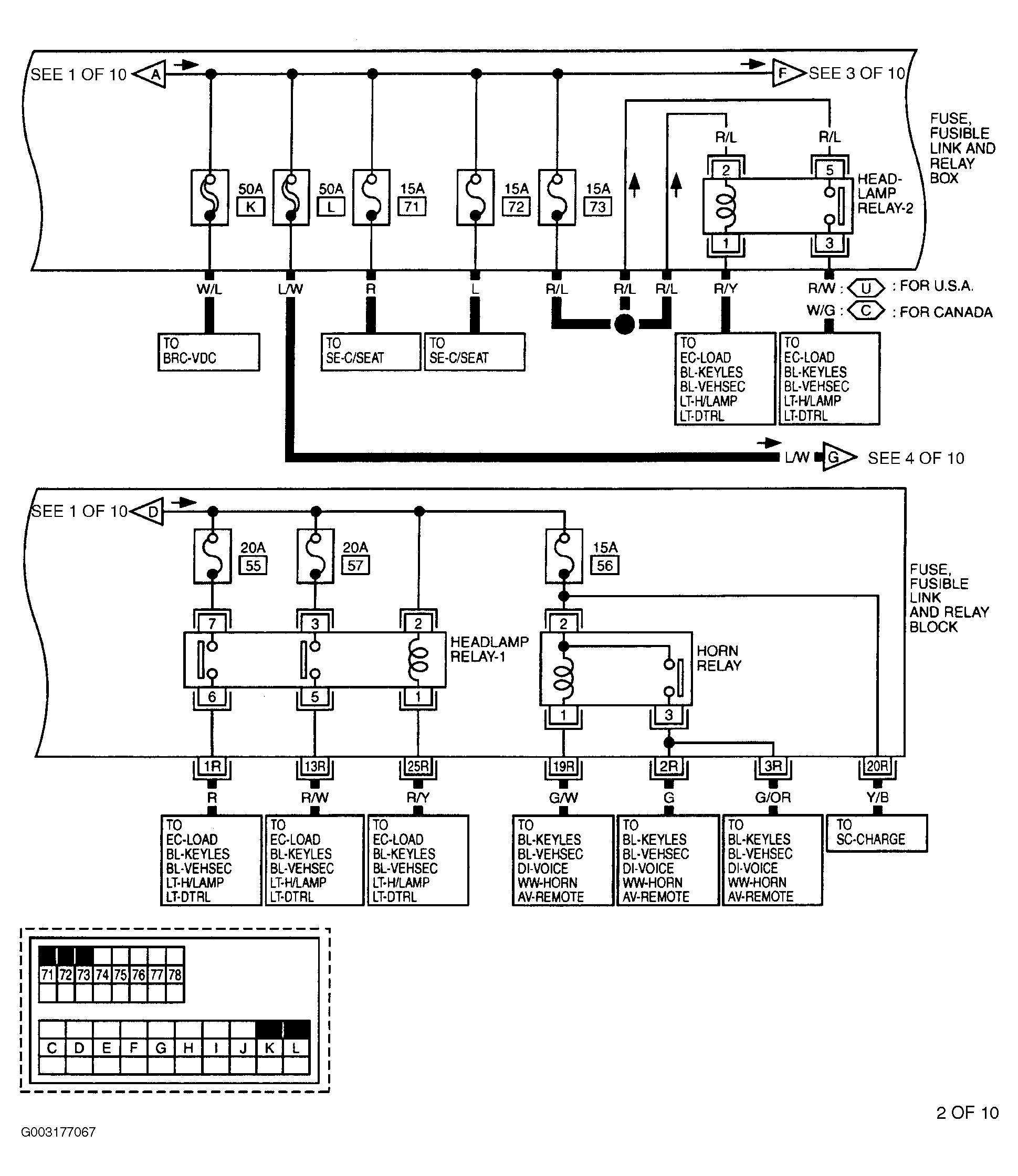

Fig 5: Identifying Circuit Protection Components (2 Of 10)

G00317707

Courtesy of NISSAN MOTOR CO., U.S.A.

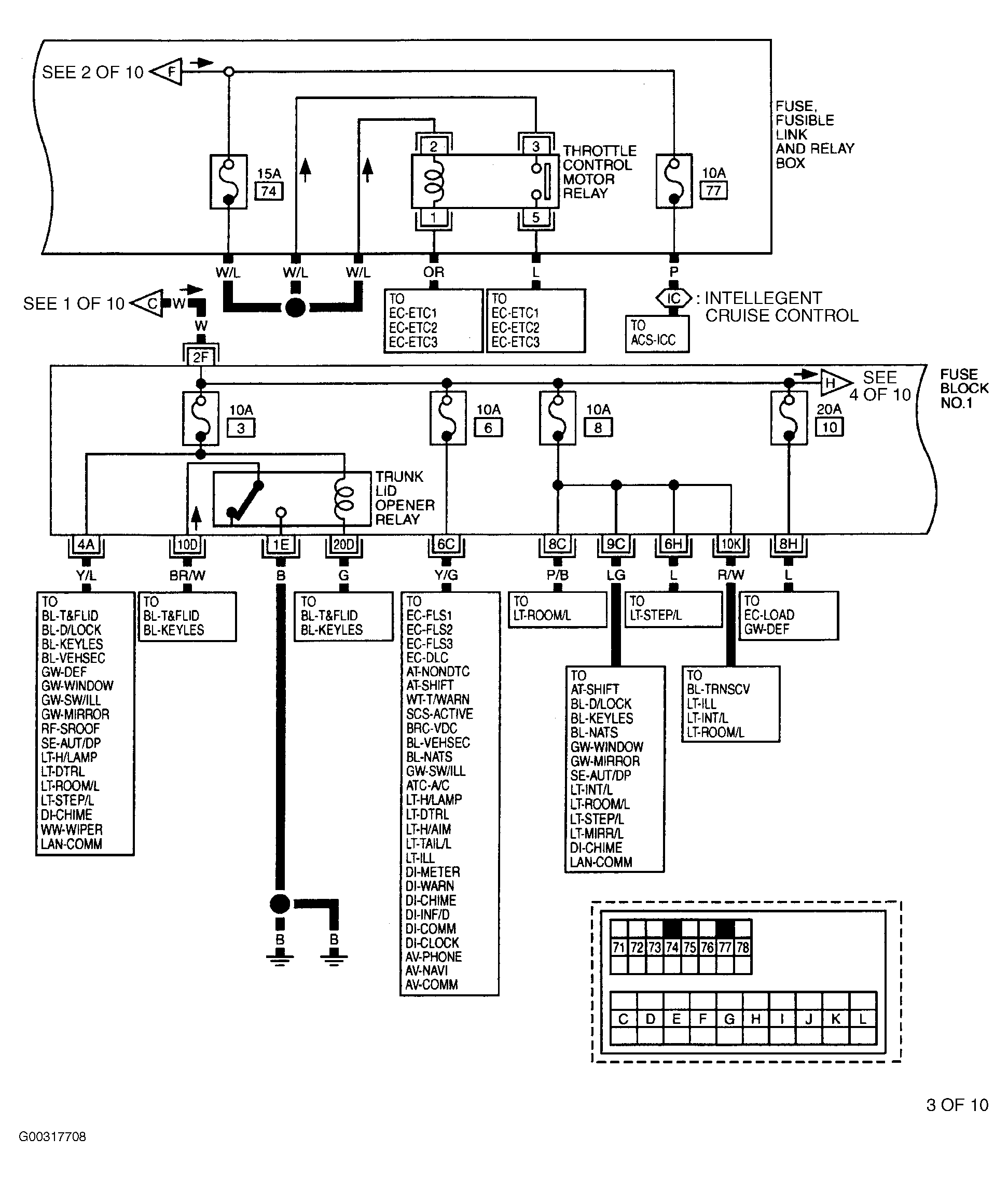

Fig 6: Identifying Circuit Protection Components (3 Of 10)

G00317708

Courtesy of NISSAN MOTOR CO., U.S.A.

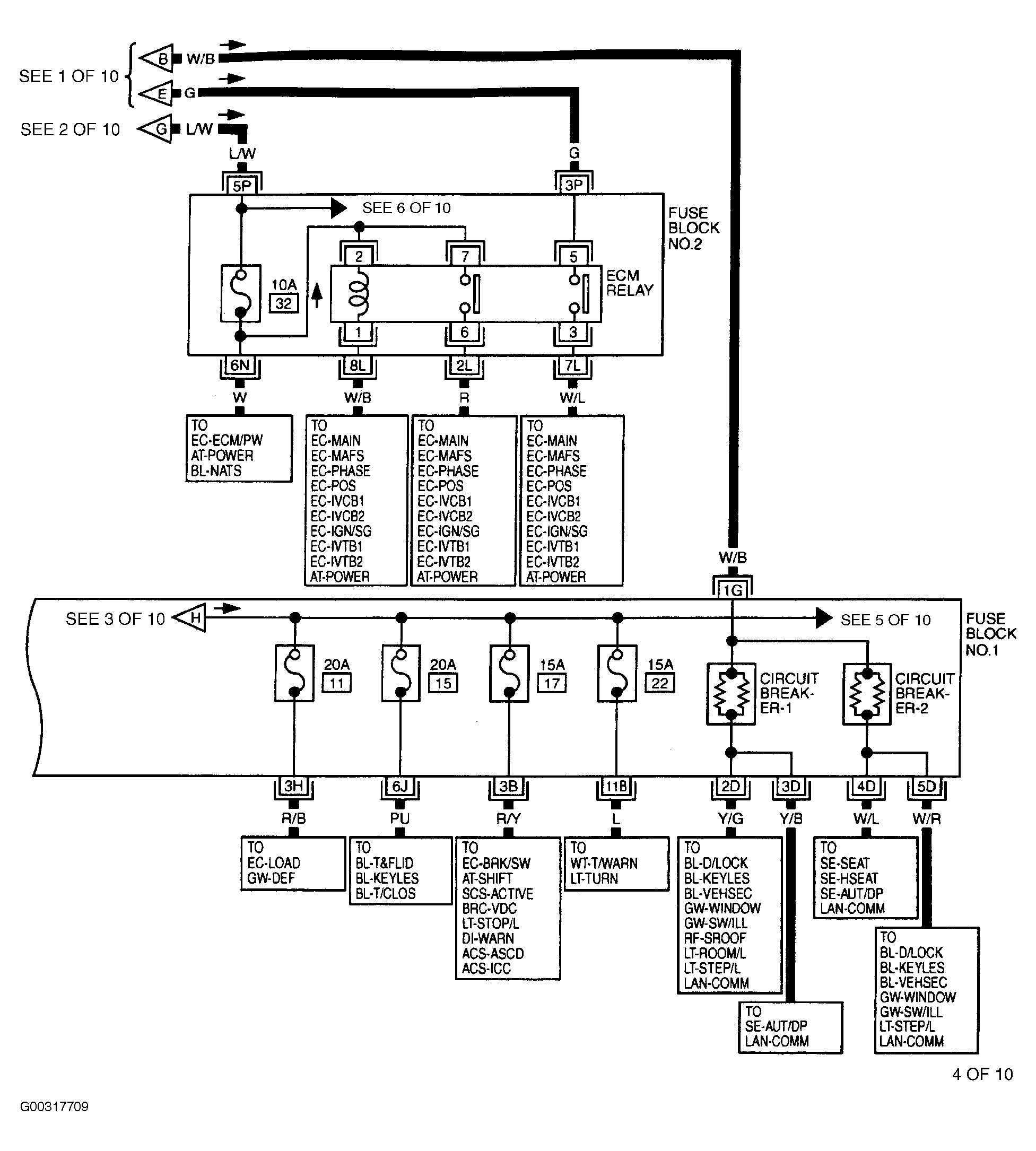

Fig 7: Identifying Circuit Protection Components (4 Of 10)

G00317709

Courtesy of NISSAN MOTOR CO., U.S.A.

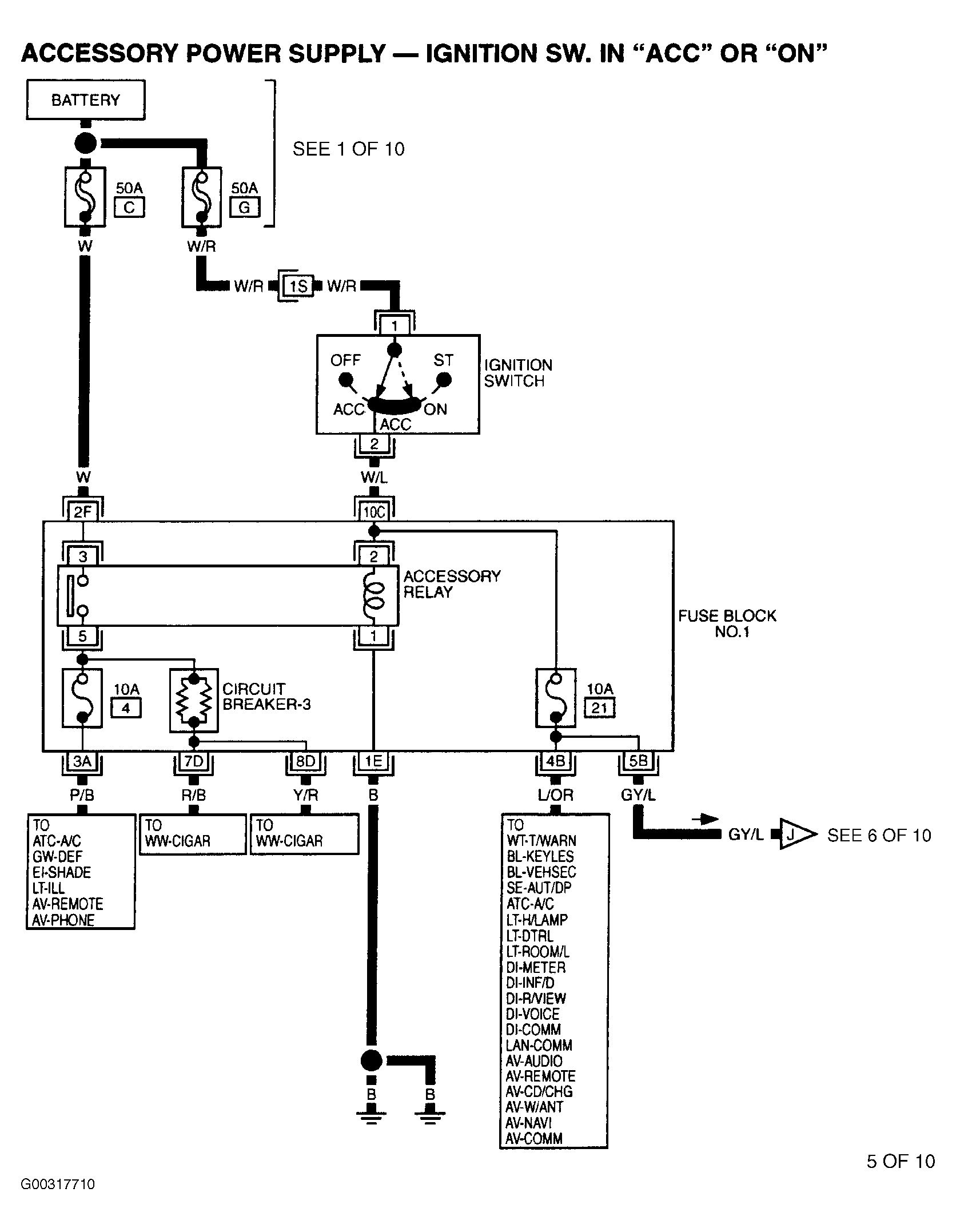

Fig 8: Identifying Circuit Protection Components (5 Of 10)

G00317710

Courtesy of NISSAN MOTOR CO., U.S.A.

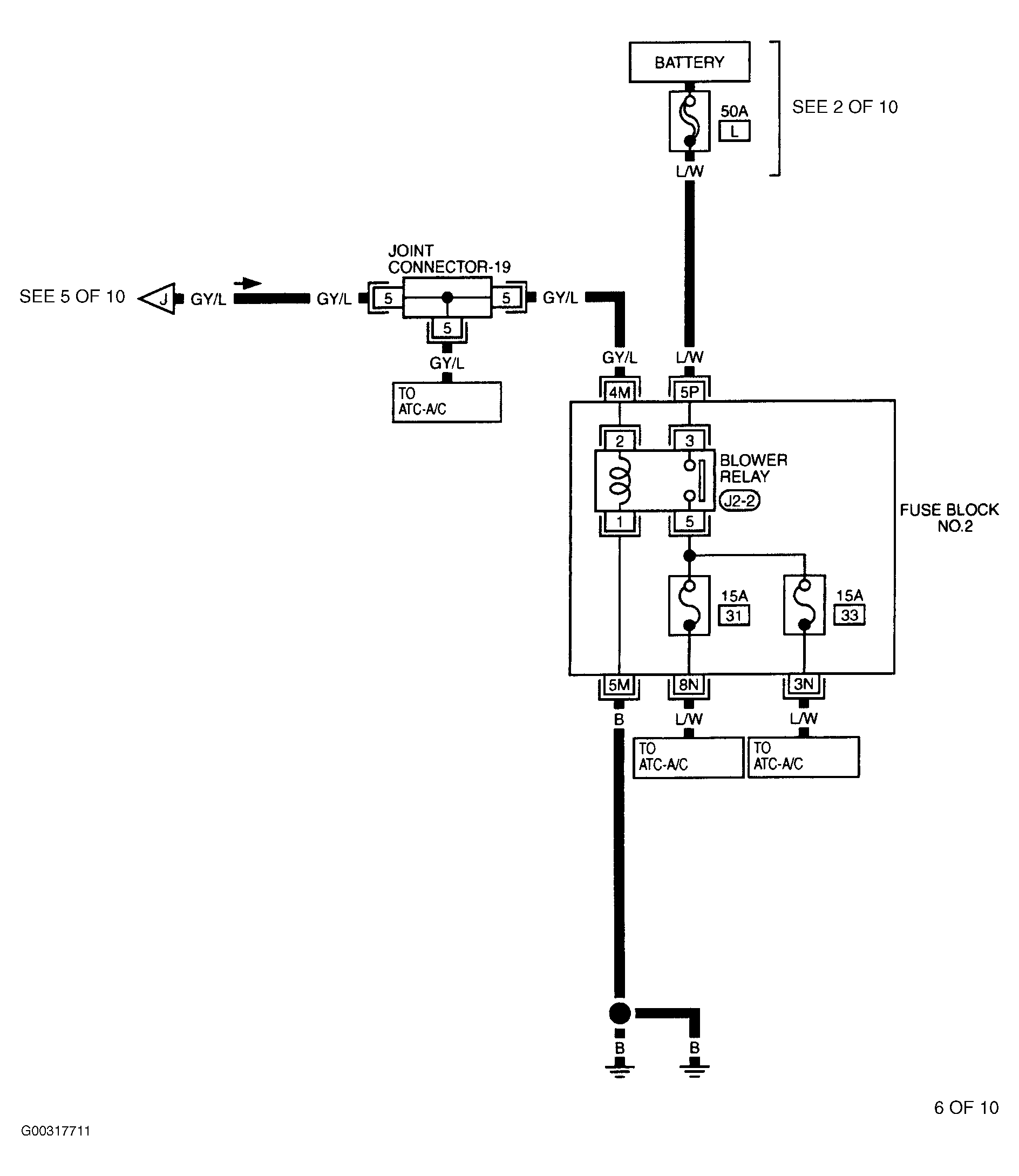

Fig 9: Identifying Circuit Protection Components (6 Of 10)

G00317711

Courtesy of NISSAN MOTOR CO., U.S.A.

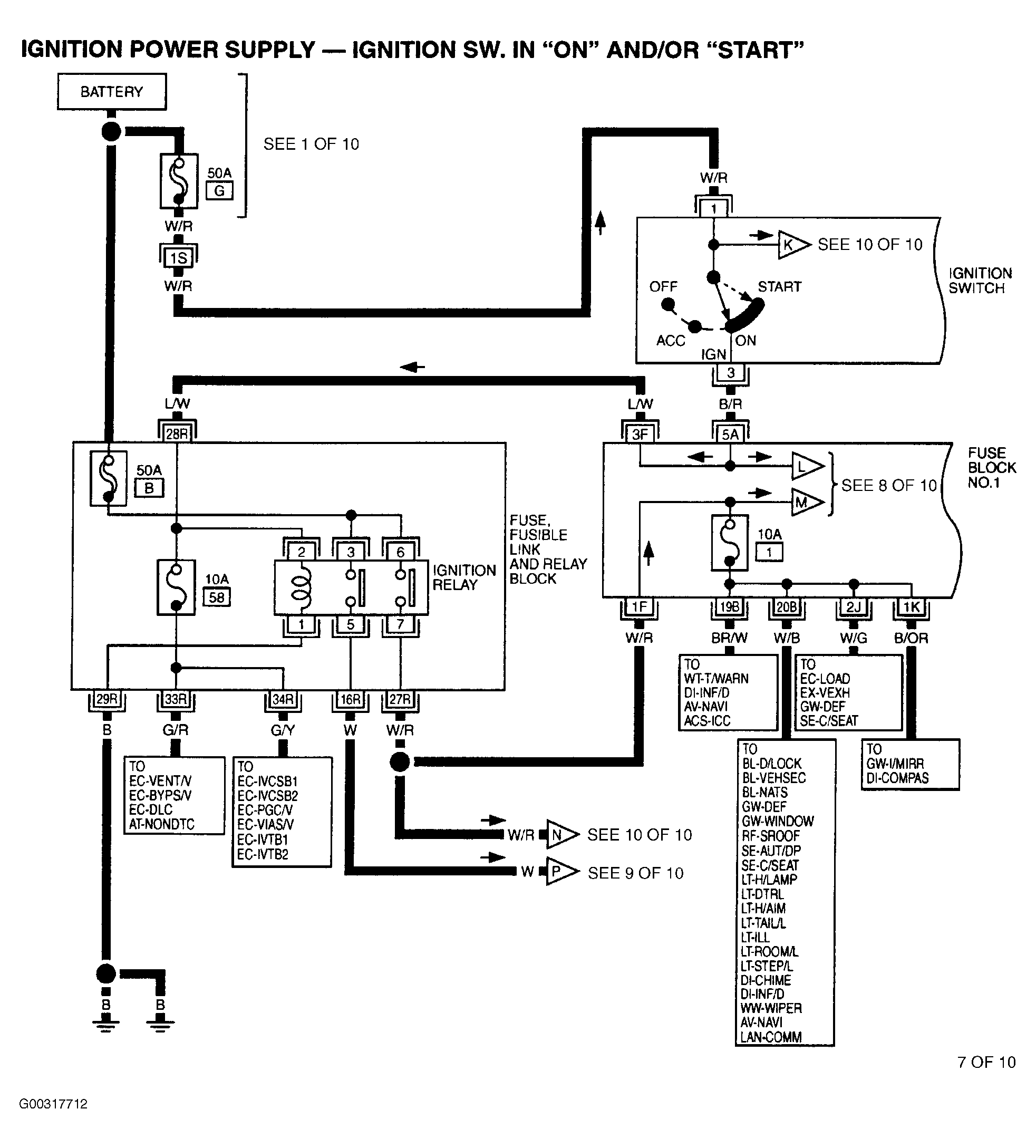

Fig 10: Identifying Circuit Protection Components (7 Of 10)

G00317712

Courtesy of NISSAN MOTOR CO., U.S.A.

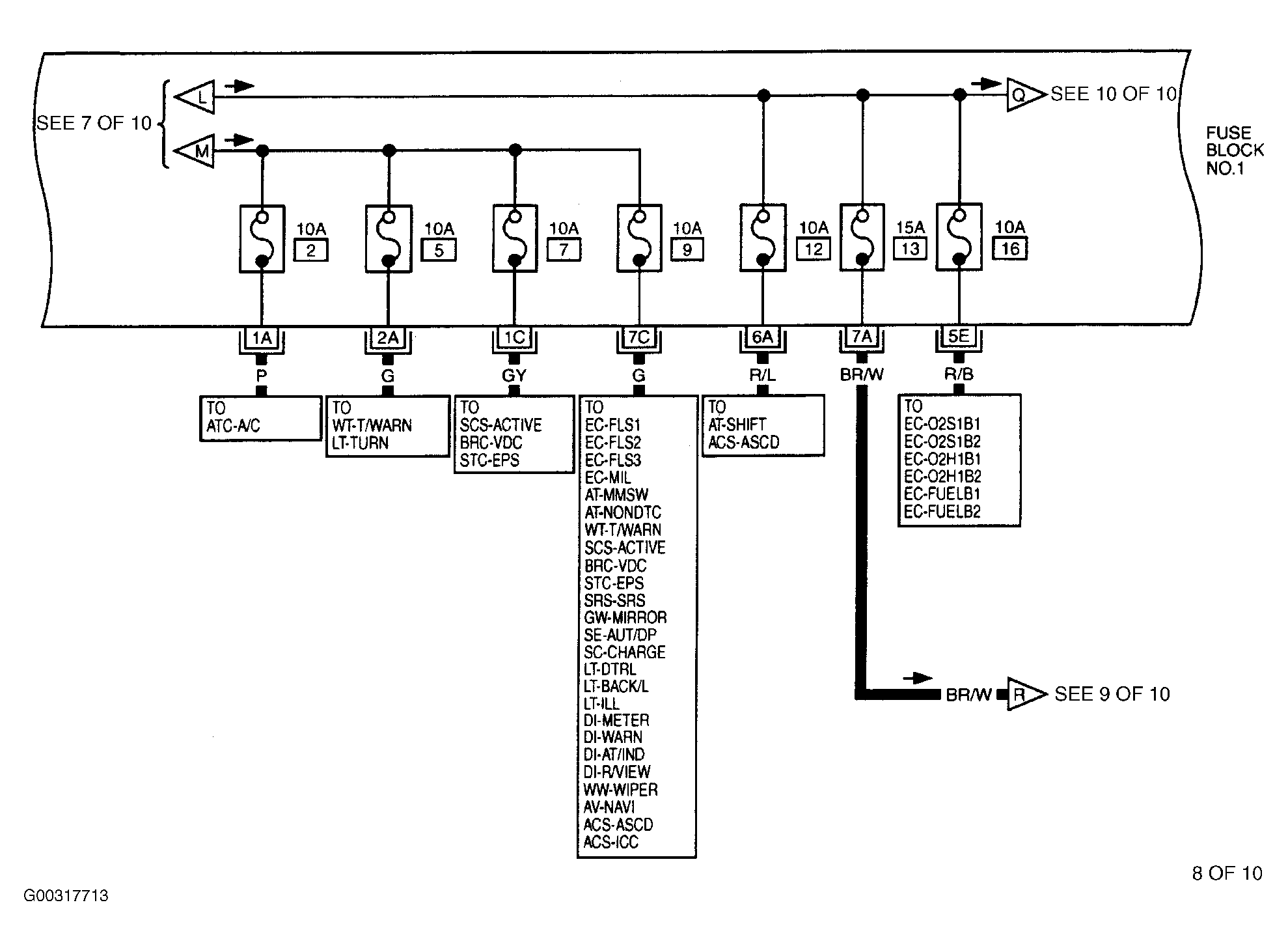

Fig 11: Identifying Circuit Protection Components (8 Of 10)

G00317713

Courtesy of NISSAN MOTOR CO., U.S.A.

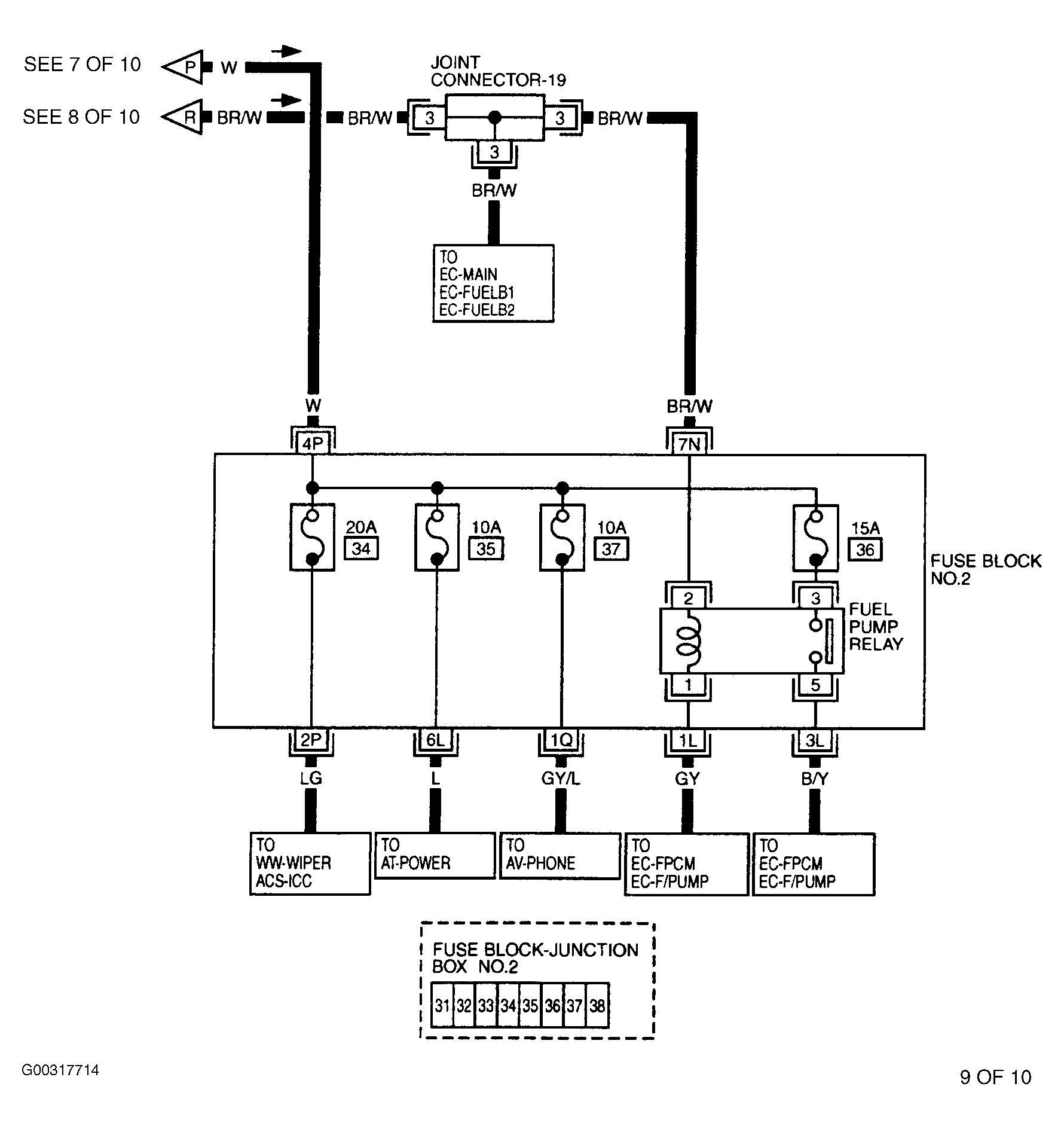

Fig 12: Identifying Circuit Protection Components (9 Of 10)

G00317714

Courtesy of NISSAN MOTOR CO., U.S.A.

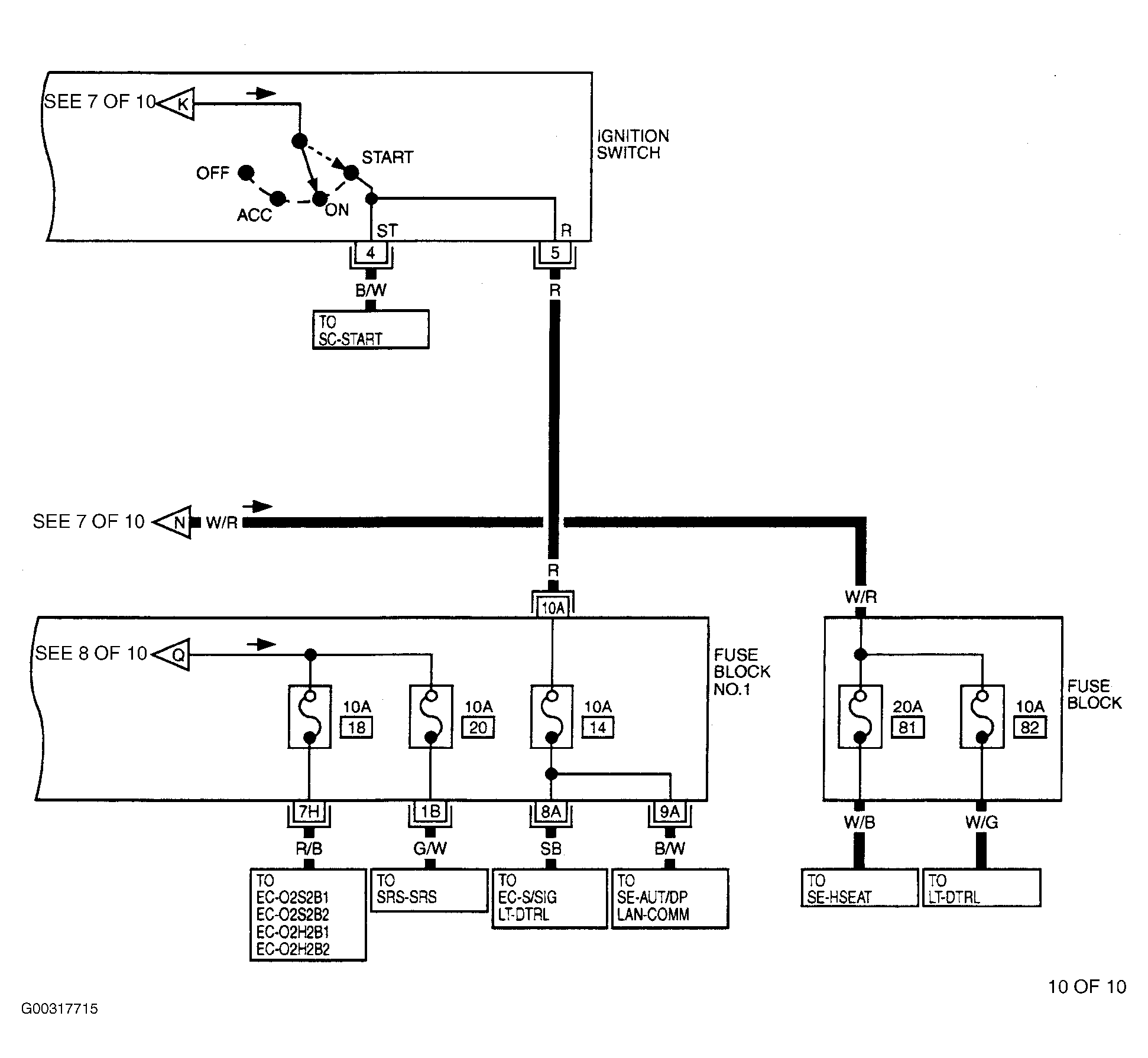

Fig 13: Identifying Circuit Protection Components (10 Of 10)

G00317715

Courtesy of NISSAN MOTOR CO., U.S.A.
