Removal and Installation: Removal
- Remove the front pillar garnish. Refer to "BODY SIDE TRIM ".
- Remove the headlining. Refer to "HEADLINING ".
- Remove the body side welt on the front pillar. Refer to "BODY SIDE TRIM ".
- Remove the windshield molding. Refer to "WINDSHIELD MOLDING ".
- Remove the cowl top cover. Refer to "COWL TOP ".
- Apply a protective tape around the windshield glass to protect the painted surface from damage.

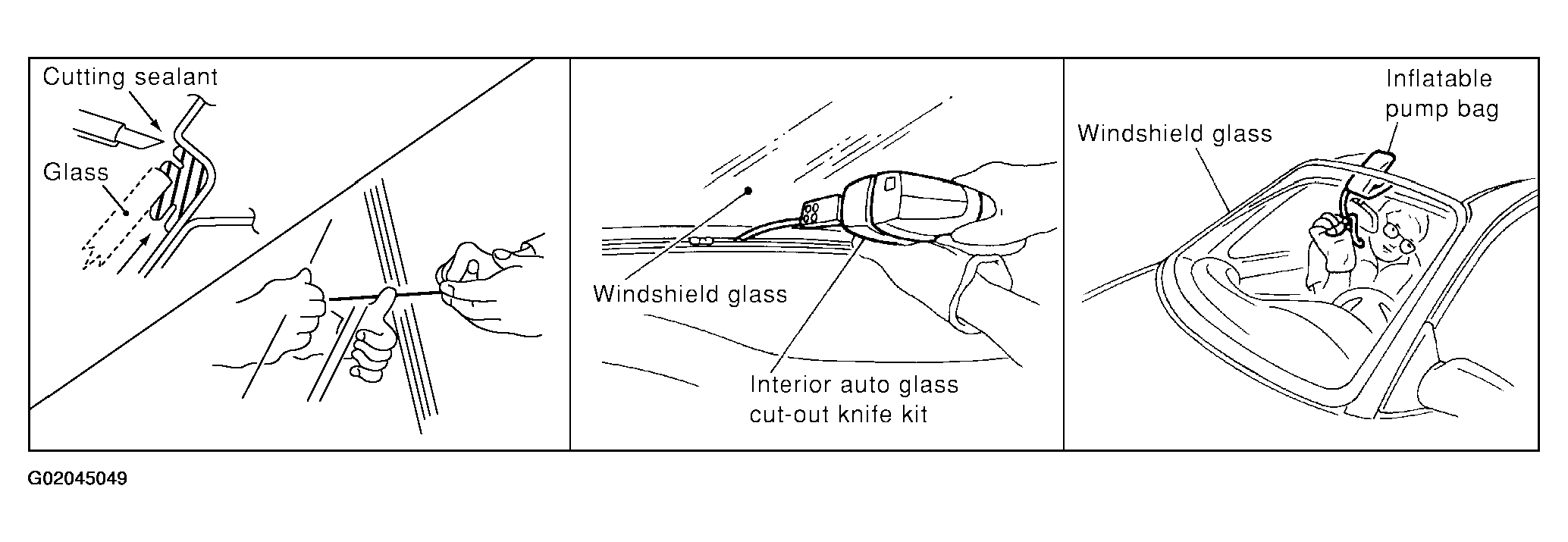

After removing moldings, remove glass using piano wire or power cutting tool and an inflatable pump bag.
- If a windshield glass is reused, mark the body and the glass with mating marks.
WARNING: When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent glass splinters from entering your eyes or cutting your hands.CAUTION: When a windshield glass is reused, do not use a cutting knife or power cutting tool.NOTE:- Be careful not to scratch the glass when removing.
- Do not set or stand the glass on its edge. Small chips may develop into cracks.
