Terminals and Reference Values for BCM

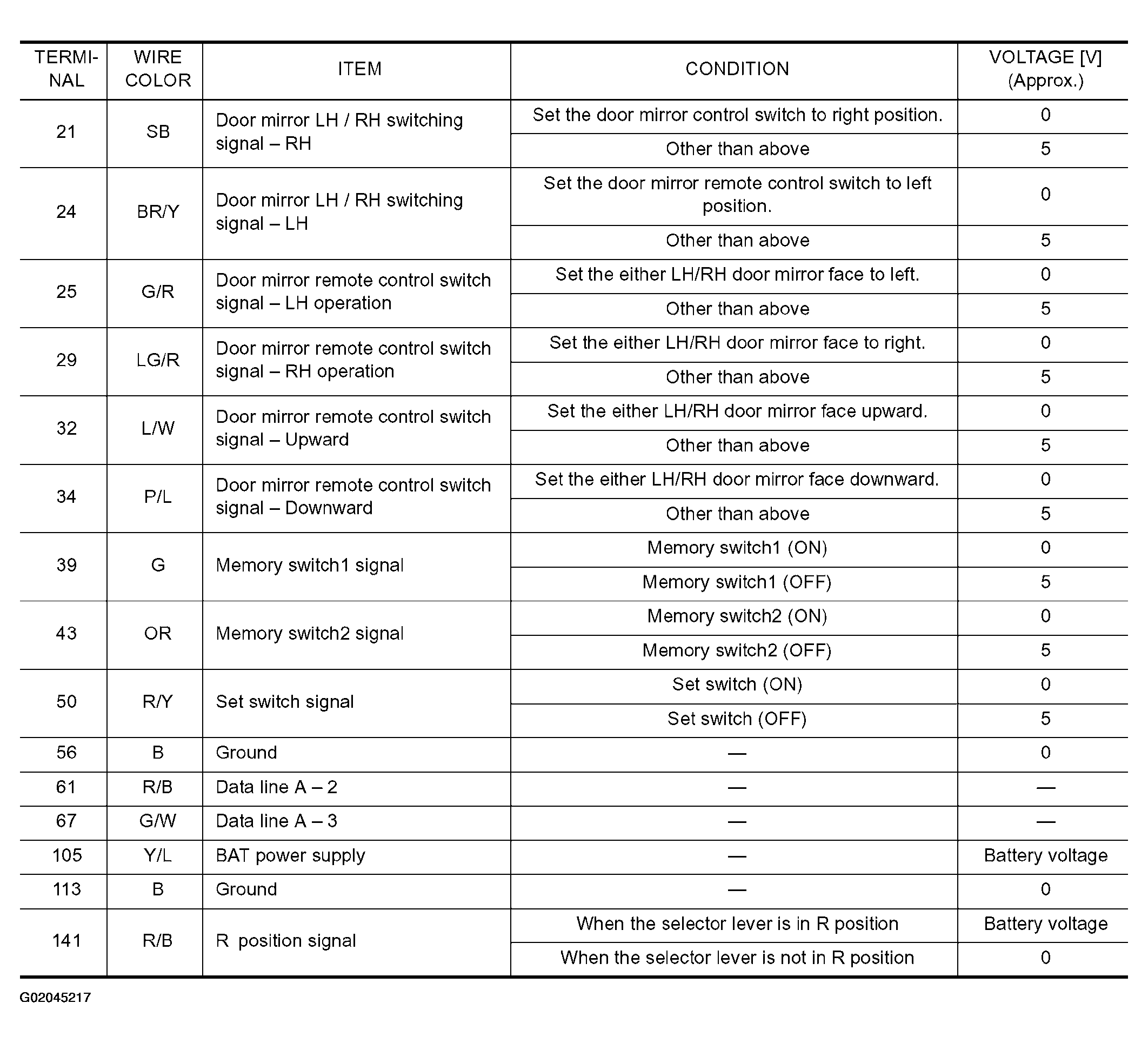

Fig 1: Terminals And Reference Value Chart (BCM)

G02045217

Courtesy of NISSAN MOTOR CO., U.S.A.
