Trouble Diagnoses Symptom Chart
Trouble Diagnoses Symptom Chart
Check that other systems using the signal of the following systems operate normally.

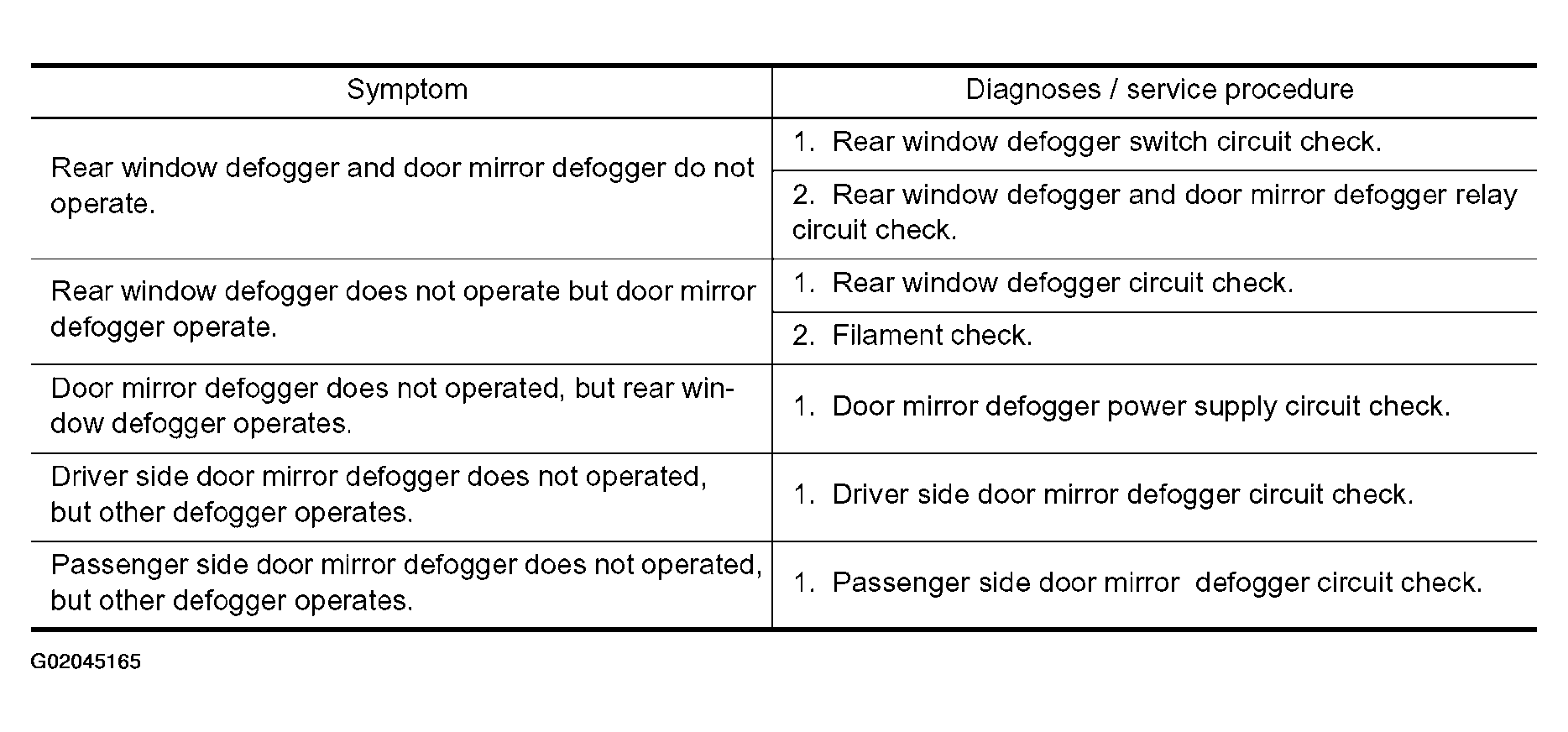

Fig 1: Trouble Diagnose Symptom Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
